LX Infinity T-Bar Linear Light

Equipped with extended end caps on both ends, the LX Infinity T-Bar Linear Light is ideal for T-Bar ceiling applications. Configure the LX Infinity T-Bar with any of the seven optic options, including Honeycomb, Wallwasher, Direct Lens, and Prismatic, to create the desired lighting effect. The LX T-Bar Linear Light is configurable on our Toolbox only.

Part of the LX Infinity collection

Please check availability with your Unios distributor
Product Summary

Available Models

Honeycomb

Honeycomb

  • LED Power:Up to 25W
  • Lumens:Up to 2283lm
  • Beam:80°
Configure
Prismatic

Prismatic

  • LED Power:Up to 25W
  • Lumens:Up to 2605lm
  • Beam:90°
Baffle

Baffle

  • LED Power:Up to 25W
  • Lumens:Up to 2635lm
  • Beam:100°
Louvre

Louvre

  • LED Power:Up to 25W
  • Lumens:Up to 2701lm
  • Beam:90°
Opal

Opal

  • LED Power:Up to 25W
  • Lumens:Up to 2978lm
  • Beam:100°
Wallwasher

Wallwasher

  • LED Power:Up to 25W
  • Lumens:Up to 3246lm
  • Beam:50°
Direct Lens

Direct Lens

  • LED Power:Up to 25W
  • Lumens:Up to 3535lm
  • Beam:60°

Specifications

Finishes

  • Textured White
  • Textured White/Black

Colour rendering index (CRI)

  • 80+

Colour temperature

  • 2700K
  • 2700K-6500K
  • 3000K
  • 4000K

IP rating

  • IP40

Efficacy

  • Up to
    141.40lm/W

Control

  • Casambi Bluetooth
  • DALI
  • Phase-cut dimmable
  • Phase Pulse

SDCM

  • 3

LED Lifetime

  • >60,000h L80B10

Materials

  • Powder Coated Aluminium

Unified Glare Rating

  • <10
  • <19
  • <22

Warranty

  • 5 Years

Class

  • Class III

Resources

LX Infinity T-Bar Linear LightREVITZIP 2.1 MB

The definitive linear lighting solution

Powered by Tridonic, equipped with Samsung LED boards and configurable through LX Configurator, the range represents a new generation of tailor-made linear design with superior performance.

Low glare

Ensures minimal glare even when performing at high output for maximum visual comfort.

5-year warranty

With a 5-year warranty, have extra peace of mind when specifying this luminaire for your project.

Lasting lifetime

Offers a lasting lifetime and ensures the specified luminaire's performance is consistent until the end of the service life.

Infinite configurations

As part of the LX Infinity Collection, the LX Infinity Direct Linear Light is designed for visual comfort and engineered for performance. Configurable with 2 finishes, 4 mounting options, 7 optics and 6 fundamental shapes, the combinations are endless with the LX Infinity Direct Linear Light.

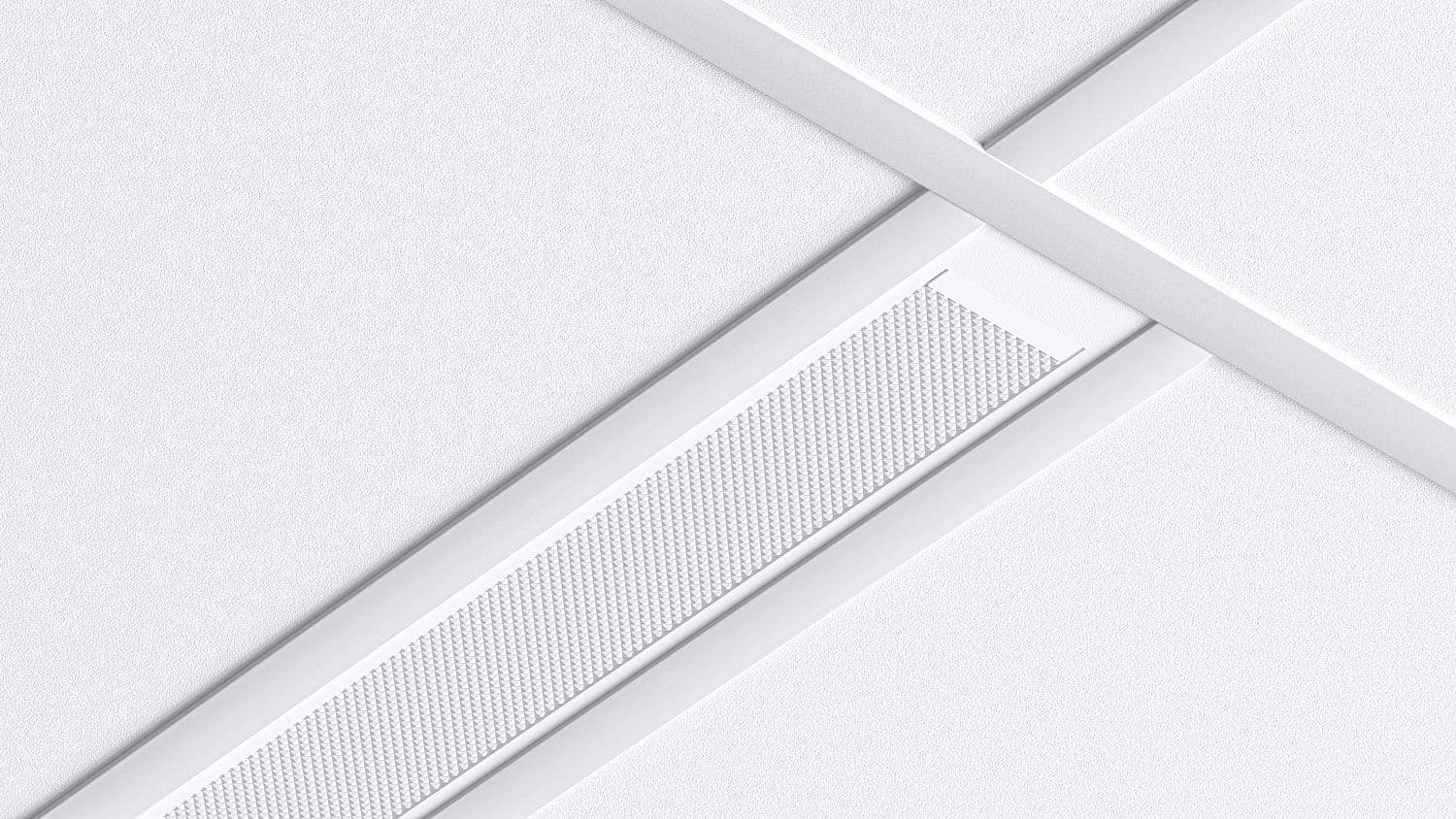

Designed for T-Bar applications

Available in Textured White, comes with extended end caps on both ends and is equipped with a range of optic options, the LX Infinity T-Bar version is an ideal option for T-Bar ceiling applications.


Honeycomb

The distinctive honeycomb optics layer over an opal diffuser to provide a unique aesthetic and reduced glare from all angles.


Louvre

Moulded from polycarbonate, the Louvre optic features spaced louvres layer over an opal diffuser, allowing uninterrupted light distribution with minimised glare.


Direct Lens

The precise lens produces a 60° beam for a light source that maximises horizontal illuminance and minimises light spillage.


Wallwasher

The wallwasher lens allows the LX Infinity to produce an even and precise 50° beam of asymmetric light distribution when directed toward a wall.


Baffle

As a Signature Optic, the opal diffuser is recessed into the baffle trim, reducing glare by removing direct line of sight.


Prismatic

As one of seven optic options, the prismatic optic is a unique three-layer construction that reduces glare and creates a dot-free appearance while providing visual comfort.


Opal

As one of seven optic options, the classic opal diffuser is recessed into the baffle trim, reducing glare by removing the direct line of sight.


Crafted in Australia

The linear profile is precisely cut to your specification and fabricated with LED strips, optics and leads in our Perth-based facilities, allowing significantly shorter lead times.

Casambi

Pair the luminaire with Casambi Bluetooth for an effortless smart lighting system right in your smart devices.

Tunable white

Change colour temperatures throughout the day to assist the natural circadian rhythms with colour-tuning technology.

Perfect for

Perfect For - Aged Care.jpeg
Aged Care
