Cuadro Wall Light

The Cuadro Wall Light is defined by a minimalist architectural design and a wide light distribution. Available in 4 models, including vandal-proof options equipped with vandal and corrosion-resistant screws, this highly efficient luminaire offers installation flexibility and peace of mind when installed in pathway applications.

Part of the Home Collection

Please check availability your Unios distributor
Product Summary

Available Models

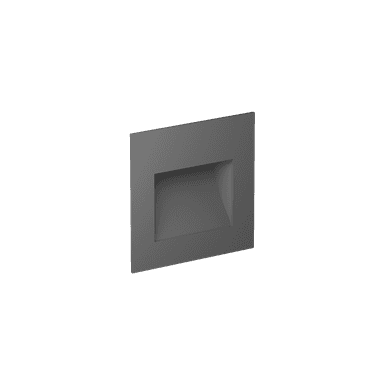

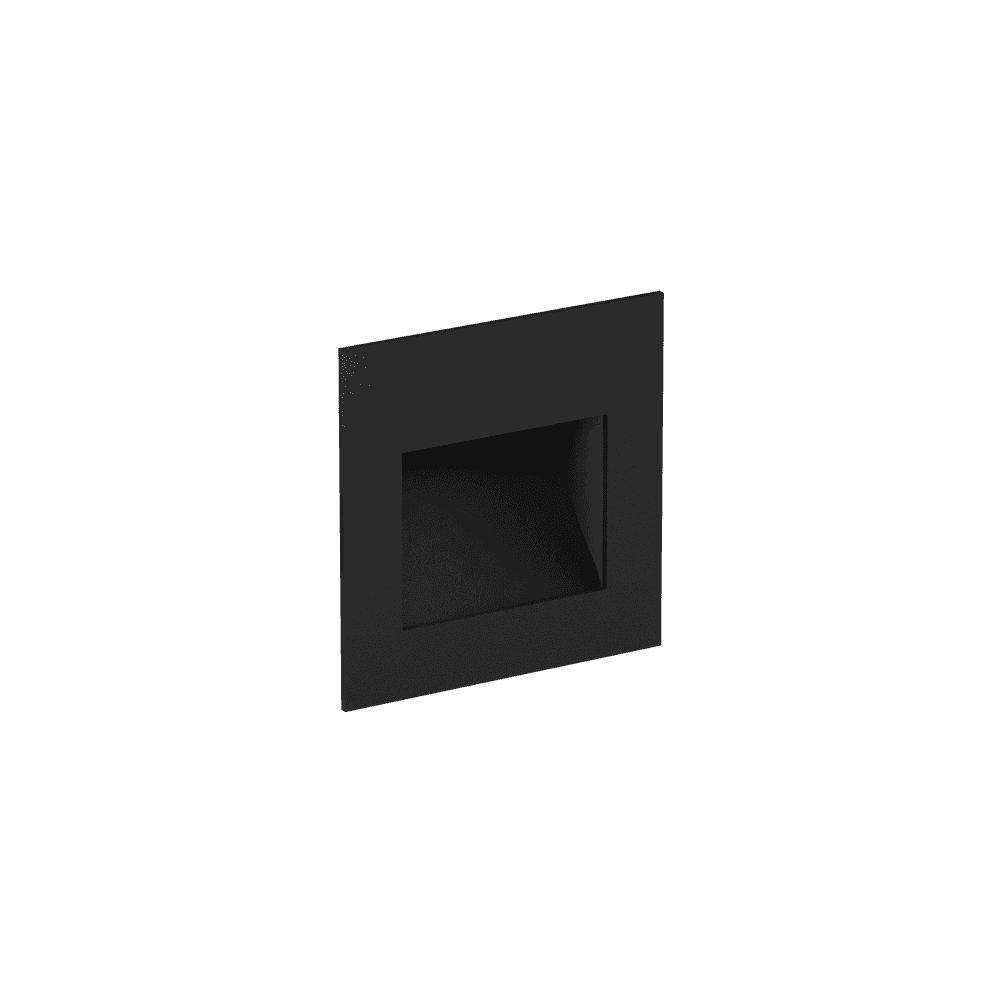

Small

  • LED Power:Up to 2W
  • Lumens:Up to 62lm
  • Beam:90°
Configure

Small (Vandal Proof)

  • LED Power:Up to 2W
  • Lumens:Up to 62lm
  • Beam:90°

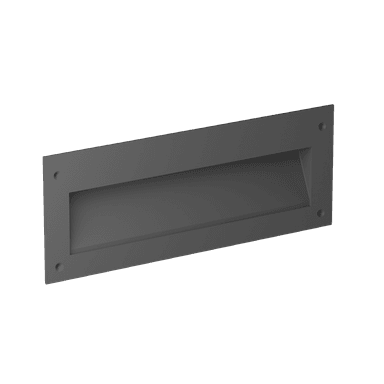

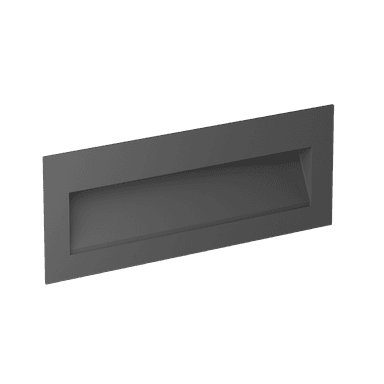

Large

  • LED Power:Up to 8W
  • Lumens:Up to 383lm
  • Beam:90°

Large (Vandal Proof)

  • LED Power:Up to 8W
  • Lumens:Up to 383lm
  • Beam:90°

Specifications

Finishes

  • Textured Black
  • Textured Grey
  • Textured White

Colour rendering index (CRI)

  • 80+

Colour temperature

  • 3000K
  • 4000K

IP rating

  • IP65

Efficacy

  • Up to
    47.88lm/W

Control

SDCM

  • 3

LED Lifetime

  • >54,000h L70B10

Materials

  • Powder Coated Aluminium
  • PVC

Warranty

  • 3 Years

Impact Protection (IK)

  • 10

Resources

Cuadro Wall Light3D ModelsZIP 661.4 KB

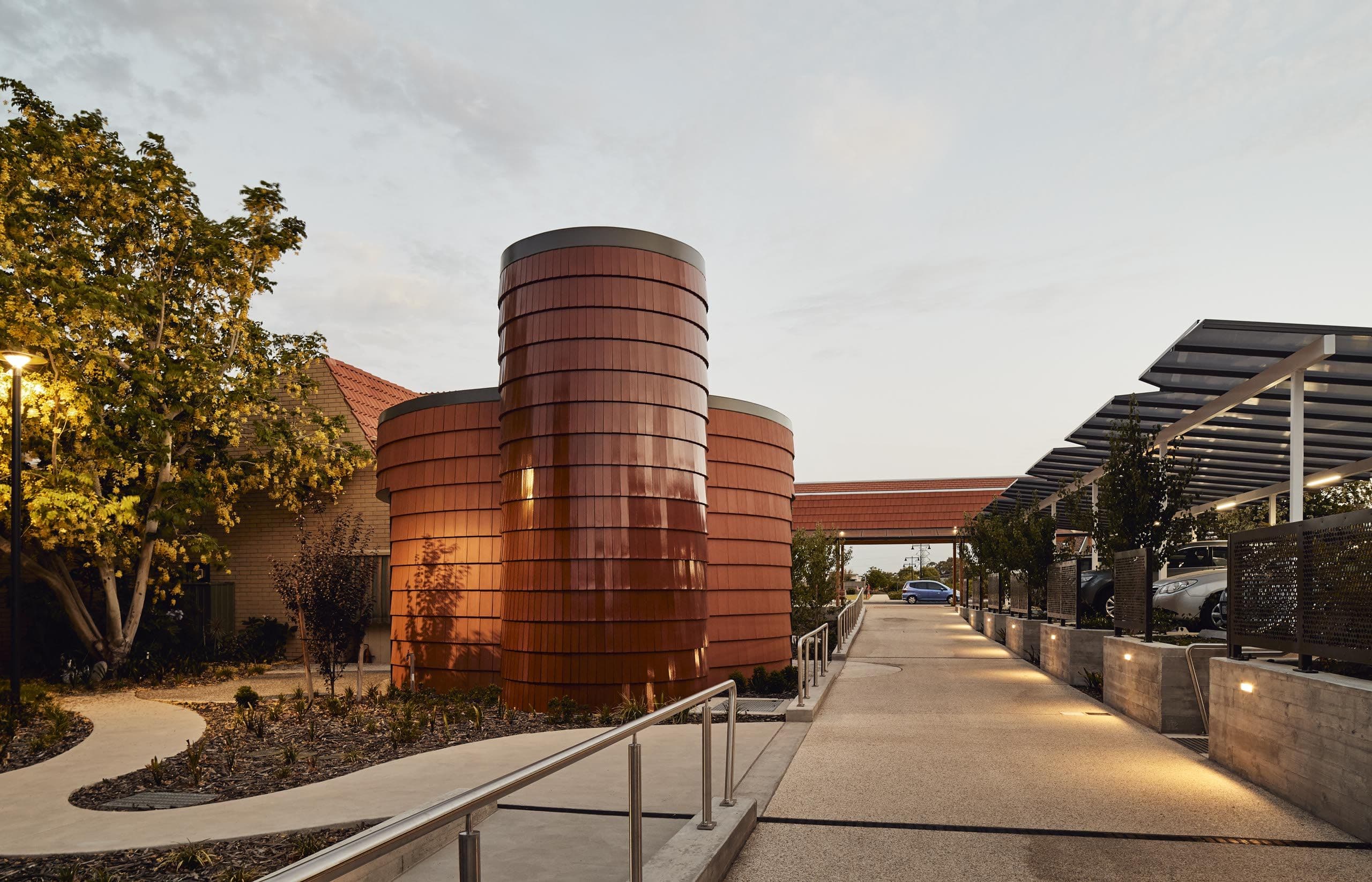

200116 Swan Care Ningana 1203.jpeg

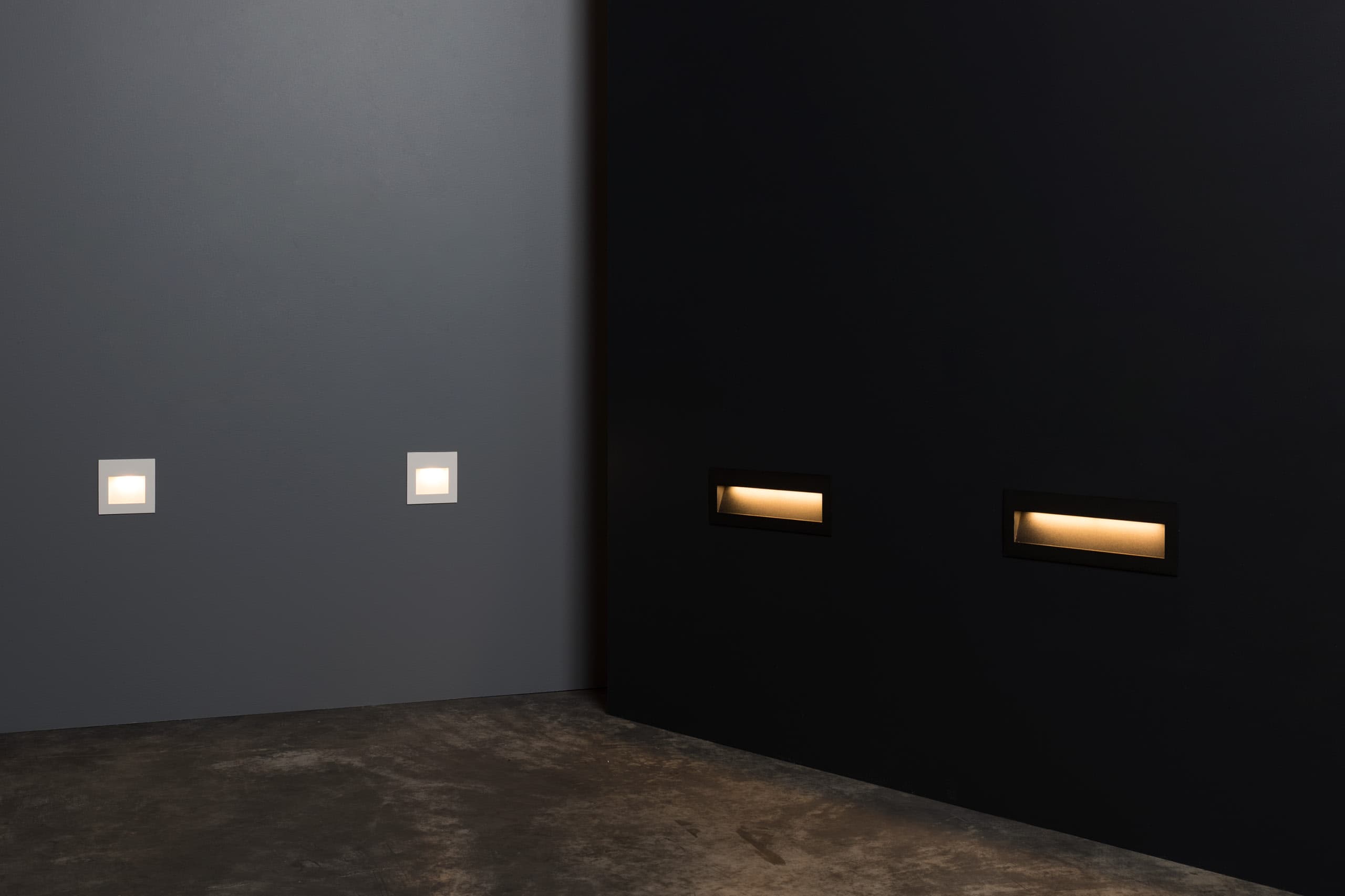

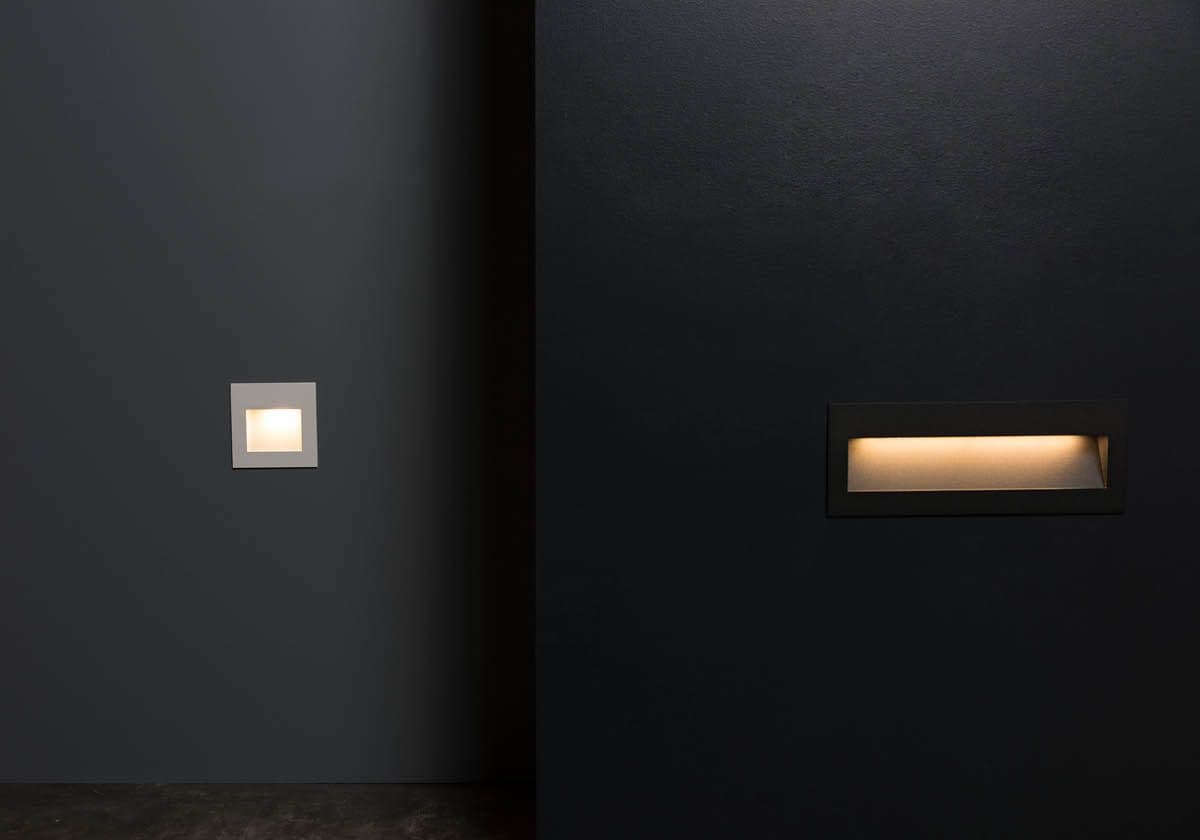

A subtle wide beam

The Cuadro is subtle and unobtrusive with its soft, indirect light. The luminaire's wide beam allows for the installation of fewer luminaires compared to traditional pathway lights.


Four models

Available in 4 models, including vandal-proof options, Cuadro Wall Light is well-equipped for lighting pathways in public and commercial spaces.


Universal design philosophy

Not only engineered for performance, but the entire Unios product range is also meticulously designed to follow a minimalistic approach, providing a timeless and contemporary touch to every project.


For all climates and environments

From the temperatures that our heatsinks can withstand to the coast-resilient powder coating of our finishes, our products are designed in Australia to suit all climates and environments.
