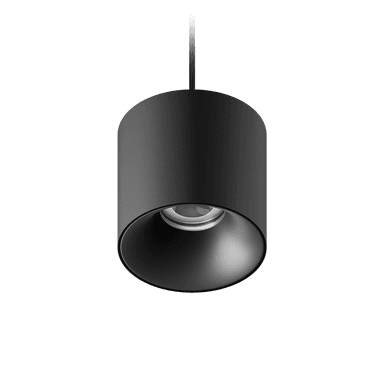

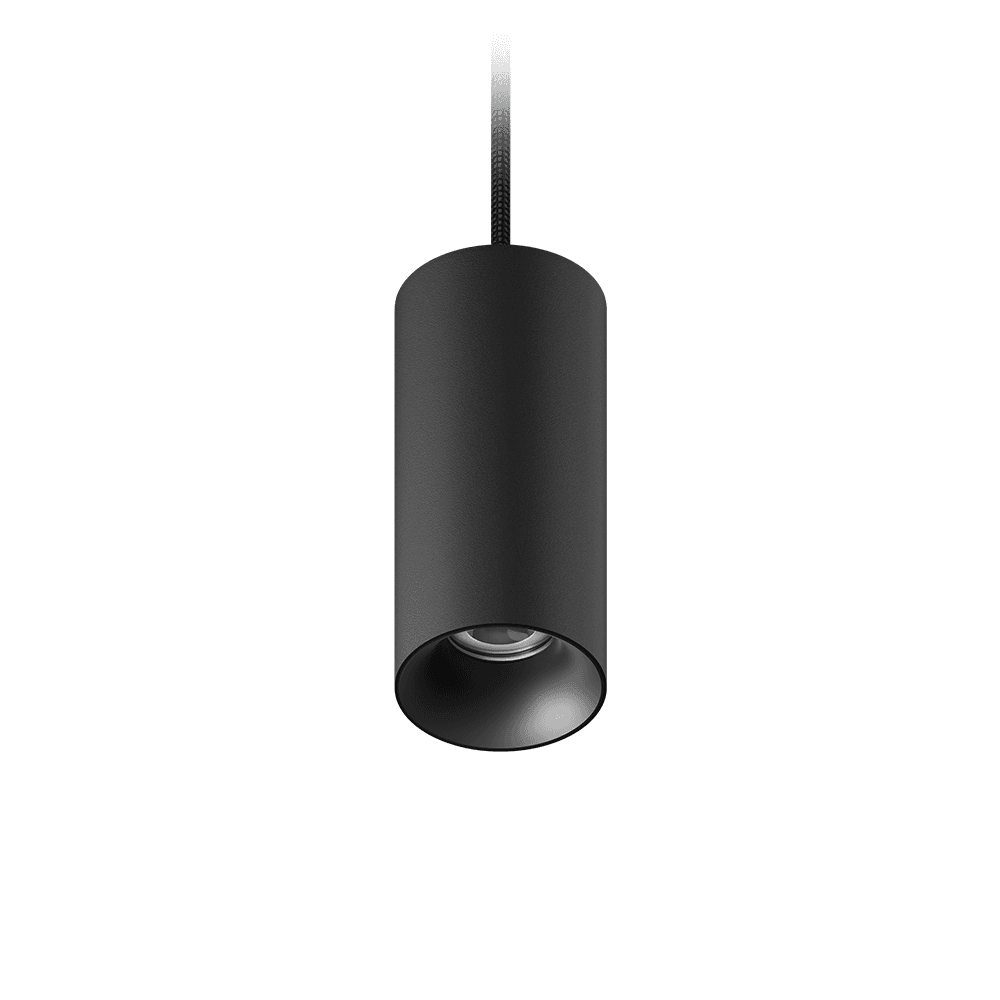

ION R Suspended Downlight

Utilising the ION R’s suspended pendant to create visual interest by bringing the light source closer to the lit surfaces for a beautiful pin spot effect. Configure this modular downlight for your lighting requirements with its extensive range of accessories.

Part of the ION R collection

Product Summary

Available Models

Small (75mm)

  • LED Power:Up to 11W
  • Lumens:Up to 1226lm
  • Beam:22° | 40° | 60°
Configure

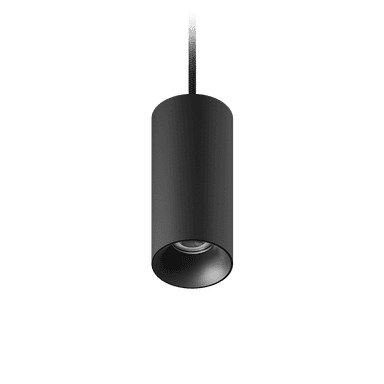

Medium (89mm)

  • LED Power:Up to 15W
  • Lumens:Up to 1656lm
  • Beam:22° | 40° | 60°

Large (163mm)

  • LED Power:Up to 32W
  • Lumens:Up to 3814lm
  • Beam:30° | 50° | 70°

XL (208mm)

  • LED Power:Up to 43W
  • Lumens:Up to 5128lm
  • Beam:30° | 50° | 70°

Specifications

Finishes

  • Textured Black/Black
  • Textured Black/Gold
  • Textured Black/Metallic
  • Textured Black/White
  • Textured White/Black
  • Textured White/Gold
  • Textured White/Metallic
  • Textured White/White

Colour rendering index (CRI)

  • 92+

Colour temperature

  • 2700K
  • 3000K
  • 4000K

IP rating

  • IP20

Efficacy

  • Up to
    119.26lm/W

Control

  • Casambi Bluetooth
  • DALI
  • Phase-cut dimmable
  • Non-dim

SDCM

  • 2

LED Lifetime

  • >55,000h L90B10

Materials

  • Powder Coated Aluminium

Primary Optics

  • Asymmetric Wallwasher
  • Honeycomb Louvre
  • Linear Lens
  • Softening Diffuser

Unified Glare Rating

  • <10
  • <13

Warranty

  • 5 Years

Class

  • Class I

Resources

ION R Suspended Downlight3D ModelsZIP 56.7 MB
ION R-Hotspot.png

A modular future of lighting

Explore true modularity with the ION R Series, where installation becomes effortless with the built-in ball-bearing and clip system. Able to function seamlessly when interchanged between models using the same engine, trust this downlight range to meet your every lighting intent.

ION R Cafeteria.jpeg

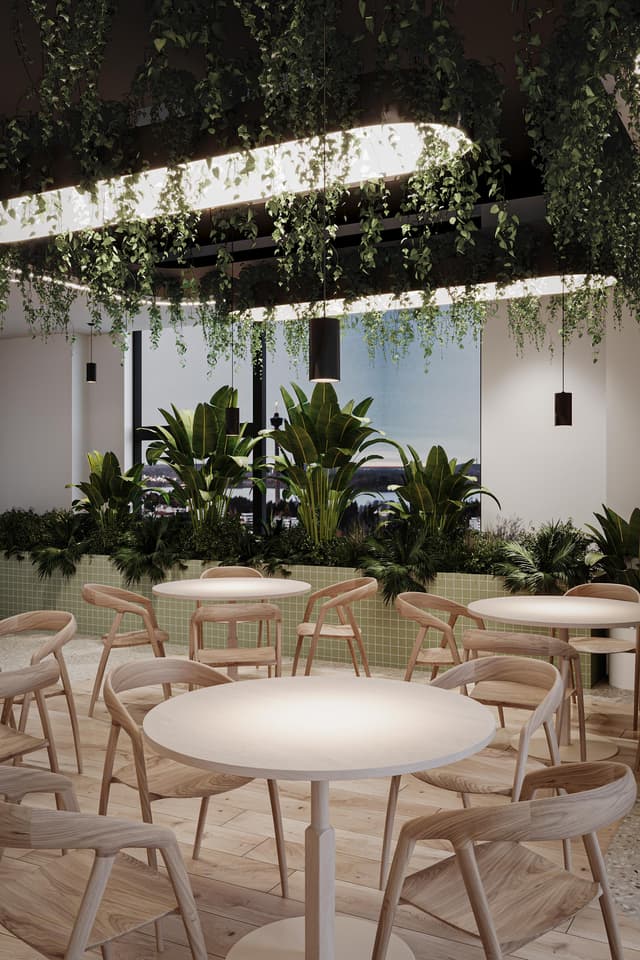

ION R Cafeteria - Pendant.jpeg

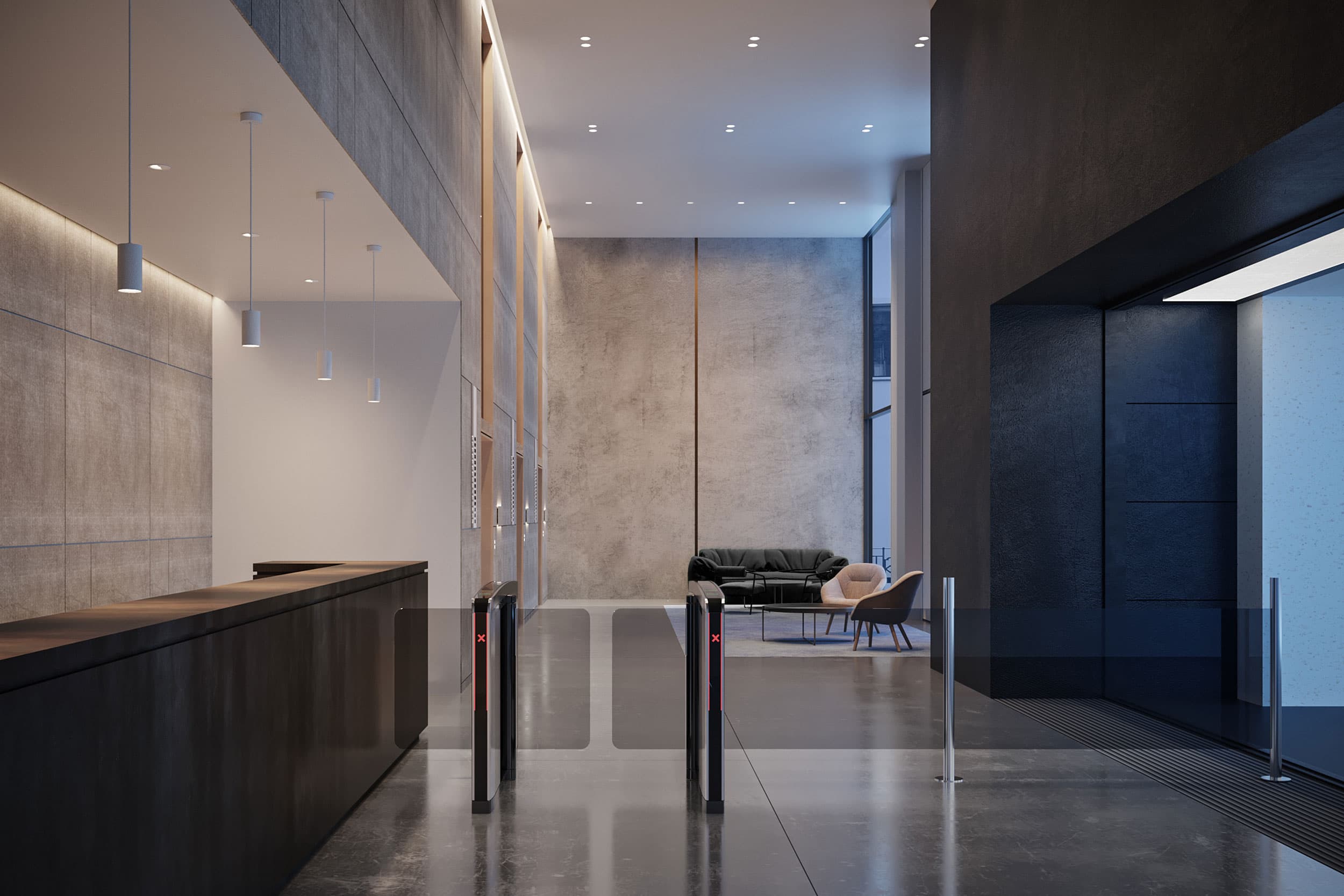

ION R -High-Ceiling_03.jpg

One series. Infinite Possibilities

As part of the ION Collection, the ION R Suspended Downlight comes in various models and outputs, with the ability to interchange between mounting options, suitable for applications of all purposes.

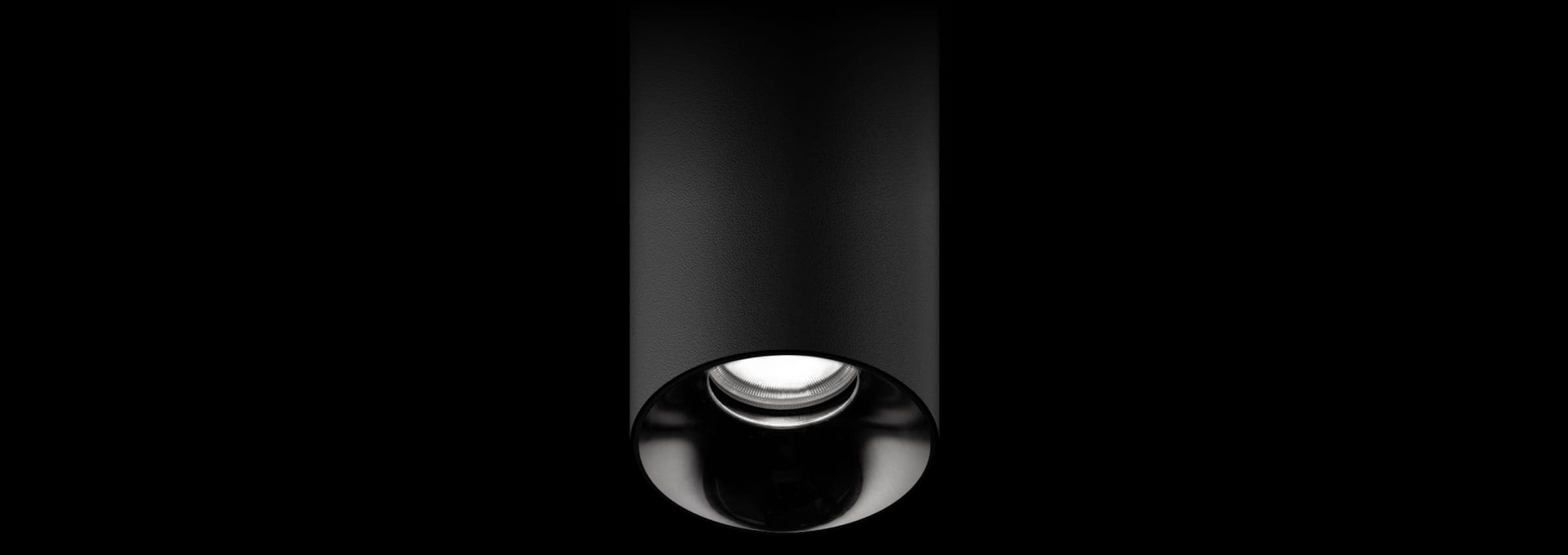

Low glare

Ensures minimal glare even when performing at high output for maximum visual comfort.

COI compliance

Specific models are compliant with the Cyanosis Observation Index, suitable for visual detection of cyanosis in healthcare applications.

Tunable white

Change colour temperatures throughout the day to assist the natural circadian rhythms with colour-tuning technology.
ION R-Feature3.jpg

Reimagining the downlight experience

Resulting from years of deeply understanding customer needs, the ION R Series is designed to meet every lighting requirement, balancing universality, form, function and performance.

ION R-Feature.jpg

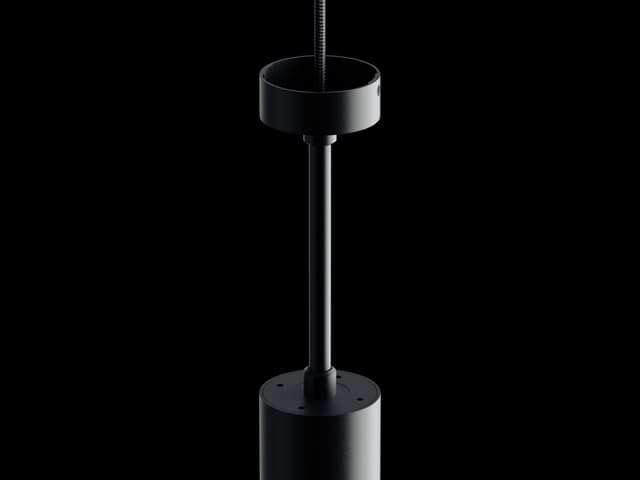

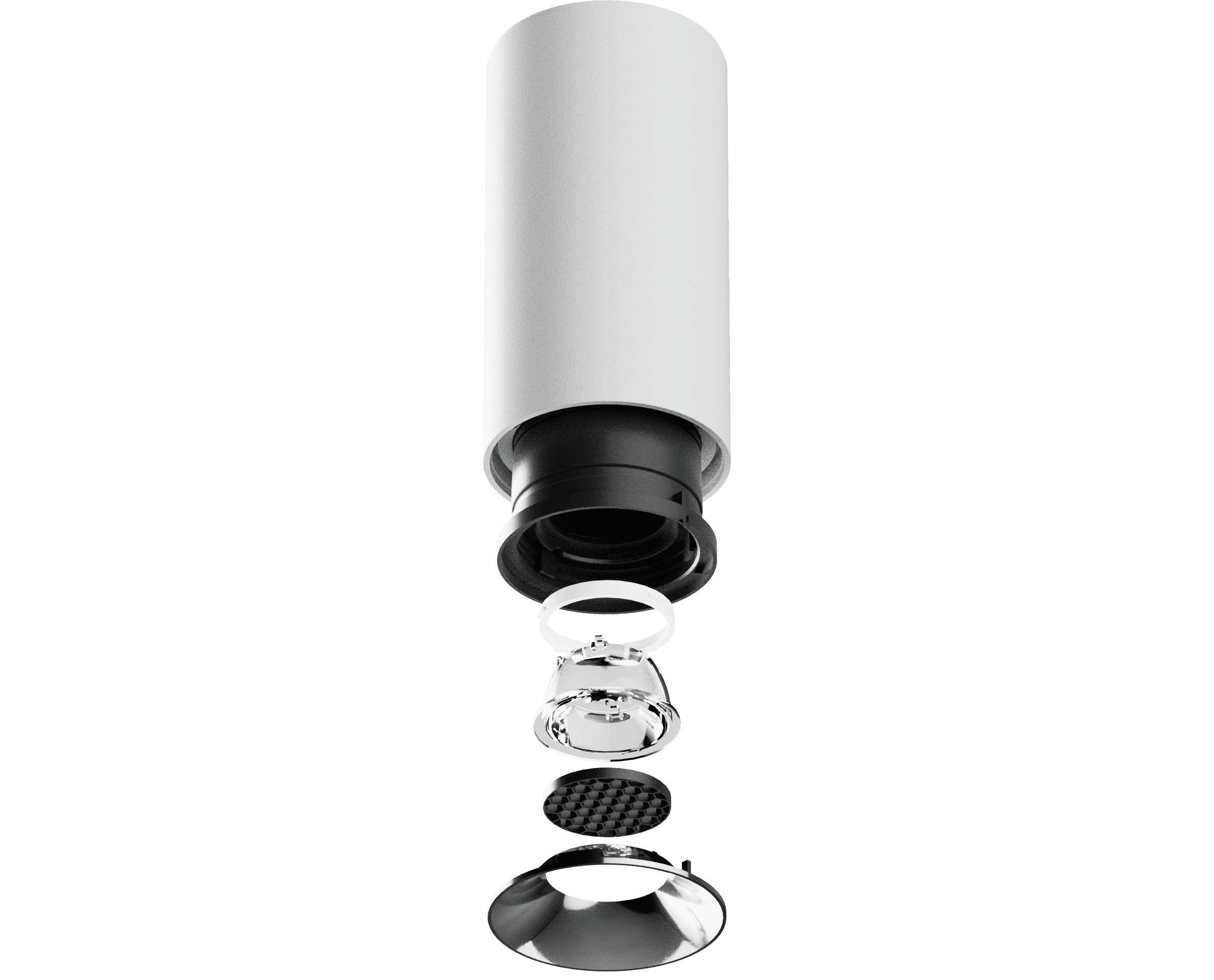

Lighting simplified

Engineered to function seamlessly between mounting options and support quick and toolless installation with a built-in clip system and ball-bearing design along the trim.

ION R-Feature2.jpg

Stealth metallic baffle finish

Following the darklight concept, the Stealth Metallic baffle minimises the light source's presence. From certain angles, the light source is completely hidden from the peripheral vision.

ION R-Beam - Hotspot.png

One series. Multiple beam options

Take your design further with our extensive range of beam options. Customise the award-winning ION Collection to deliver the right lighting effect to your projects.


Crafted in Australia

Our Crafted in Australia products are hand-assembled by Australian lighting fabricators to allow for customisations ranging from beam angles and optics to finishes and fascias.

CRI 92+

Designed to maintain the object's natural colour with an outstanding colour performance at CRI 92+.

Lasting lifetime

Offers a lasting lifetime and ensures the specified luminaire's performance is consistent until the end of the service life.

SDCM≤2

Meets the industry's highest colour consistency standard in LED lighting for assured colour consistency over the product's operational lifetime.

Perfect for

Perfect For - Public Spaces.jpeg

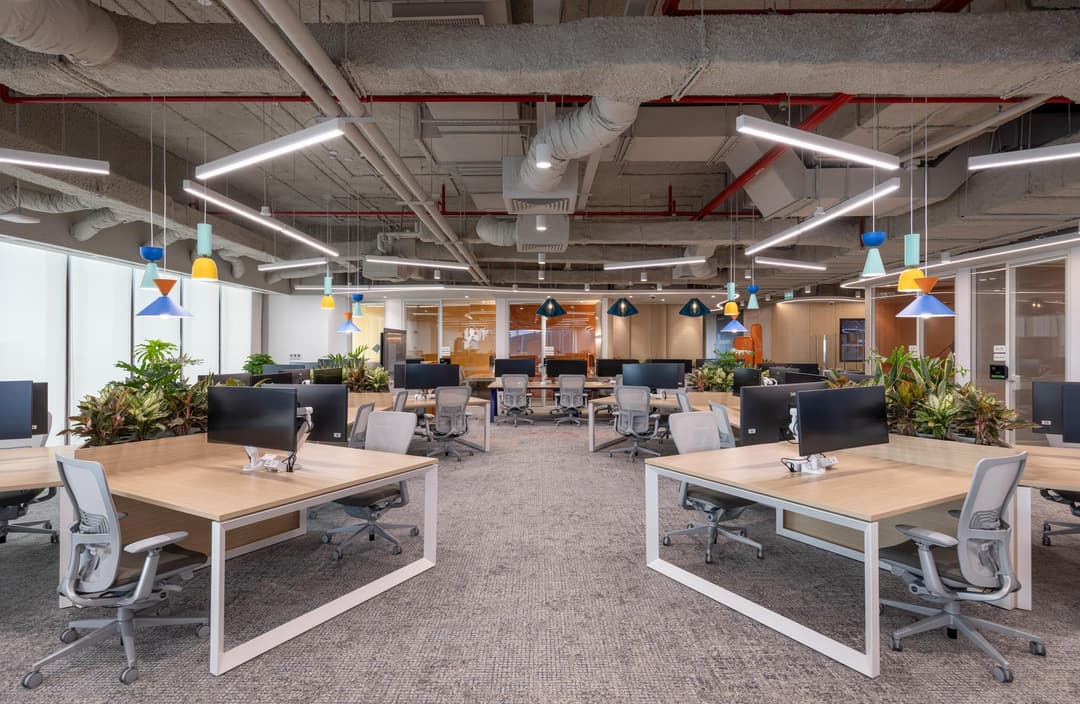

Public Spaces
