LX Infinity Direct Linear Light
The collection features seven optic options, such as Honeycomb, Wallwasher, Direct Lens and Prismatic for various lighting effects. Perfectly suspended with a wire or rod, combine the six fundamental shapes to create up to 50m of striking geometric installations - with zero light leakage. Try the LX Configurator.
Part of the LX Infinity collection
Available Models
Honeycomb
- LED Power:Up to 22W/m
- Lumens:Up to 2039lm/m
- Beam:80°
Prismatic
- LED Power:Up to 22W/m
- Lumens:Up to 2325lm/m
- Beam:90°
Baffle
- LED Power:Up to 22W/m
- Lumens:Up to 2353lm/m
- Beam:100°
Louvre
- LED Power:Up to 22W/m
- Lumens:Up to 2412lm/m
- Beam:90°
Opal
- LED Power:Up to 22W/m
- Lumens:Up to 2659lm/m
- Beam:100°
Wallwasher
- LED Power:Up to 22W/m
- Lumens:Up to 2898lm/m
- Beam:50°
Direct lens
- LED Power:Up to 22W/m
- Lumens:Up to 3156lm/m
- Beam:60°
Specifications
Finishes
- Textured Black
- Textured Black/White
- Textured White
- Textured White/Black
Colour rendering index (CRI)
- 80+
Colour temperature
- 2700K
- 2700K-6500K
- 3000K
- 4000K
IP rating
- IP40
Efficacy
- Up to
143.45lm/W
Control
- DALI
- Non-dim
SDCM
- ≤3
LED Lifetime
- >60,000h L80B10
Materials
- Powder Coated Aluminium
Unified Glare Rating
- <10
- <19
- <22
Warranty
- 5 Years
Class
- Class I
Resources
The definitive linear lighting solution
Powered by Tridonic, equipped with Samsung LED boards and configurable through LX Configurator, the range represents a new generation of tailor-made linear design with superior performance.
Low glare
Ensures minimal glare even when performing at high output for maximum visual comfort.5-year warranty
With a 5-year warranty, have extra peace of mind when specifying this luminaire for your project.Lasting lifetime
Offers a lasting lifetime and ensures the specified luminaire's performance is consistent until the end of the service life.
Over 1,000,000 options, configurable in seconds.
Create a tailor-made linear design in seconds with the pioneering digital tool — the LX Configurator. Instantaneously generate shop drawings, output consolidated IES files, preview the unique configuration with an exhaustive image library, and receive pricing within 2 business days.
Infinite configurations
As part of the LX Infinity Collection, the LX Infinity Direct Linear Light is designed for visual comfort and engineered for performance. Configurable with 2 finishes, 4 mounting options, 7 optics and 6 fundamental shapes, the combinations are endless with the LX Infinity Direct Linear Light.

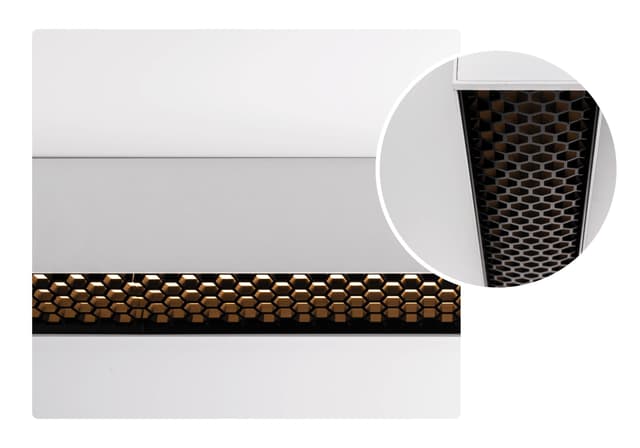

Honeycomb
The distinctive honeycomb optics layer over an opal diffuser to provide a unique aesthetic and reduced glare from all angles.

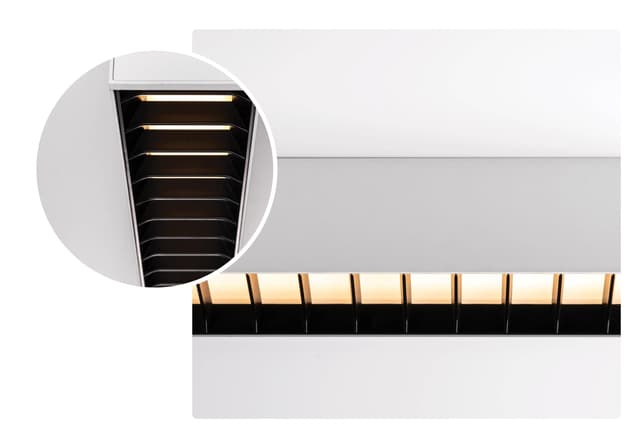

Louvre
Moulded from polycarbonate, the Louvre optic features spaced louvres layer over an opal diffuser, allowing uninterrupted light distribution with minimised glare.

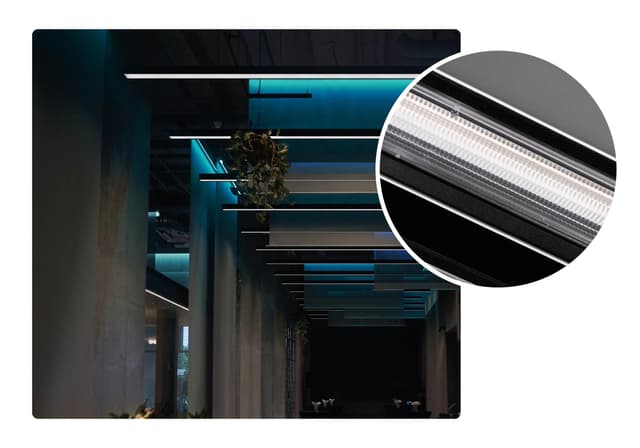

Direct Lens
The precise lens produces a 60° beam for a light source that maximises horizontal illuminance and minimises light spillage.

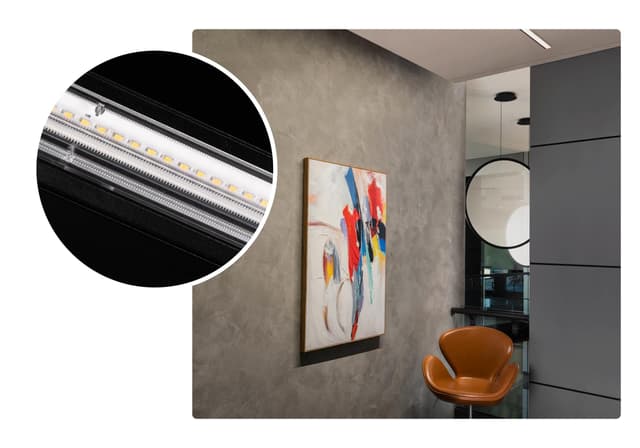

Wallwasher
The wallwasher lens allows the LX Infinity to produce an even and precise 50° beam of asymmetric light distribution when directed toward a wall.

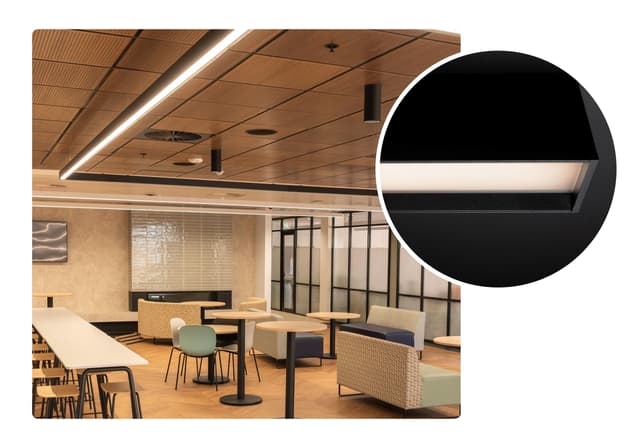

Baffle
As a Signature Optic, the opal diffuser is recessed into the baffle trim, reducing glare by removing direct line of sight.

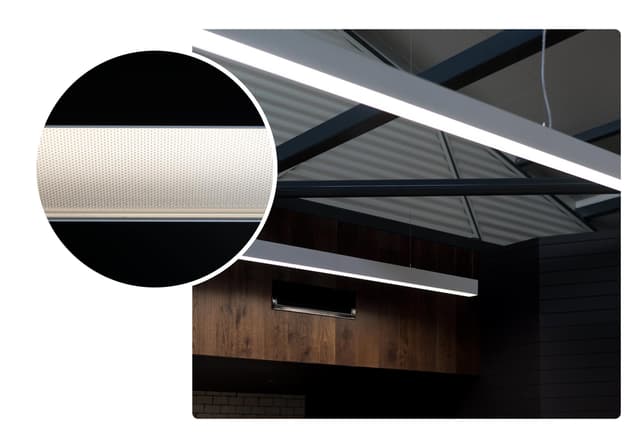

Prismatic
As one of seven optic options, the prismatic optic is a unique three-layer construction that reduces glare and creates a dot-free appearance while providing visual comfort.

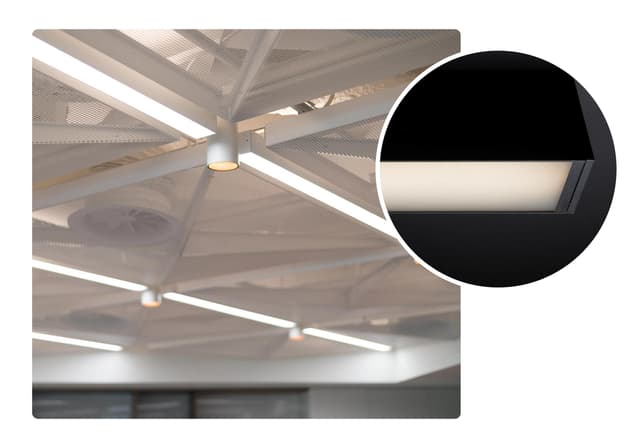

Opal
As one of seven optic options, the classic opal diffuser is recessed into the baffle trim, reducing glare by removing the direct line of sight.
Crafted in Australia
The linear profile is precisely cut to your specification and fabricated with LED strips, optics and leads in our Perth-based facilities, allowing significantly shorter lead times.
