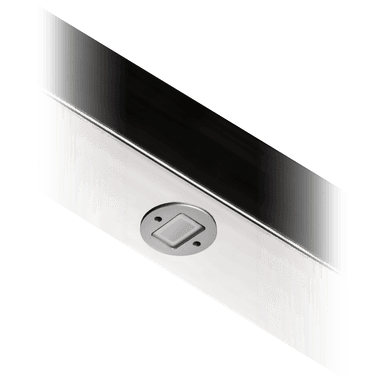

Pilot Handrail Light

Enhance aesthetics and visibility with the Pilot Handrail Series, which offers a slimline, unobtrusive design that is the perfect solution for any round or square handrail configuration. This continuous flow of light contributes to both safety and ambience, delivering the most functional illumination at IP67.

Please check availability your Unios distributor
Product Summary

Available Models

Flat Symmetrical

  • LED Power:Up to 1.5W
  • Lumens:Up to 121lm
  • Beam:70°
Configure

Round Symmetrical (Ø38-45mm)

  • LED Power:Up to 1.5W
  • Lumens:Up to 124lm
  • Beam:70°

Round Symmetrical (Ø48-63mm)

  • LED Power:Up to 1.5W
  • Lumens:Up to 124lm
  • Beam:70°

Flat Asymmetrical

  • LED Power:Up to 2W
  • Lumens:Up to 133lm
  • Beam:70°

Round Asymmetrical (Ø38-45mm)

  • LED Power:Up to 1.5W
  • Lumens:Up to 157lm
  • Beam:70°

Round Asymmetrical (Ø48-63mm)

  • LED Power:Up to 1.5W
  • Lumens:Up to 157lm
  • Beam:70°

Specifications

Finishes

  • Anodised Aluminium
  • Stainless Steel

Colour rendering index (CRI)

  • 80+

Colour temperature

  • 2700K
  • 3000K
  • 4000K

IP rating

  • IP66

Efficacy

  • Up to
    78.50lm/W

Control

  • Non-dim

SDCM

  • 3

Materials

  • 316 Stainless Steel
  • Anodised Aluminium

Warranty

  • 5 Years

Impact Protection (IK)

  • 10

Class

  • Class III

Resources

Pilot Handrail Light3D ModelsZIP 351.1 KB

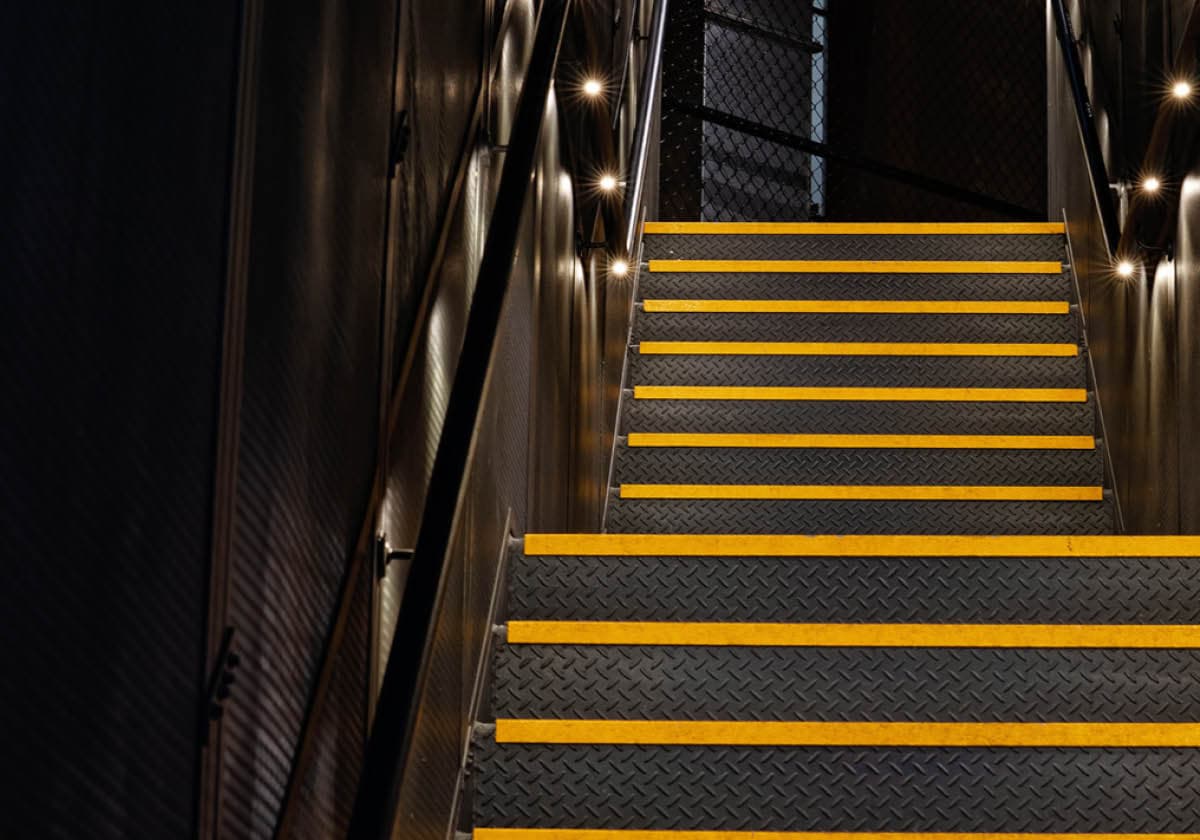

The District at SkyCityDSC04606-Edit.jpeg
The District at SkyCityAdelaide, Australia
The District at SkyCityDSC04658-Edit-2.jpeg
The District at SkyCityAdelaide, Australia

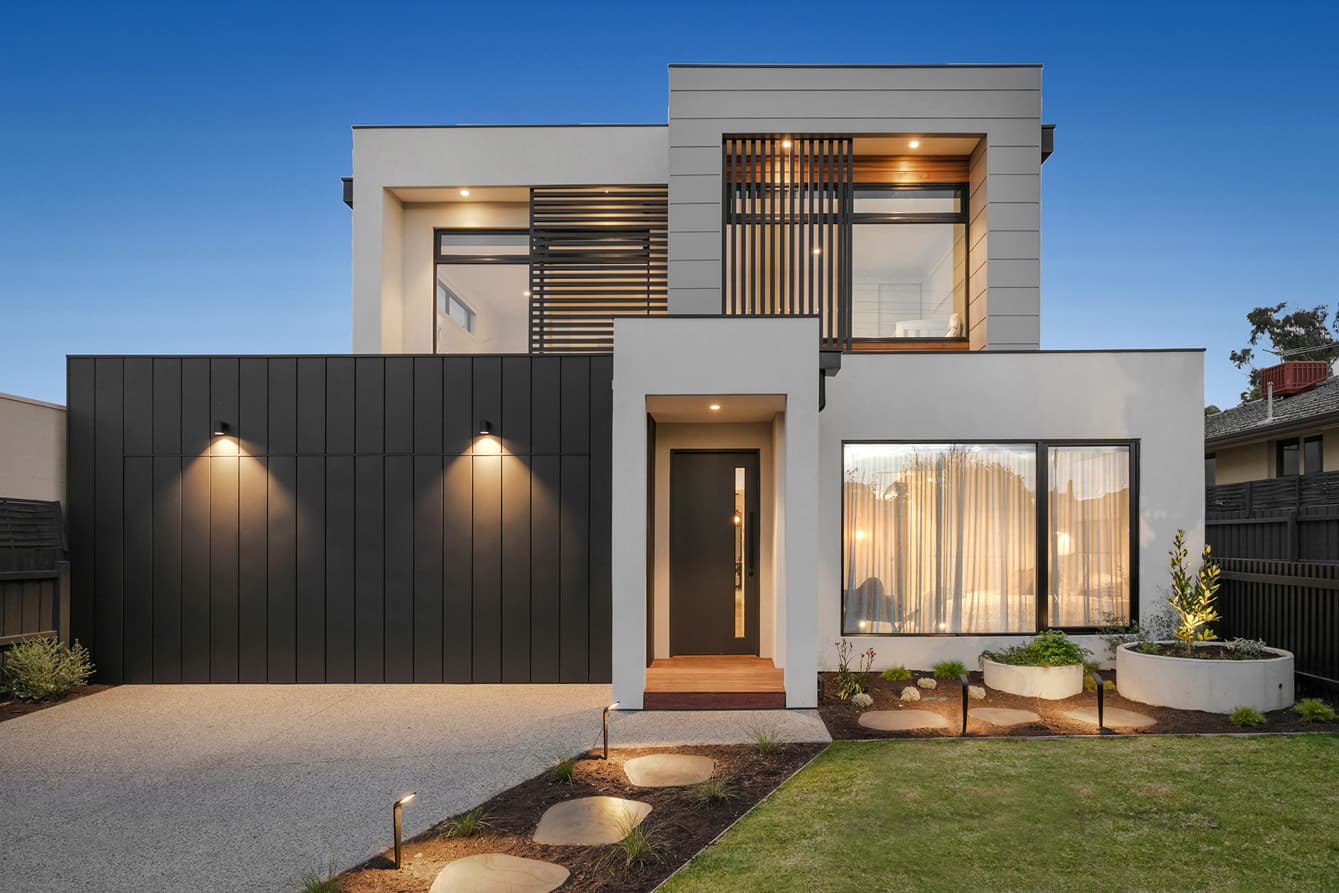

D2 Villa - Pilot - 20201105---Unios-00003.jpg
UNIOS_Edithvale_Life Saving Club__0178 Edited.jpeg
Edithvale Lifesaving ClubMelbourne, Australia
The KaleidoscopeQuang Binh, Vietnam
The District at SkyCityDSC04572-Edit.jpeg
The District at SkyCityAdelaide, Australia

IK10 rating

Protection against an impact of 20J of force.

IP66 rating

Complete protection against dust and high-pressure jets of water from all directions, similar to heavy seas.

IP67 rating

Complete protection against dust and can be immersed in water of up to one metre.

Vandal Proof

The luminaire requires a security tool to remove, offering additional peace of mind when installed in outdoor or public spaces.

Power options

The Pilot Handrail Light offers constant current or constant 24V DC drivers to be wired in parallel for longer runs or wired in series for battery backup.

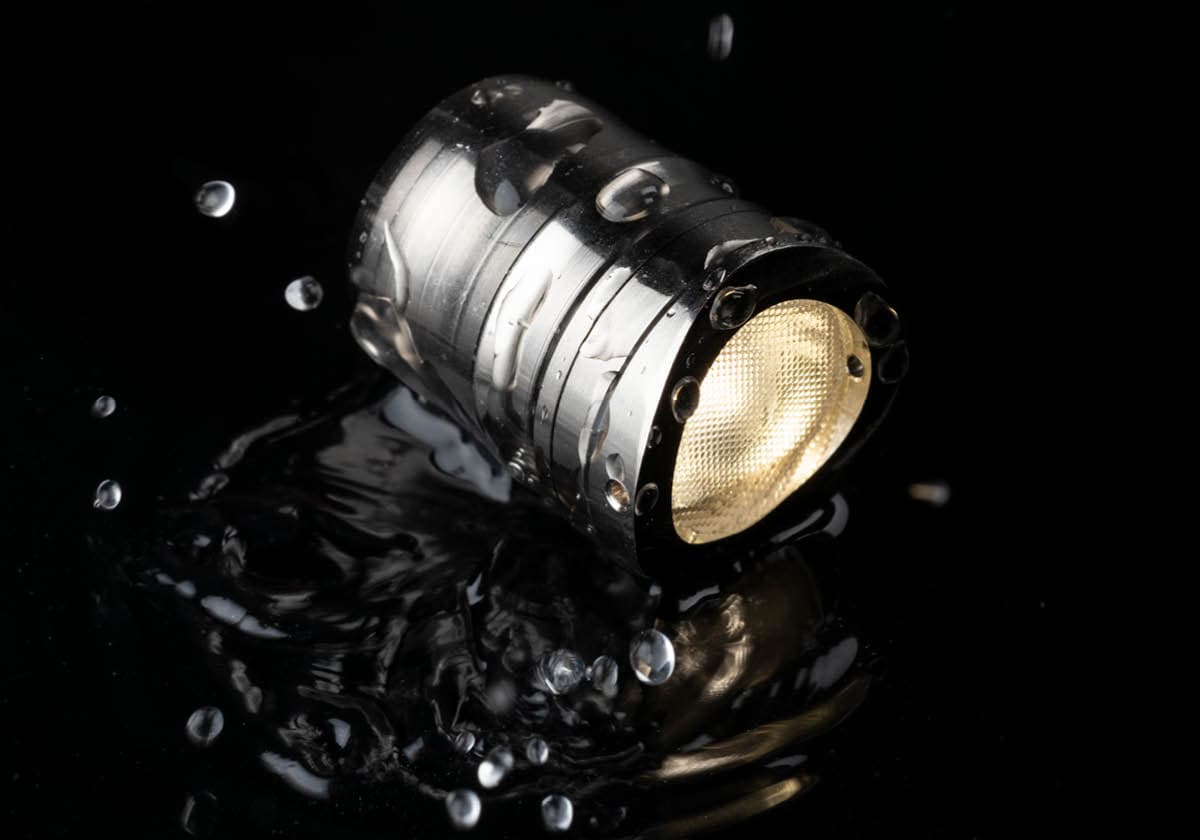

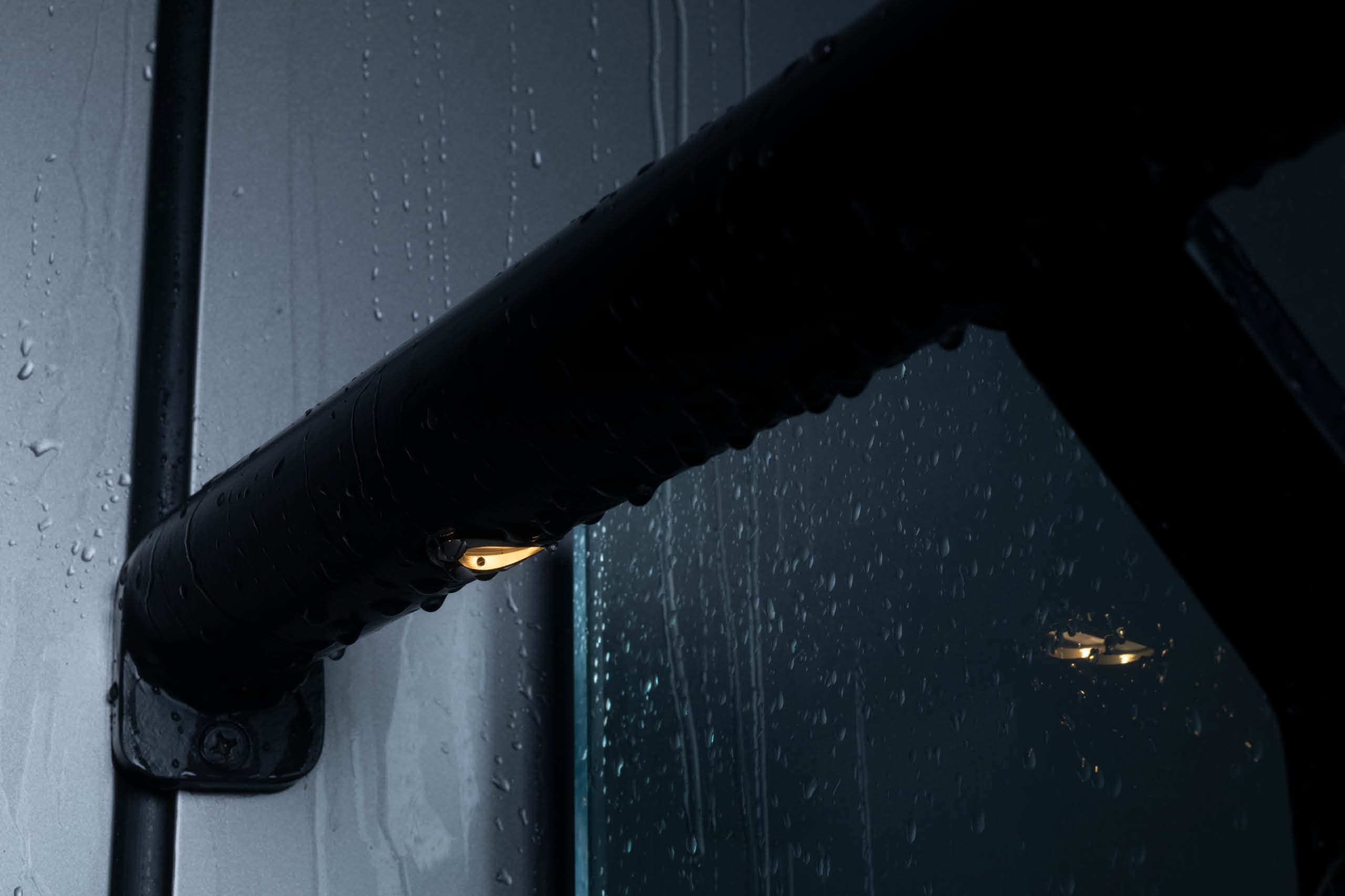

IP66/67

With a combined IP66/67 rating, the Pilot Handrail Series is protected against powerful water jets and immersion up to 1m, ensuring electrical and mechanical components remain untouched.


A comprehensive system inside a small package

Available in round or square and symmetrical or asymmetrical design, the Pilot Handrail Light is the perfect solution to discretely light up the passageways.

Lasting lifetime

Offers a lasting lifetime and ensures the specified luminaire's performance is consistent until the end of the service life.

RGB

Produce almost any colour to create striking effects on buildings and facades with RGB.

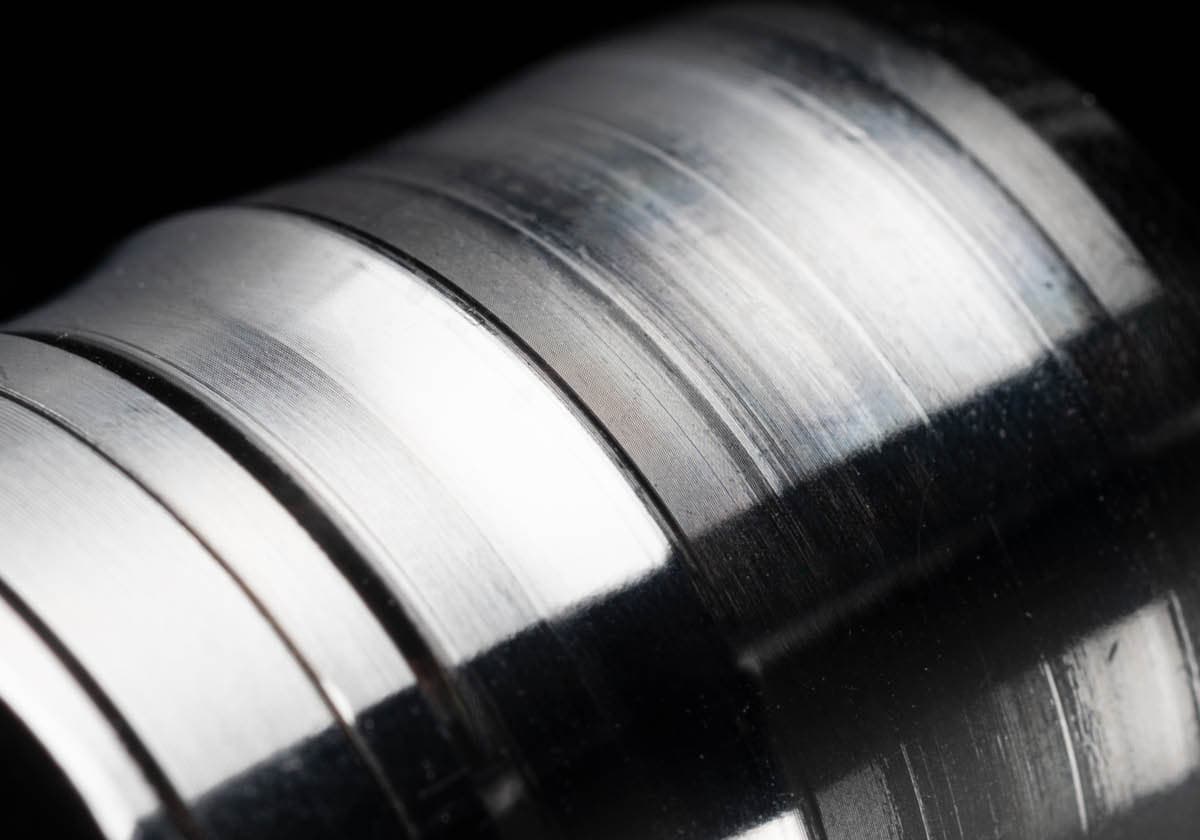

316 Marine grade

Contains molybdenum, making the material more resistant to pitting when exposed to chemical corrosives such as chlorides present in seawater.

Perfect for

Perfect For - Hospitality.jpeg
Hospitality

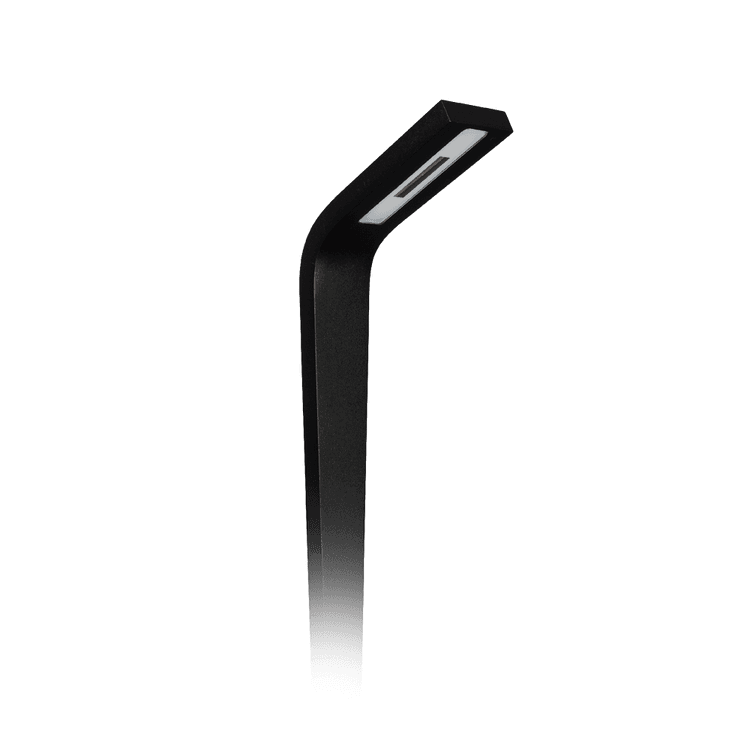

Related products
