FX 48V Linear Light

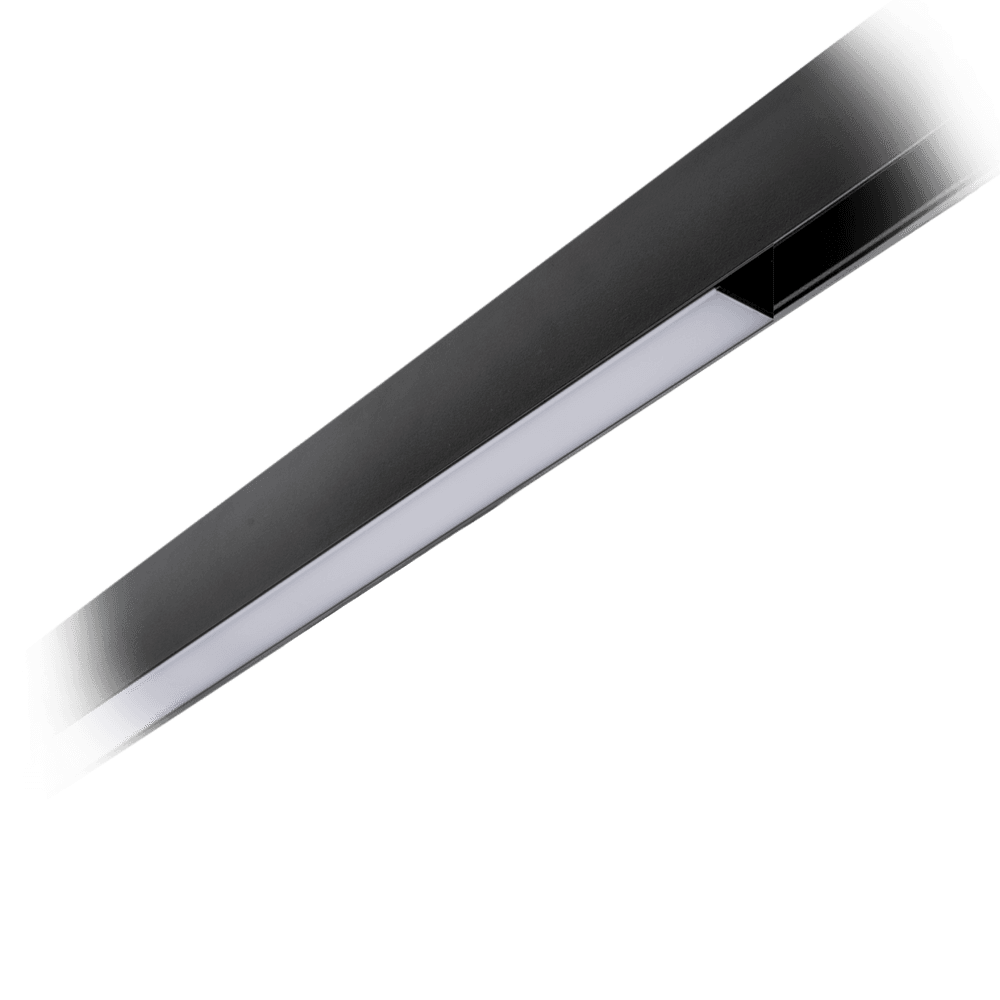

The FX 48V Linear Light emits a continuous flow of illumination from the 48V track. Run your line of light as one, or separate along the track for individual sections of linear lighting. Safe to touch, the luminaire can be easily installed into the FX 48V Track through a magnetic connector.

Part of the FX 48V collection

Please check availability with your Unios distributor
Configure
Product Summary

Available Models

Image not found

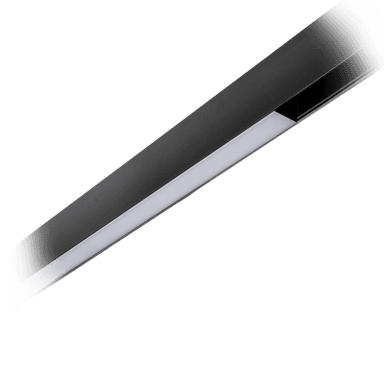

L05 (565mm) Linear Light

  • LED Power:Up to 13W
  • Lumens:Up to 931lm
  • Beam:115°
Configure
Image not found

L11 (1125mm) Linear Light

  • LED Power:Up to 25W
  • Lumens:Up to 1811lm
  • Beam:115°
Configure

Specifications

Finishes

  • Textured Black
  • Textured White

Colour rendering index (CRI)

  • 90+

Colour temperature

  • 2700K
  • 3000K
  • 4000K

IP rating

  • IP20

Efficacy

  • Up to
    72.44lm/W

Control

  • 1-10V dimmable
  • Casambi Bluetooth
  • DALI

SDCM

  • 3

LED Lifetime

  • >60,000h L80B10

Materials

  • Powder Coated Aluminium

Primary Optics

  • Clear Lens

Warranty

  • 5 Years

Class

  • Class III

Resources

FX 48V Linear Light3D ModelsZIP 2.3 MB

Part of the FX Collection

Mix and match between 5 different luminaire options within the collection to create different lighting designs and effects, perfectly adaptable to your ever-changing lighting needs.

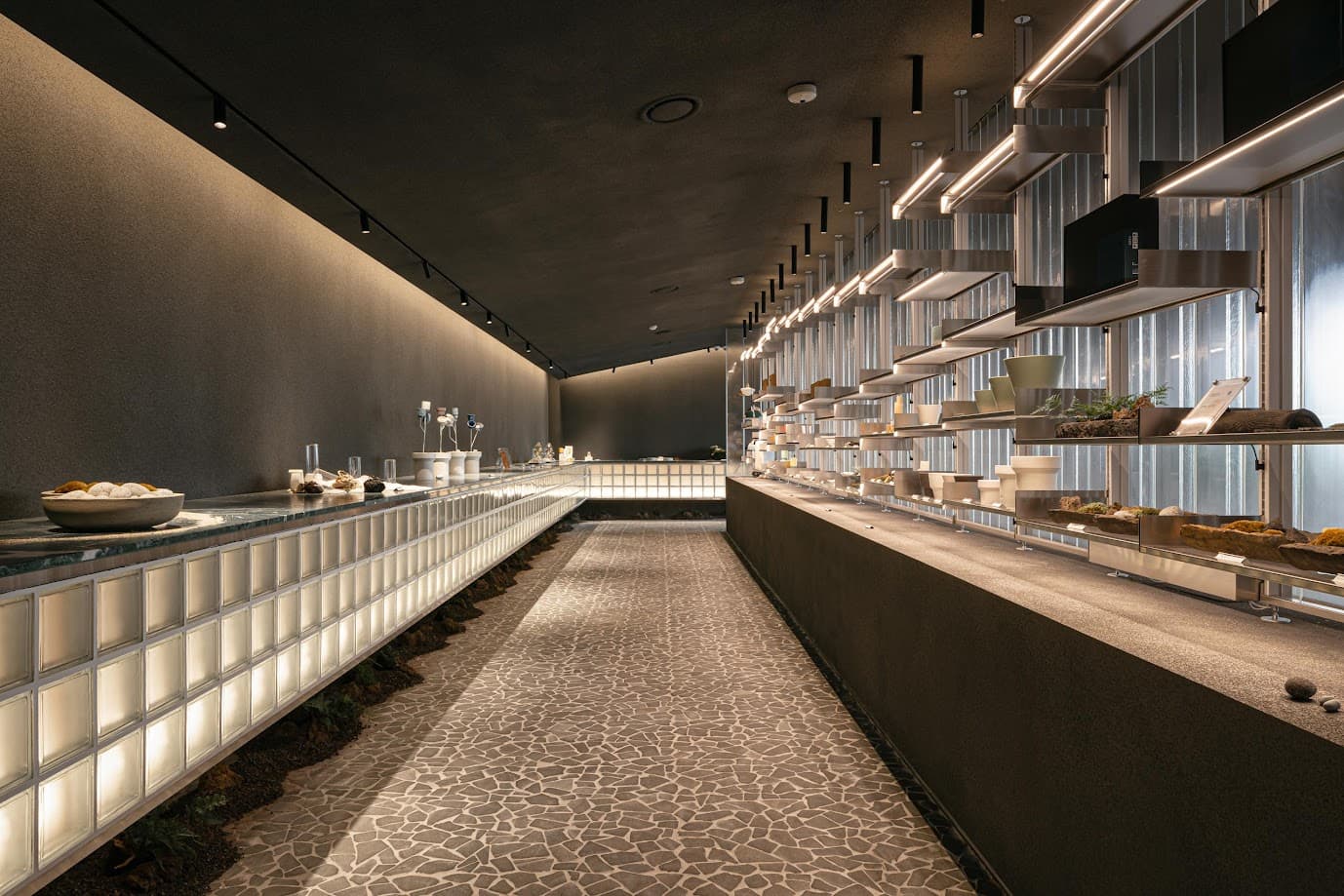

Unios - Tran Quang coffee 29.jpeg
Tran Quang Coffee FactoryBinh Duong, Vietnam

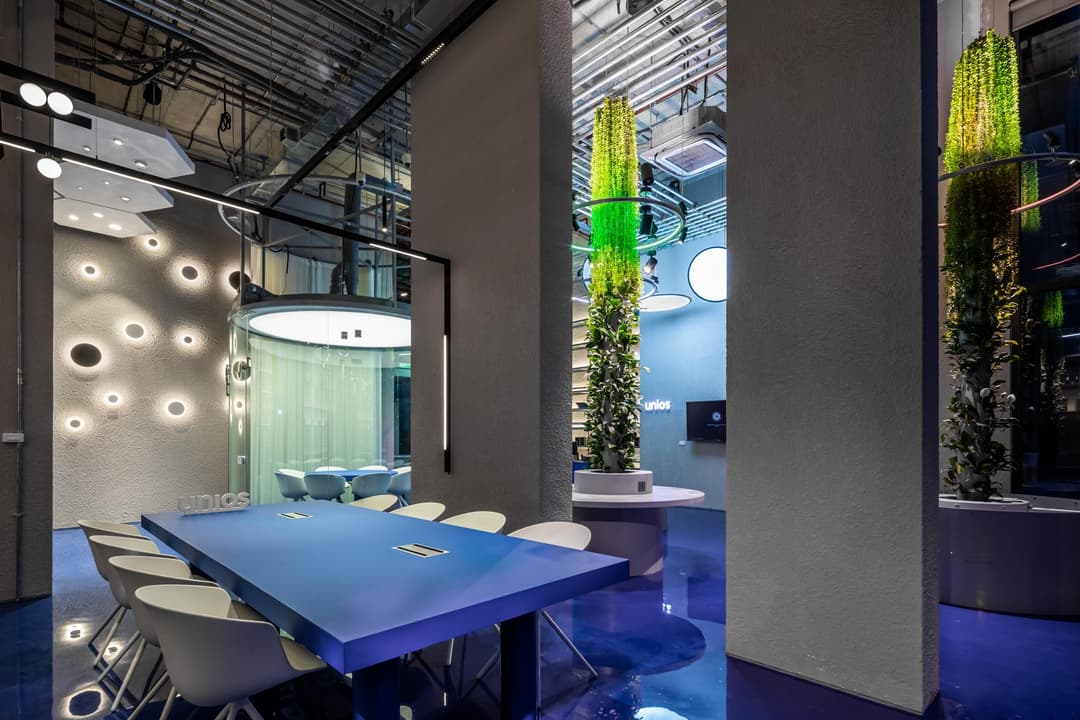

Unios Chelsea Showroom_0719.jpeg
Unios Chelsea Showroom_0733.jpeg
FX Linear-Feature2.jpg

Linear

Following the lines, the FX Linear Light emanates a continuous flow of illumination to create dynamic patterns on wall and ceiling surfaces.


Safe to touch

As part of the FX Collection, the FX 48V Linear Light is safe to touch (SELV), allowing seamless luminaire changeability and ease of maintenance, perfect for wall and ceiling applications.

COI compliance

Specific models are compliant with the Cyanosis Observation Index, suitable for visual detection of cyanosis in healthcare applications.

CRI 90+

Designed to maintain the object's natural colour with an outstanding colour performance at CRI 90+.

Perfect for

Perfect For - Hospitality.jpeg
Hospitality
