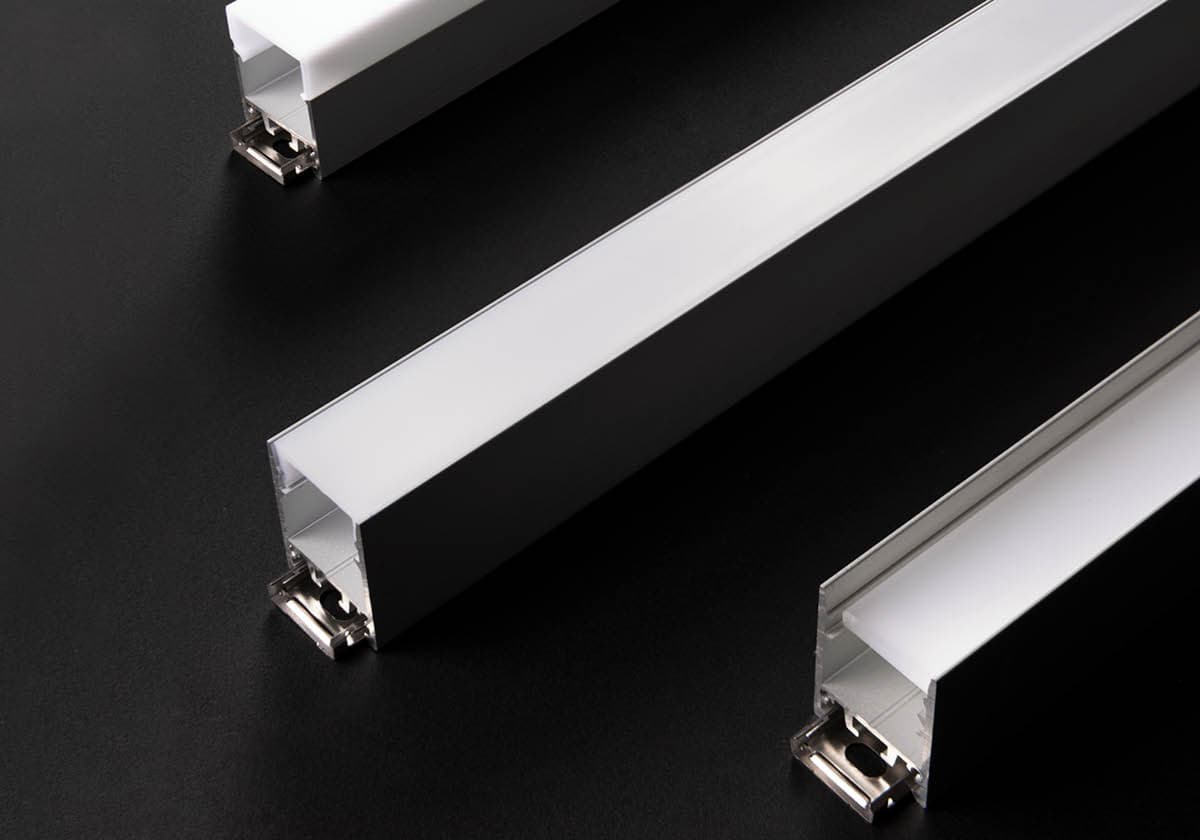

Eclipse G2 Cloud Linear Series

The Cloud series facilitates easy installation with a revolutionary hidden-clip system for surface and recessed applications. Suspend using the perfectly-engineered canopy with integrated power to provide the ultimate sleek design. The range offers versatility with a range of diffusers with flush, baffled and Hoizon options.

Part of the Eclipse collection

Available Models

Cloud CS20 (Standard) Suspended

  • LED Power:Up to 20W/m
  • Lumens:Up to 803lm/m
  • Beam:110°
Configure

Cloud CS20 (Standard) Surface Mounted

  • LED Power:Up to 20W/m
  • Lumens:Up to 877lm/m
  • Beam:110°

Cloud CB20 (Baffle) Suspended

  • LED Power:Up to 20W/m
  • Lumens:Up to 1047lm/m
  • Beam:110°

Cloud CB20 (Baffle) Surface Mounted

  • LED Power:Up to 20W/m
  • Lumens:Up to 1144lm/m
  • Beam:110°

Cloud CU20 (Horizon Diffuser) Suspended

  • LED Power:Up to 20W/m
  • Lumens:Up to 1163lm/m
  • Beam:150°

Cloud CU20 (Horizon Diffuser) Surface Mounted

  • LED Power:Up to 20W/m
  • Lumens:Up to 1271lm/m
  • Beam:150°

Specifications

Finishes

  • Aluminium
  • Textured Black
  • Textured White

Colour rendering index (CRI)

  • 90+

Colour temperature

  • 2700K
  • 2700K-6500K
  • 3000K
  • 4000K
  • RGB
  • RGBW

IP rating

    Efficacy

    • Up to
      97.05lm/W

    Control

    • Non-dim

    SDCM

    • 3

    LED Lifetime

    • >54,000h L80B10

    Materials

    • Powder Coated Aluminium

    Resources

    Eclipse G2 Cloud Linear Series3D ModelsZIP 4.4 MB

    Part of the Eclipse Collection

    As part of the Eclipse Collection, the Eclipse G2 Cloud Linear Series boasts excellent colour rendering and durability, with various profiles to suit any architectural structure.

    Raine Square_DSC_4074.jpeg
    Raine SquarePerth, Australia
    Unios Diamond Island Showroom_9192.jpeg
    Unios Diamond Island ShowroomHo Chi Minh City, Vietnam
    20220718 - Tre Dining 30.jpeg
    Tre DiningHo Chi Minh City, Vietnam
    Raine Square_DSC_0311-HDR.jpeg
    Raine SquarePerth, Australia

    Lumen performance

    Delivers high output, making it an ideal solution for applications requiring high performance, efficiency and lumen efficacy.

    Lasting lifetime

    Offers a lasting lifetime and ensures the specified luminaire's performance is consistent until the end of the service life.

    Phase-cut driver

    Offers the ability to dim luminaires using the phase-cut dimming method.

    Crafted in Australia

    From our Perth-based fabrication facility, the luminaires are pre-assembled with custom leads and labelled ready for immediate installation on-site.


    Providing dot-free illumination with high density, superior quality LED strip

    With great uniformity, the Eclipse Cloud is compatible with the EC10 strip, featuring 120LEDs/m and customisable down to 25mm increments, enabling illumination from end-to-end.


    Hidden clip system

    The hidden clip system can simplify mounting to ceilings and under cabinetry for a seamless surface-mounted aesthetic; no longer need to mount the strip and profile separately.


    Various mounting options

    The Eclipse G2 Cloud Linear Series is highly versatile, with surface-mounted, recessed and suspended variations providing harmonious illumination, suitable for any architectural structure.


    Midnight diffuser

    The Eclipse G2 Cloud Linear Series uses the Midnight diffuser to achieve a softer illumination and provides the ultimate sleek contemporary style for the ultra-modern look.


    Horizon diffuser

    With the horizon diffuser, the Eclipse G2 Cloud Linear Series achieves broader light output or vertical illumination to improve the room's brightness and openness.

    CRI 90+

    Designed to maintain the object's natural colour with an outstanding colour performance at CRI 90+.

    RGB & RGBW

    Create striking lighting effects by producing almost any colour, including true representation of white, with RGBW.

    Tunable white

    Change colour temperatures throughout the day to assist the natural circadian rhythms with colour-tuning technology.

    Perfect for

    Perfect For - Hospitality.jpeg
    Hospitality
