Aeon Flex Essential Flexible Linear Series

The Aeon Flex Essential has an IP65 rating ideal for indoor and outdoor use. It offers consistent and uniform illumination, with up to 13m run length from a single piece. It can be mounted with standard clips or aluminium extrusion. The high-grade silicone construction ensures UV resistance for 5+ years.

Part of the Aeon Flex collection

Product Summary

Available Models

Side

  • LED Power:Up to 10W/m
  • Lumens:Up to 276lm/m
  • Beam:120°
Configure

Mini Side

  • LED Power:Up to 10W/m
  • Lumens:Up to 314lm/m
  • Beam:120°

Top

  • LED Power:Up to 10W/m
  • Lumens:Up to 477lm/m
  • Beam:120°

Mini Top

  • LED Power:Up to 10W/m
  • Lumens:Up to 566lm/m
  • Beam:120°

Specifications

Finishes

  • N/A

Colour rendering index (CRI)

  • 90+

Colour temperature

  • 2700K
  • 3000K
  • 4000K
  • RGB
  • RGBW

IP rating

  • IP65

Efficacy

  • Up to
    56.60lm/W

Control

  • Non-dim

SDCM

  • 2

LED Lifetime

  • >50,000h L80B10

Materials

  • Extruded Silicone

Warranty

  • 5 Years

Compatible accessories

  • Aeon Flex Essential Mini Side Aluminium Channel 2000mm Length
  • Aeon Flex Essential Mini Side SS Mounting Clips (2pcs/set)
  • Aeon Flex Essential Mini Top Aluminium Channel 2000mm Length
  • Aeon Flex Essential Mini Top Closed End Cap Clear
  • Aeon Flex Essential Mini Top SS Mounting Clips (2pcs/set)
  • Aeon Flex Essential Side Aluminium Channel 2000mm Length
  • Aeon Flex Essential Side Closed End Cap Clear
  • Aeon Flex Essential Side SS Mounting Clips (2pcs/set)
  • Aeon Flex Essential Top Closed End Cap Clear
  • Aeon Flex Essential Top SS Mounting Clips (2pcs/set)

Class

  • Class III

Resources

Aeon Flex Essential Flexible Linear SeriesIESZIP 37.4 KB

The next generation of flexible linear lighting

Follow the contours of the built environment with the Aeon Flex Essential, a perfectly uniform and dot-free line of light for indoor and outdoor applications.

Moss Hotel_DSCF8538.jpeg
Moss HotelHobart, Australia
EnergyAustralia Office-693.jpeg
EnergyAustraliaMelbourne, Australia
Casa Nostra Caffe_DSC_0736.jpeg
Casa Nostra CaffePerth, Australia
Krispy Kreme FawknerMelbourne, Australia
Infinity Views_DSC_0904.jpeg
UNIOS_Melbourne Central_203_HDR.jpeg
Melbourne CentralMelbourne, Australia

CRI 90+

Designed to maintain the object's natural colour with an outstanding colour performance at CRI 90+.

IP65 rating

Complete protection against dust and jets of water from all directions.

RGB & RGBW

Create striking lighting effects by producing almost any colour, including true representation of white, with RGBW.

Tunable white

Change colour temperatures throughout the day to assist the natural circadian rhythms with colour-tuning technology.

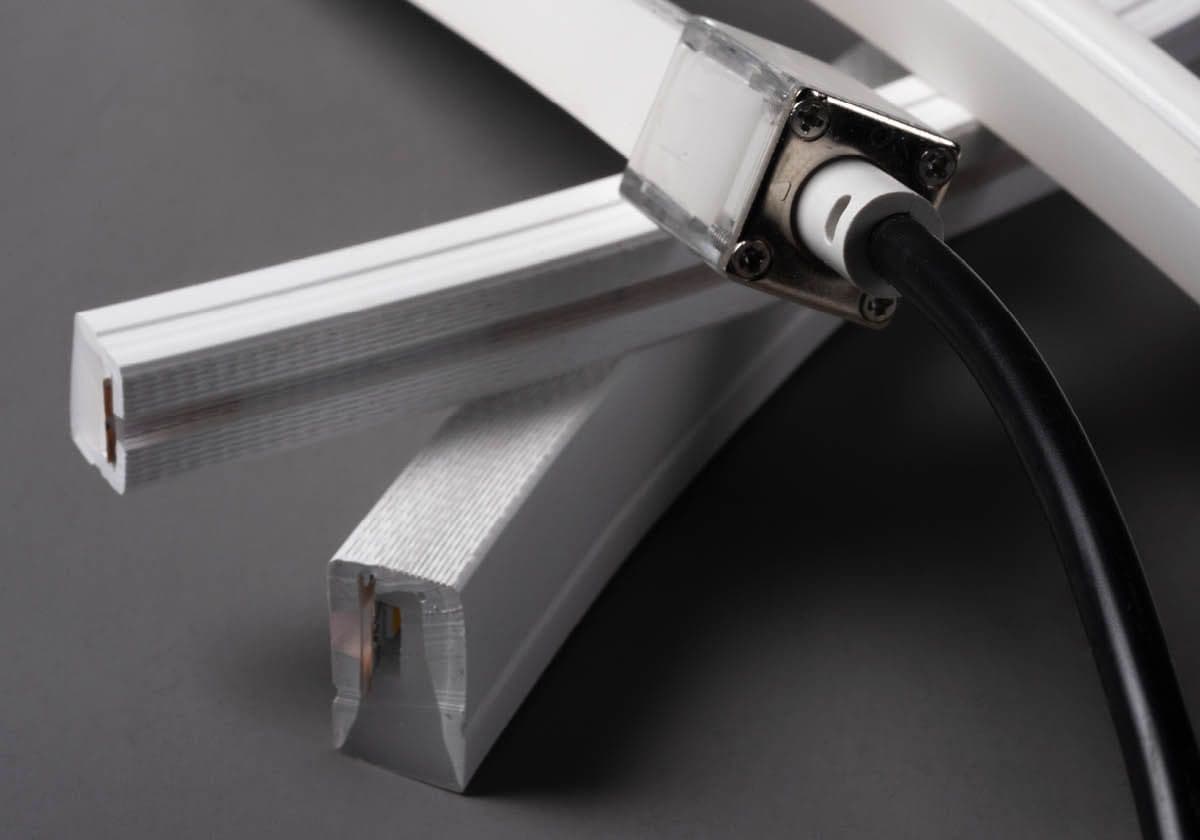

Light emitting directions

Configure the Aeon Flex for side emitting when curving round surfaces and top emitting for applications requiring a more direct light source.


Crafted in Australia

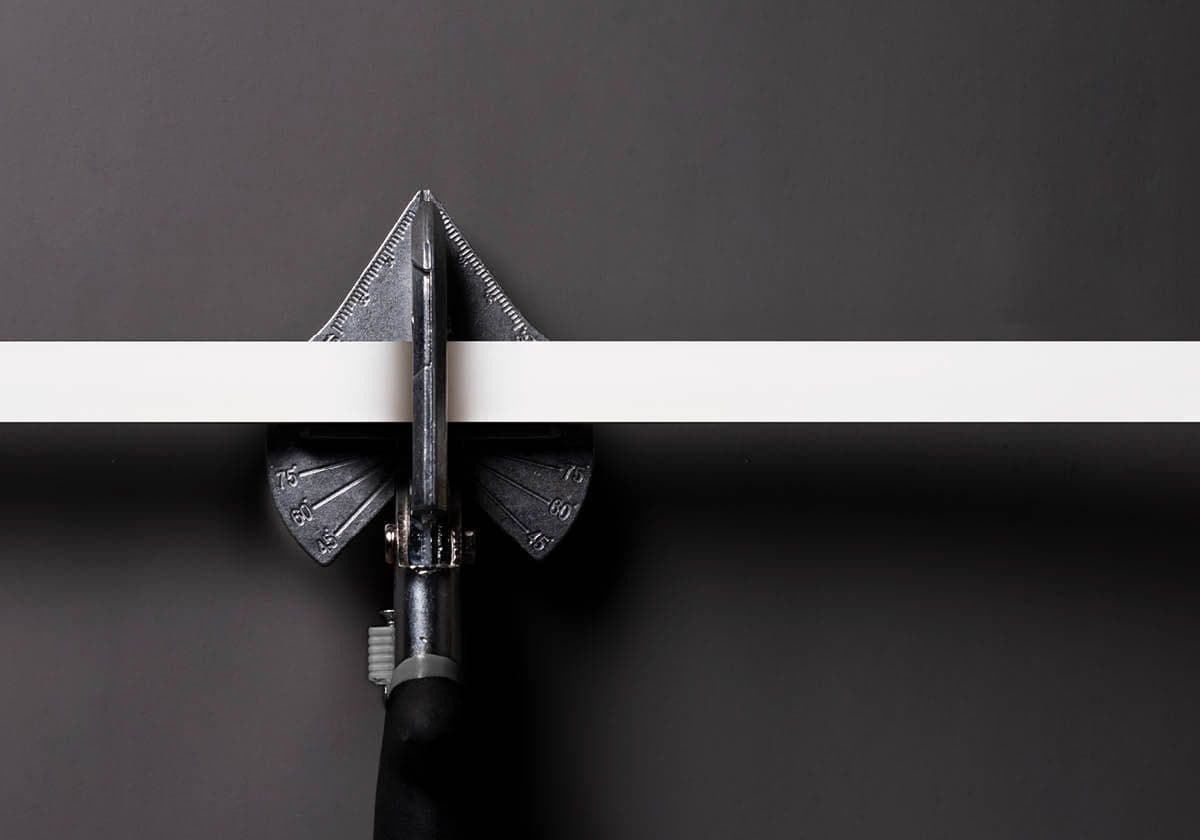

Hand-assembled with custom cut lengths service from our Australian fabrication facility to perfectly suit projects that require a quick turnaround.


2 sizes

Available in a standard (18mm width) and mini (~10mm width) to suit applications of different design and performance requirements.


High-grade silicone

The Aeon Flex Essential's high-grade silicone makes it UV-resistant with a lifetime of 5+ years and allows for longer run lengths


Tunable White

With the ability to match nature's colour temperatures via colour-tuning technology, the Tunable White feature allows for a more user-friendly approach following the natural circadian rhythm.

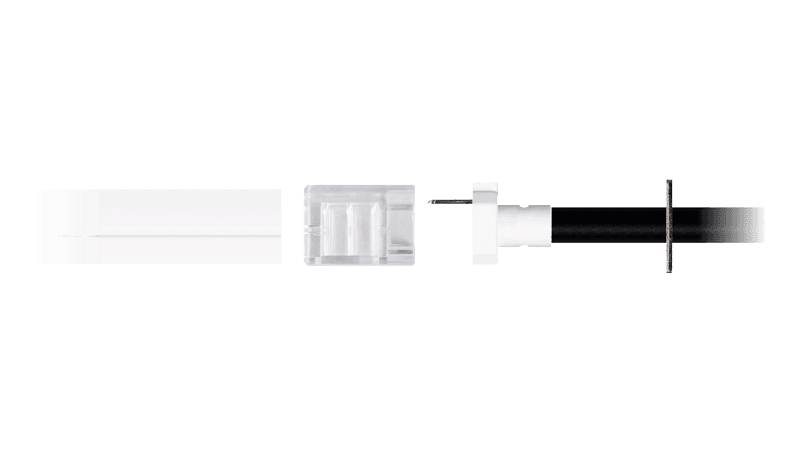

An extensive range of accessories

Feature a suite of accessories, the Aeon Flex's clip and extrusion accessories provide mounting options without the use of adhesive, supporting installation versatility and increased longevity.

Perfect for

Perfect For - Hospitality.jpeg
Hospitality
