Eclipse G2 Glide Linear Series

This series features the Mini, boasting a miniaturised slim profile, and the Glide S as the go-to option, with surface-mount, recessed and angled variations. The XL is suspendable profile with high output, featuring the "Invisimount" accessory that integrate suspension and power wire for a clean aesthetic, while the IP67 is perfect for facade and outdoor applications.

Part of the Eclipse collection

Available Models

Glide Mini GS10

  • LED Power:Up to 10W/m
  • Lumens:Up to 530lm/m
  • Beam:110°
Configure

Glide IP67 GI25T Recessed

  • LED Power:Up to 15W/m
  • Lumens:Up to 952lm/m
  • Beam:110°

Glide IP67 GI25 Surface Mounted

  • LED Power:Up to 15W/m
  • Lumens:Up to 952lm/m
  • Beam:110°

Glide S GR30 Recessed

  • LED Power:Up to 20W/m
  • Lumens:Up to 1143lm/m
  • Beam:110°

Glide S GS19 Surface Mounted

  • LED Power:Up to 20W/m
  • Lumens:Up to 1143lm/m
  • Beam:110°

Glide XL GS35 Surface Mounted

  • LED Power:Up to 30W/m
  • Lumens:Up to 1452lm/m
  • Beam:110°

Glide S GA27 45° Surface Mounted

  • LED Power:Up to 30W/m
  • Lumens:Up to 1573lm/m
  • Beam:110°

Glide XL GR45 Recessed

  • LED Power:Up to 30W/m
  • Lumens:Up to 1938lm/m
  • Beam:110°

Glide XL GS35U Direct/Indirect Suspended

  • LED Power:Up to 30W/m
  • Lumens:Up to 2077lm/m
  • Beam:110° | 150°

Glide IP67 GI40T Recessed

  • LED Power:Up to 30W/m
  • Lumens:Up to 2282lm/m
  • Beam:110°

Glide IP67 GI40 Surface Mounted

  • LED Power:Up to 30W/m
  • Lumens:Up to 2282lm/m
  • Beam:110°

Glide XL GS35U Direct Suspended

  • LED Power:Up to 30W/m
  • Lumens:Up to 3019lm/m
  • Beam:150°

Glide XL GS35U Direct Surface Mounted

  • LED Power:Up to 30W/m
  • Lumens:Up to 3298lm/m
  • Beam:150°

Specs

Finishes

  • Aluminium
  • Textured Black
  • Textured White

Colour rendering index (CRI)

  • 90+

Colour temperature

  • 2700K
  • 2700K-6500K
  • 3000K
  • 4000K
  • RGB
  • RGBW

IP rating

    Efficacy

    • Up to
      131.92lm/W

    Control

    • Dimmable
    • Non-dim

    SDCM

    • 3

    LED Lifetime

    • >54,000h L80B10

    Materials

    • Powder Coated Aluminium

    Resources

    Eclipse G2 Glide Linear Series3D ModelsZIP 27.5 KB

    Part of the Eclipse Collection

    As part of the Eclipse Collection, the Eclipse G2 Glide Linear Series boasts excellent colour rendering and durability, with various profiles to suit any architectural structure.

    Jackalope HotelMelbourne, Australia
    Queensland Museum 4.jpeg
    Queensland MuseumBrisbane, Australia
    Hallmarc Office_UNIOS20190826_9_257_Collins_Street_334.jpeg
    Hallmarc OfficeMelbourne, Australia
    UN_DoubleTree Northbridge-14.jpeg
    Bally StoreMelbourne, Australia
    Built Head OfficeSydney, Australia

    Lumen performance

    Delivers high output, making it an ideal solution for applications requiring high performance, efficiency and lumen efficacy.

    Lasting lifetime

    Offers a lasting lifetime and ensures the specified luminaire's performance is consistent until the end of the service life.

    Phase-cut driver

    Offers the ability to dim luminaires using the phase-cut dimming method.

    Crafted in Australia

    From our Perth-based fabrication facility, the luminaires are pre-assembled with custom leads and labelled ready for immediate installation on-site.

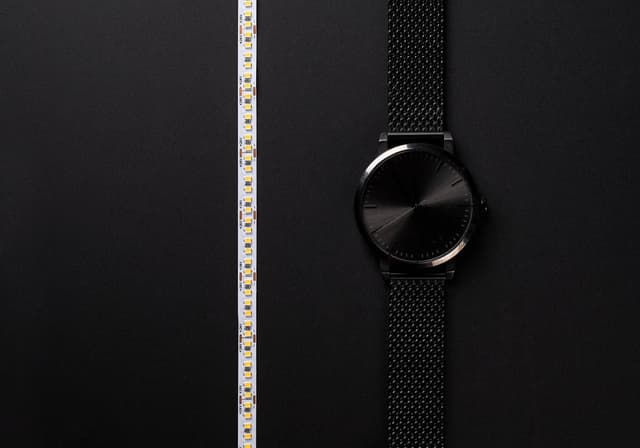

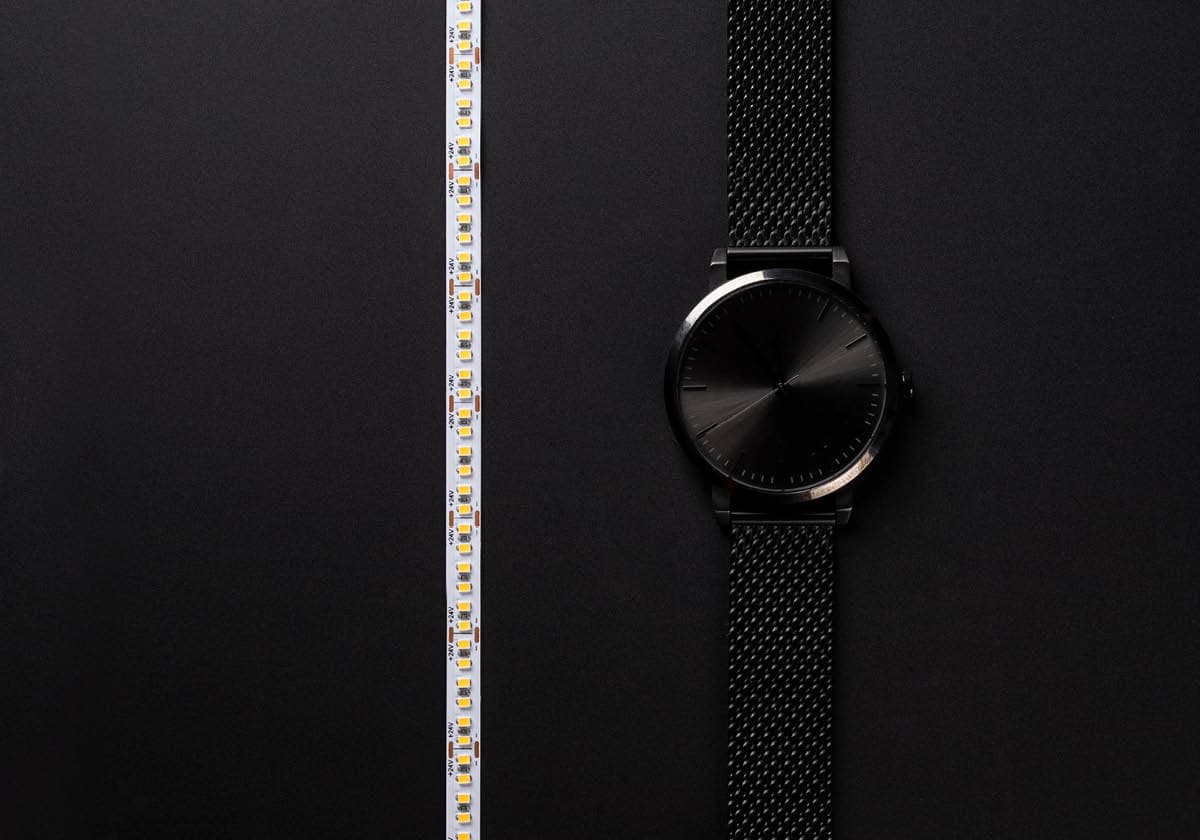

    Providingdot-freeilluminationwithhighdensity,superiorqualityLEDstrip

    Withgreatuniformity,theEclipseG2Glidecanbefabricatedtosuitanyapplication.TheEC6iscustomisabledownto20mmincrementswith300LEDs/m,whiletheEC10stripfeatures120LEDs/mandiscustomisabledownto25mmincrements.


    Various mounting options

    As a versatile linear series, the Eclipse Glide is perfect surface-mounted, with models designed to also be ideal in recessed applications, and an XL profile that's suspendable via the Invisimount canopy for a clean aesthetic.


    Eclipse Glide Mini

    The Eclipse G2 Glide Mini Profile is designed in a miniaturised profile to achieve exceptional performance and aesthetics, ideal for cabinetry spaces.

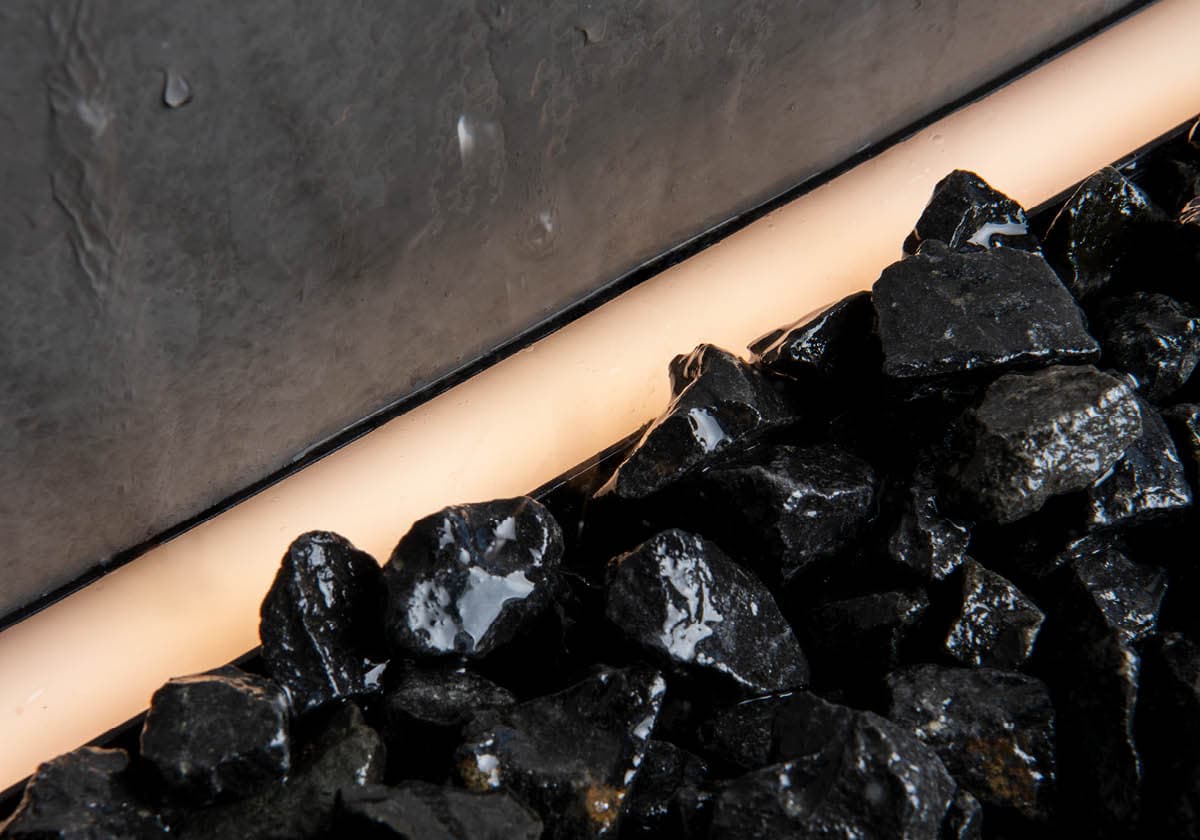

    Eclipse Glide IP67

    Eclipse G2 Glide IP67 Linear Series, with IP67 and IK10 ratings and a completely sealed profile, produces a fantastic effect on columns, walls and walkways, ideal for outdoor applications.


    Midnight diffuser

    Perfect for integration into darker interior features or as a standout feature. When off, the diffuser blends into its surrounding; when on, it becomes a clean line of light.


    Horizon diffuser

    With the horizon diffuser, the Eclipse G2 Glide Linear Series achieves broader light output or vertical illumination to improve the room's brightness and openness.

    CRI 90+

    Designed to maintain the object's natural colour with an outstanding colour performance at CRI 90+.

    RGB & RGBW

    Create striking lighting effects by producing almost any colour, including true representation of white, with RGBW.

    Tunable white

    Change colour temperatures throughout the day to assist the natural circadian rhythms with colour-tuning technology.
