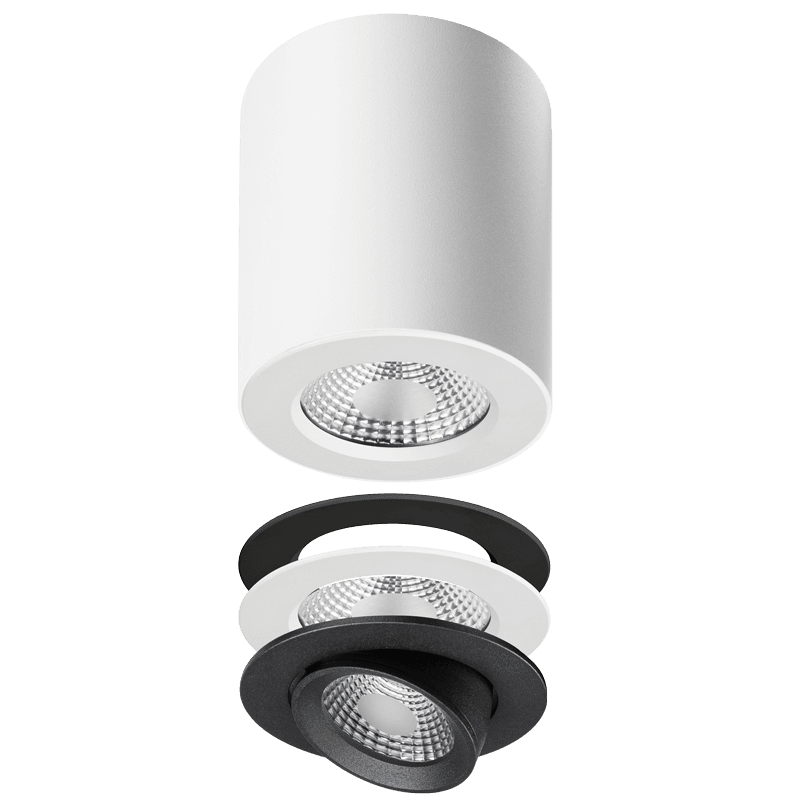

Apex Surface Mounted Downlight

From residential to commercial applications, the Apex Surface Mounted Downlight is an unrivalled match with its practicality and efficiency, proving a perfect fit with a plethora of power, size and accessory options. A new chip in the Apex Series improves the performance of an already superior downlight.

Part of the Apex collection

Product Summary

Available Models

Small (85mm)

  • LED Power:Up to 10W
  • Lumens:Up to 871lm
  • Beam:15° | 40° | 60° | 92°
Configure

Medium (105mm)

  • LED Power:Up to 15W
  • Lumens:Up to 1285lm
  • Beam:15° | 40° | 70° | 92°

Large (150mm)

  • LED Power:Up to 25W
  • Lumens:Up to 2511lm
  • Beam:15° | 40° | 60° | 75°

Specifications

Finishes

  • Textured Black
  • Textured Black/White
  • Textured White
  • Textured White/Black

Colour rendering index (CRI)

  • 90+
  • 92+

Colour temperature

  • 1800K-3000K
  • 2700K
  • 3000K
  • 4000K

IP rating

  • IP20

Efficacy

  • Up to
    100.44lm/W

Control

  • Casambi Bluetooth
  • DALI
  • Phase-cut dimmable
  • Phase Pulse

SDCM

  • 2
  • 3

LED Lifetime

  • >55,000h L80B10
  • >55,000h L90B10

Materials

  • Powder Coated Aluminium

Primary Optics

  • Frosted Diffuser
  • Linear Lens

Unified Glare Rating

  • <19
  • <25

Warranty

  • 5 Years

Class

  • Class I

Resources

Apex Surface Mounted Downlight3D ModelsZIP 5.0 MB

Illuminate with efficiency and versatility

The Apex Downlight offers exceptional practicality with various power, size and accessory options. Its new chip improves already superior performance.

COI compliance

Specific models are compliant with the Cyanosis Observation Index, suitable for visual detection of cyanosis in healthcare applications.

Dusk technology

Adjust the luminaire's colour temperature to mimic the dusk effect, fostering a comfortable ambience.

IP65 rating

Complete protection against dust and jets of water from all directions.
Unios - Tran Quang coffee 11.jpeg
Tran Quang Coffee FactoryBinh Duong, Vietnam
UNIOS_Melbourne Central_286_HDR.jpeg
Melbourne CentralMelbourne, Australia
Infinity Views_DSC_0815.jpeg
Owston Hill_DSC_1149-HDR.jpeg
Owston Hill ResidencePerth, Australia
UNIOS_KCAFC_Bayswater_194 copy.jpeg

Universal design philosophy

Not only engineered for performance, but the entire Unios product range is also meticulously designed to follow a minimalistic approach, providing a timeless and contemporary touch to every project.


Unios signature textured finishes

Carefully selected to meet the modern lighting and architectural design requirements, each of Unios's signature Textured White (RAL 9003), Black (RAL 9005) and Grey (RAL 9023) finish is created to provide a sense of coherence when multiple Unios fixtures are specified in a project.


Crafted in Australia

Our Crafted in Australia products are hand-assembled by Australian lighting fabricators to allow for customisations ranging from beam angles and optics to finishes and fascias.

Perfect for

Perfect For - Hospitality.jpeg
Hospitality
