Athena G2 Series

The Athena G2 Series is a highly efficient and versatile wall and ceiling luminaire option for commercial applications. Equipped with the latest lens technology, and a range of optical accessories, including a honeycomb louvre, linear lens, and asymmetrical baffle, the Athena G2 offers various lighting effects to enhance outdoor environments.

Part of the Athena G2 collection

Configure
Product Summary

Available Models

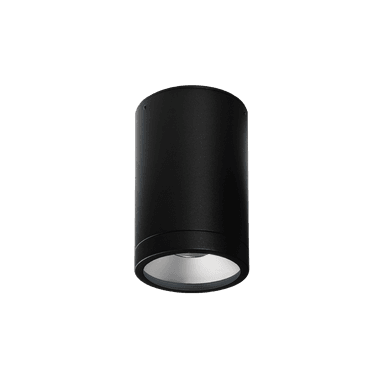

Surface Mounted Downlight

Surface Mounted Downlight

  • LED Power:Up to 18W
  • Lumens:Up to 2101lm
  • Beam:15° | 36° | 60°
Configure

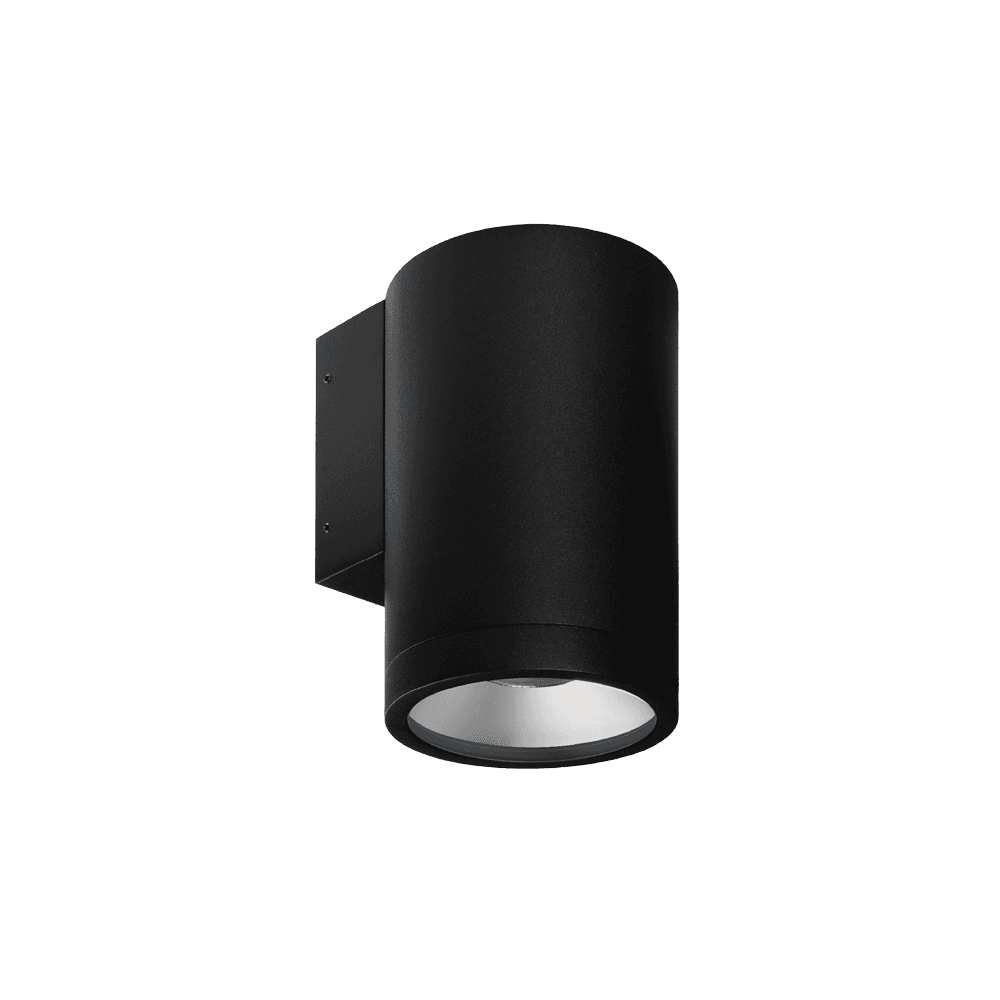

Fixed One Wall Light

Fixed One Wall Light

  • LED Power:Up to 18W
  • Lumens:Up to 2102lm
  • Beam:15° | 36° | 60°
Configure

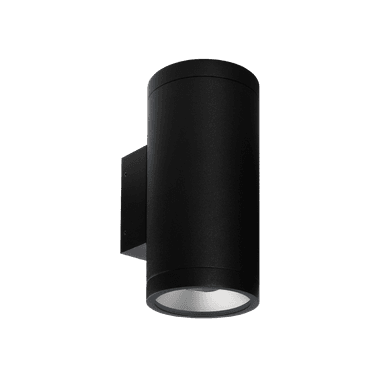

Fixed Two Wall Light

Fixed Two Wall Light

  • LED Power:Up to 28W
  • Lumens:Up to 3412lm
  • Beam:15° | 36° | 60°
Configure

Specifications

Finishes

  • Textured Black
  • Textured White

Colour rendering index (CRI)

  • 80+

Colour temperature

  • 3000K
  • 4000K

IP rating

  • IP66

Efficacy

  • Up to
    121.86lm/W

Control

  • DALI
  • Phase-cut dimmable

SDCM

  • 2

LED Lifetime

  • >55,000h L90B10

Materials

  • Powder Coated Aluminium

Primary Optics

  • Asymmetric Wallwasher
  • Honeycomb Louvre
  • Linear Lens

Warranty

  • 5 Years

Impact Protection (IK)

  • 10

Class

  • Class I

Resources

Athena G2 Series3D ModelsZIP 5.2 MB

A versatile wall and ceiling light

In addition to a wide range of beam options and optical accessories, the Athena Collection offers industry-leading colour consistency and high resistance to impact and corrosion, ideal for outdoor applications.

Low glare

Ensures minimal glare even when performing at high output for maximum visual comfort.

IK10 rating

Protection against an impact of 20J of force.

IP66 rating

Complete protection against dust and high-pressure jets of water from all directions, similar to heavy seas.

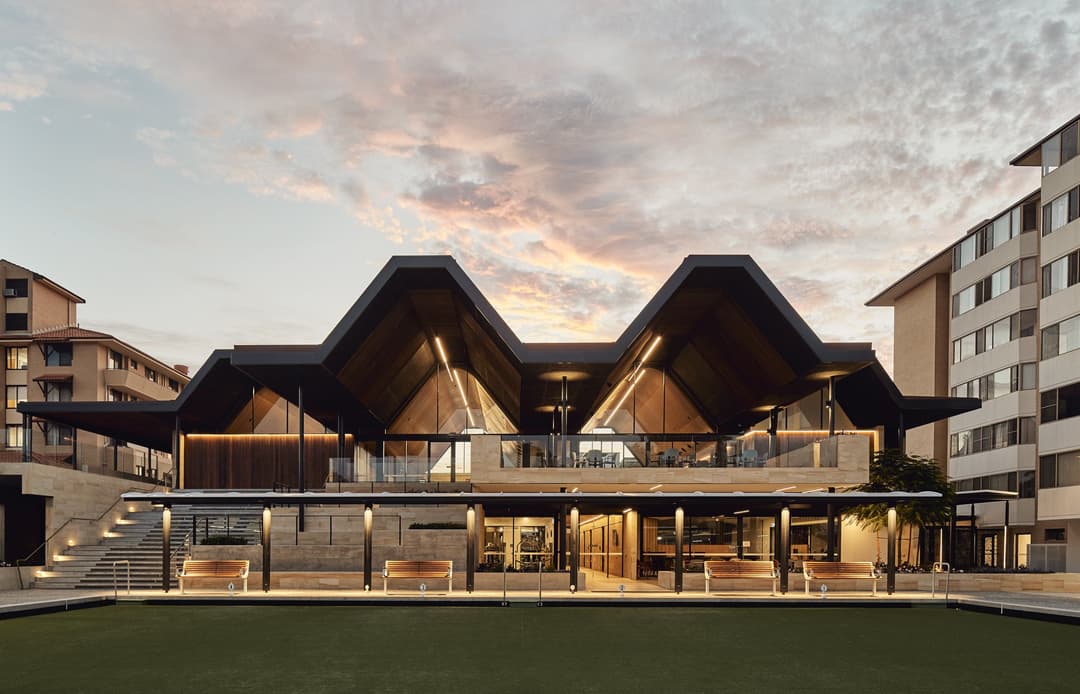

200116 Swan Care Ningana 1171.jpeg
SwanCarePerth, Australia

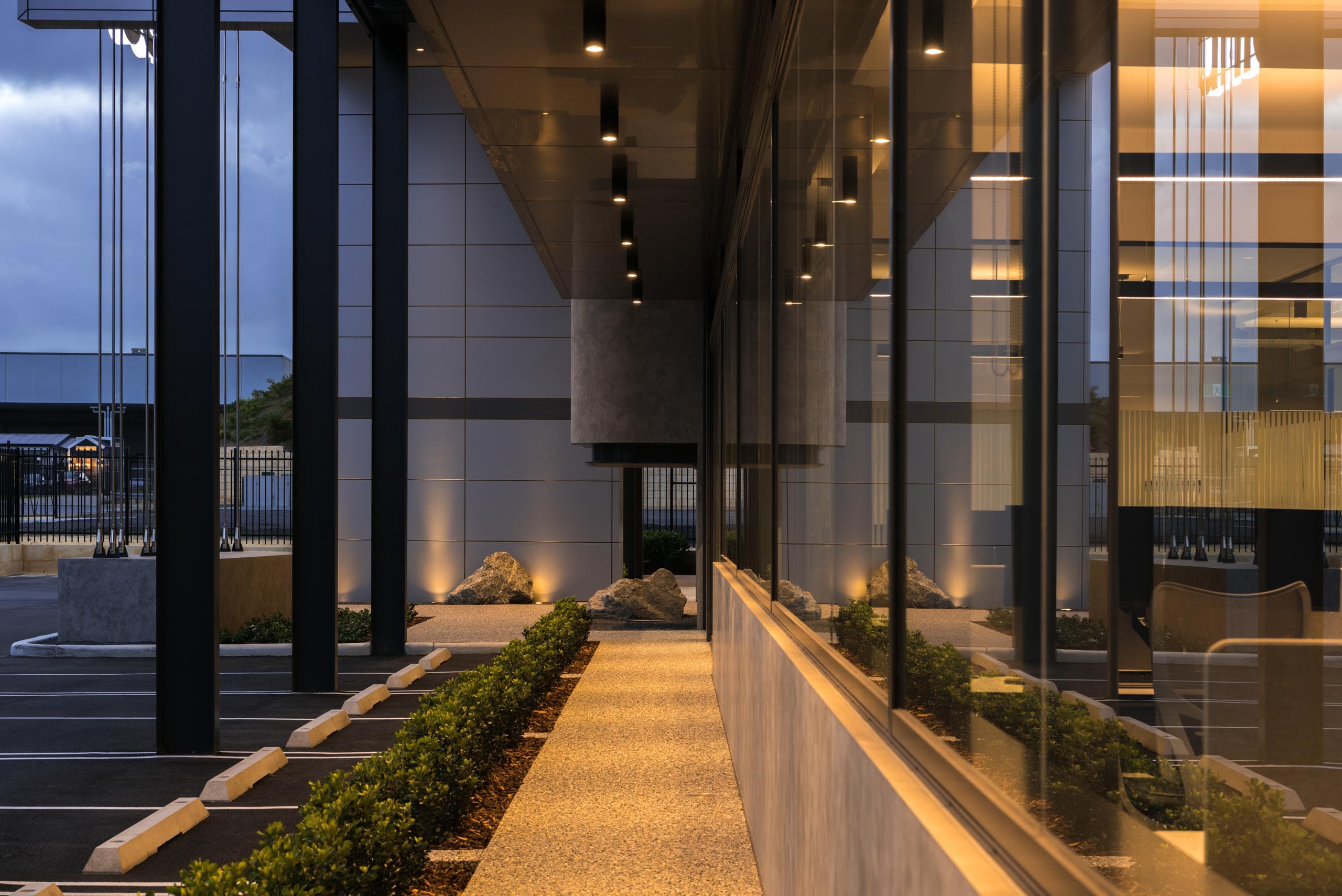

Boom St HQ_DSC_4588.jpeg
Unios HQPerth, Australia
Boom St HQ_DSC_4582.jpeg
Unios HQPerth, Australia

An extensive range of accessories and optics

Discover new ways to light with our range of extensive beam options. Customise the Athena to deliver the right lighting effect for your projects.


Simple installation

In addition to built-in DALI, the Athena G2 Series also allows separate installation of electric components and luminaires, ensuring safety and convenience in installations.


Crafted in Australia

Our Crafted in Australia products are hand-assembled by Australian lighting fabricators to allow for customisations ranging from beam angles and optics to finishes and fascias.

Built-in DALI

Opt for the integral DALI driver offering individual luminaire control for installation and operation convenience.

Lasting lifetime

Offers a lasting lifetime and ensures the specified luminaire's performance is consistent until the end of the service life.

SDCM≤2

Meets the industry's highest colour consistency standard in LED lighting for assured colour consistency over the product's operational lifetime.

Perfect for

Perfect For - Hospitality.jpeg
Hospitality
