Athena Max Series

Engineered and designed for those occasions when you need maximum output for the outdoors, the Athena Max Series offers exceptional lumen efficacy with high resistance to impact and corrosion. When configured with the catenary accessory, the Athena Max can be suspended from cables, perfect for public spaces and outdoor entertainment areas.

Part of the Athena collection

Product Summary

Available Models

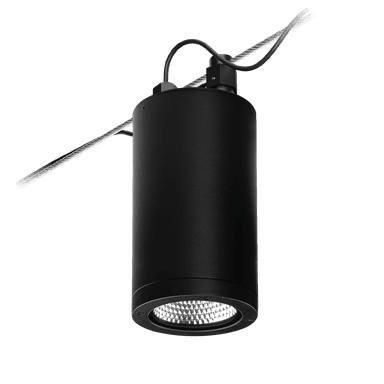

Catenary Light

  • LED Power:Up to 38W
  • Lumens:Up to 3873lm
  • Beam:15° | 36° | 60°
Configure

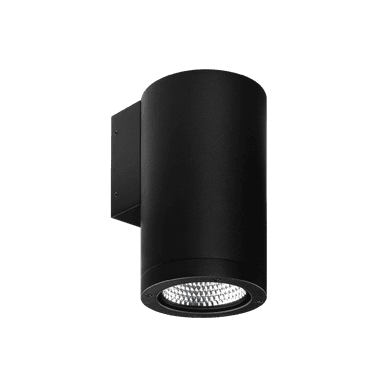

Fixed One Wall Light

  • LED Power:Up to 38W
  • Lumens:Up to 3873lm
  • Beam:15° | 36° | 60°

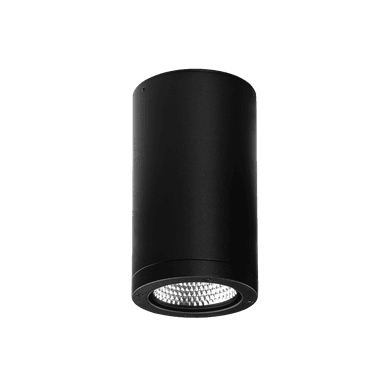

Surface Mounted Downlight

  • LED Power:Up to 38W
  • Lumens:Up to 3873lm
  • Beam:15° | 36° | 60°

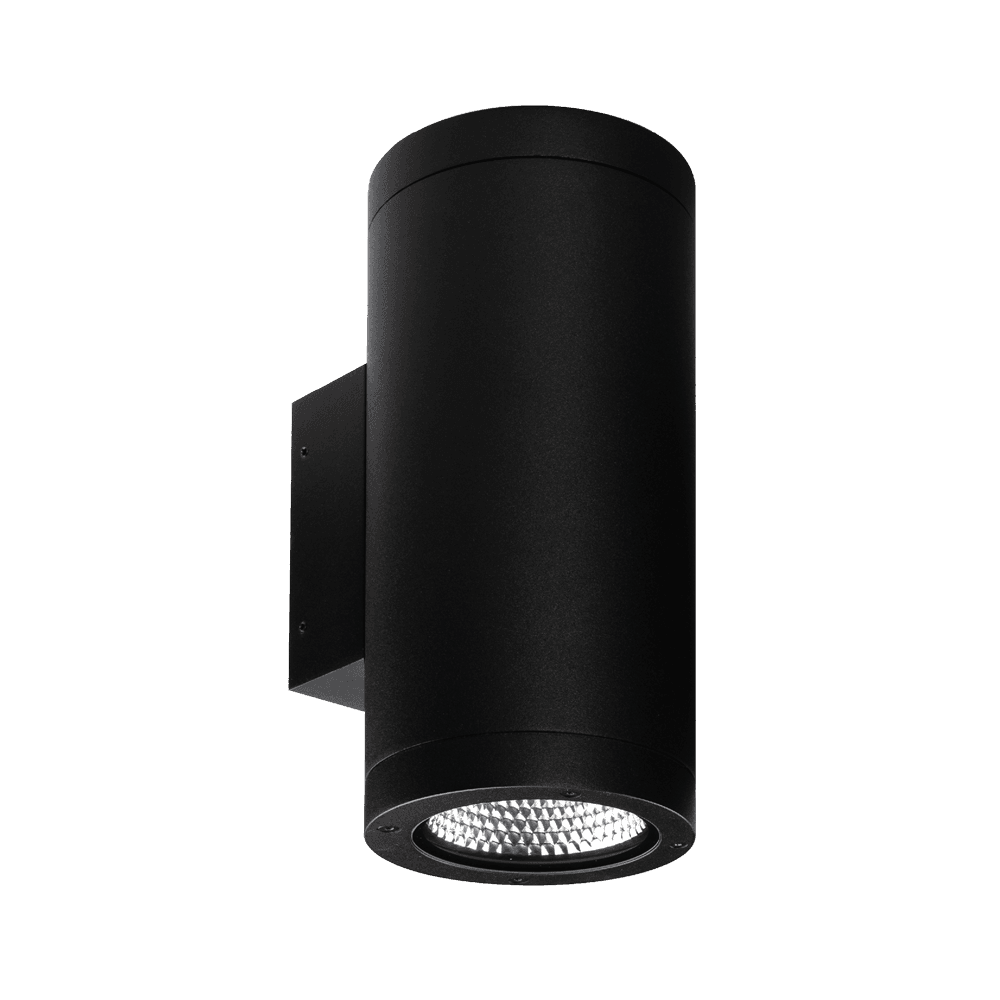

Fixed Two Wall Light

  • LED Power:Up to 38W
  • Lumens:Up to 3874lm
  • Beam:15° | 36° | 60°

Specifications

Finishes

  • Textured Black
  • Textured White

Colour rendering index (CRI)

  • 80+

Colour temperature

  • 3000K
  • 4000K

IP rating

  • IP66

Efficacy

  • Up to
    101.95lm/W

Control

  • DALI
  • Phase-cut dimmable

SDCM

  • 2

LED Lifetime

  • >55,000h L90B10

Materials

  • Powder Coated Aluminium

Primary Optics

  • Honeycomb Louvre
  • Linear Lens

Warranty

  • 5 Years

Impact Protection (IK)

  • 10

Class

  • Class I

Resources

Athena Max Series3D ModelsZIP 10.7 MB

A versatile wall and ceiling light

In addition to a wide range of beam options and optical accessories, the Athena Collection offers industry-leading colour consistency and high resistance to impact and corrosion, ideal for outdoor applications.

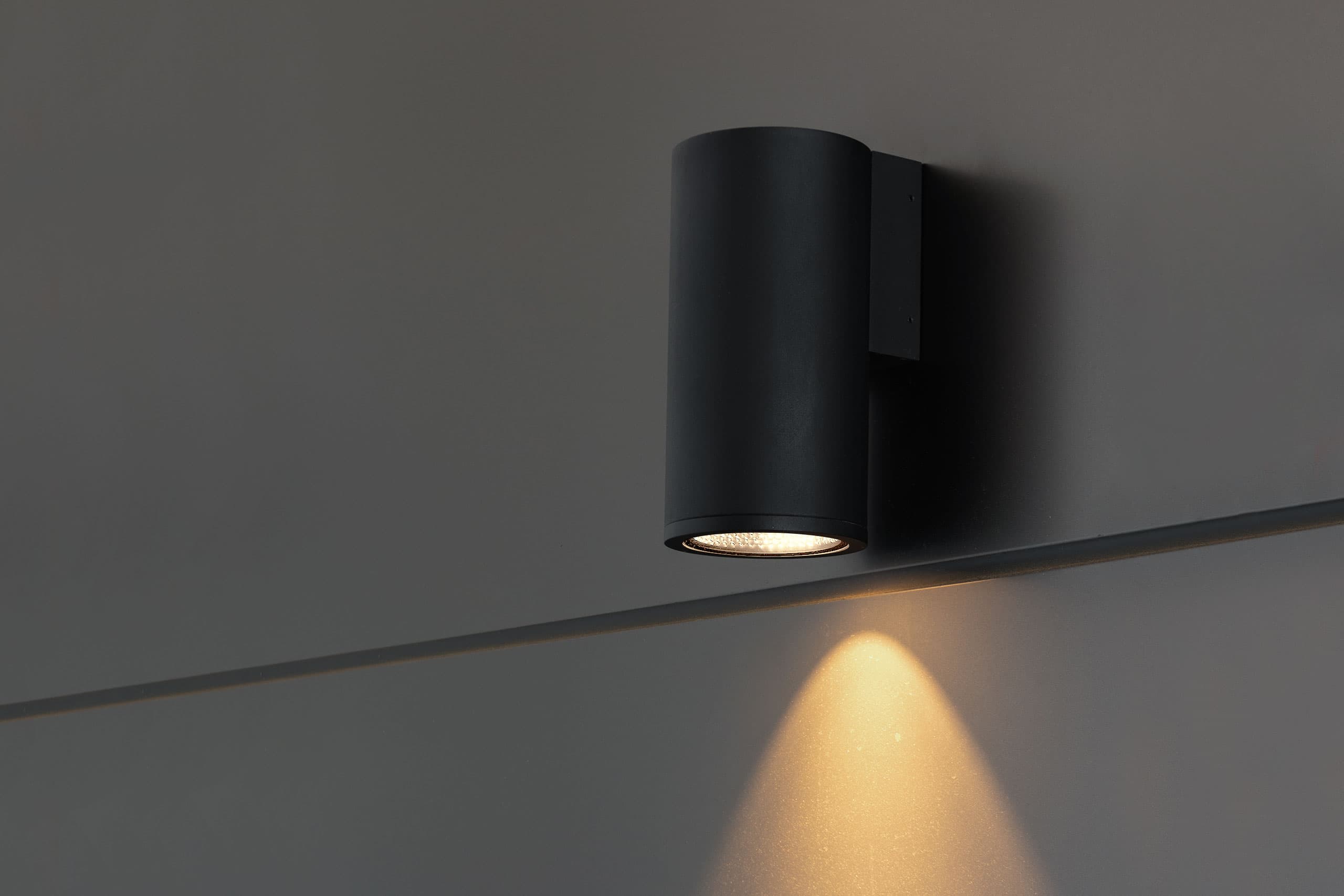

Low glare

Ensures minimal glare even when performing at high output for maximum visual comfort.

IK10 rating

Protection against an impact of 20J of force.

IP66 rating

Complete protection against dust and high-pressure jets of water from all directions, similar to heavy seas.

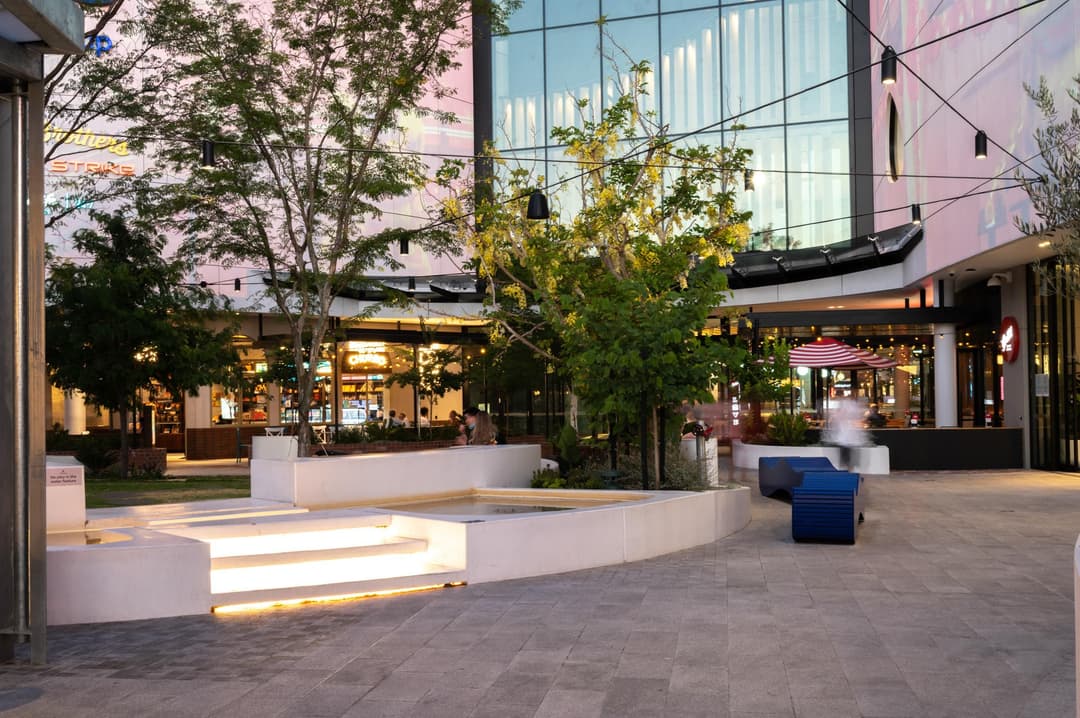

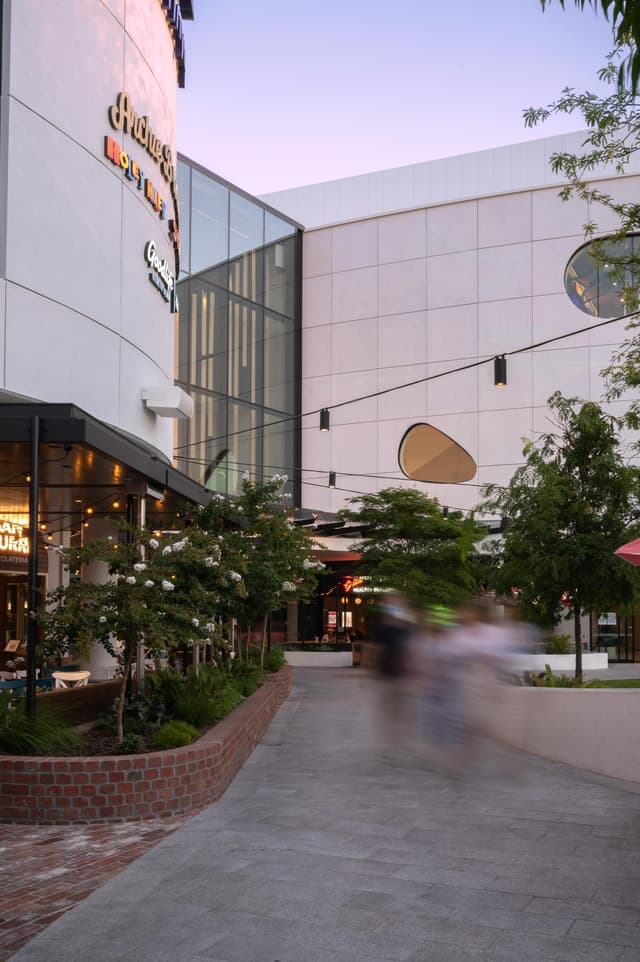

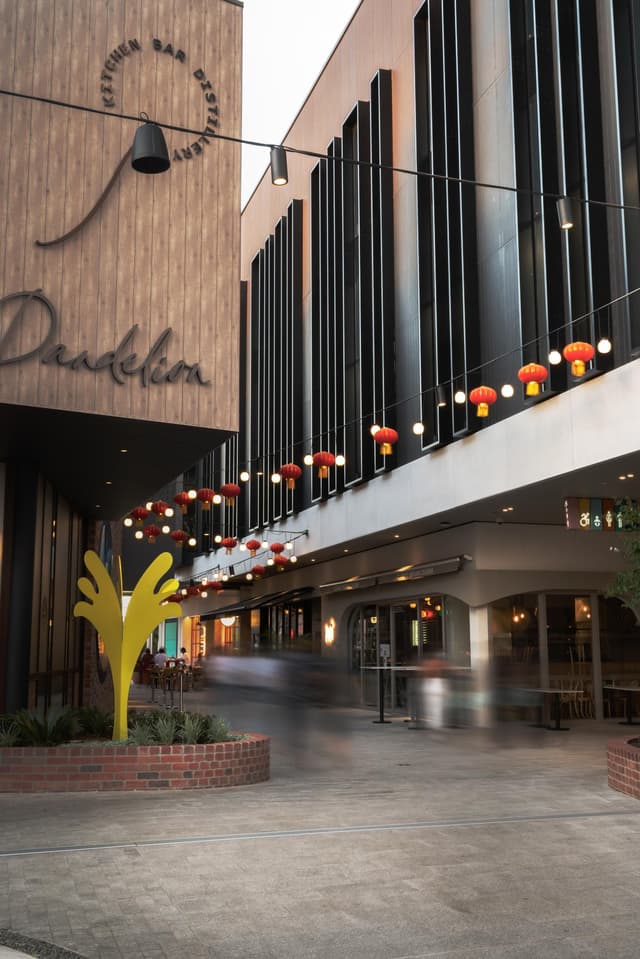

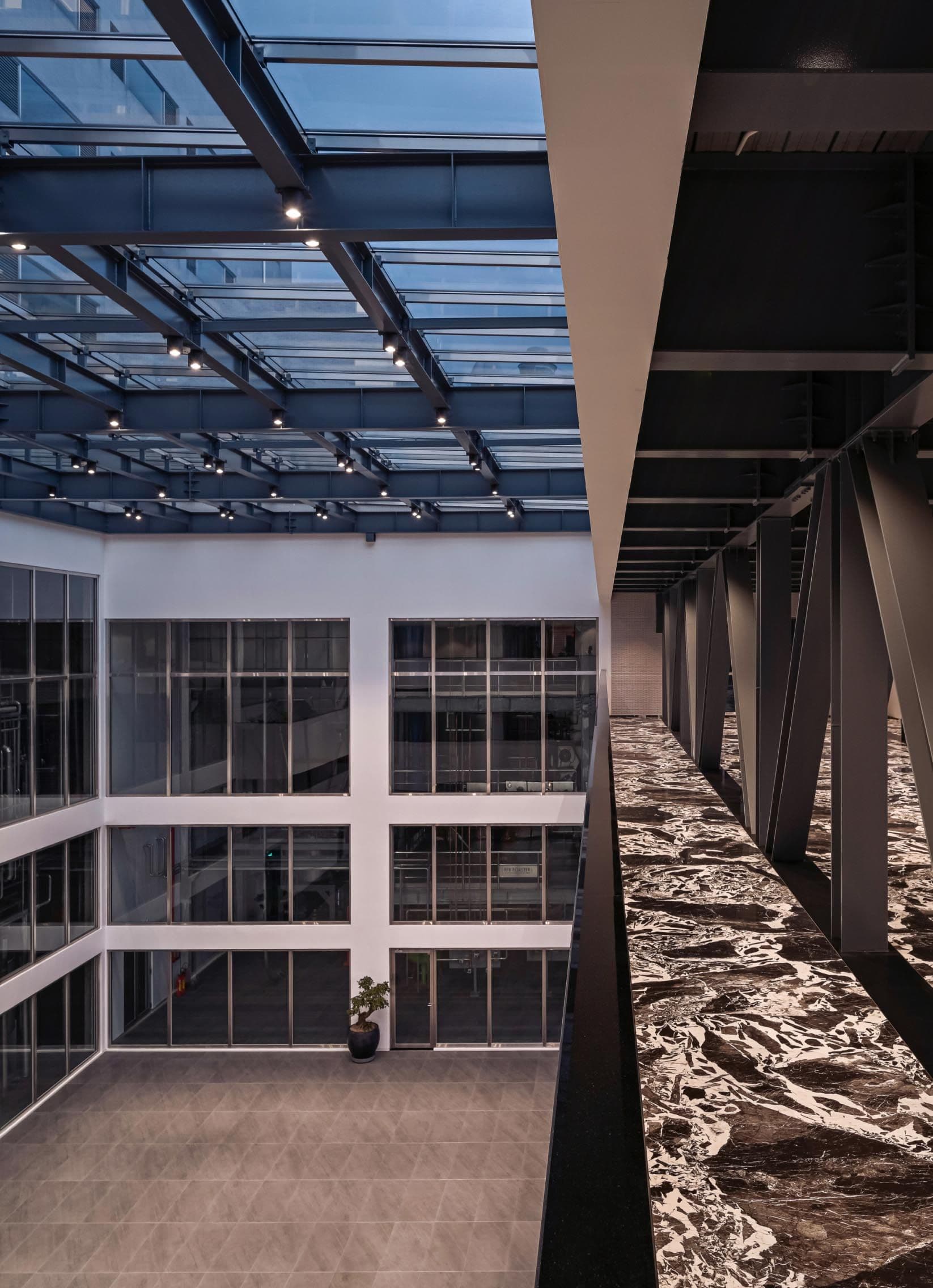

KarrinyupPerth, Australia
KarrinyupPerth, Australia
KarrinyupPerth, Australia
KarrinyupPerth, Australia

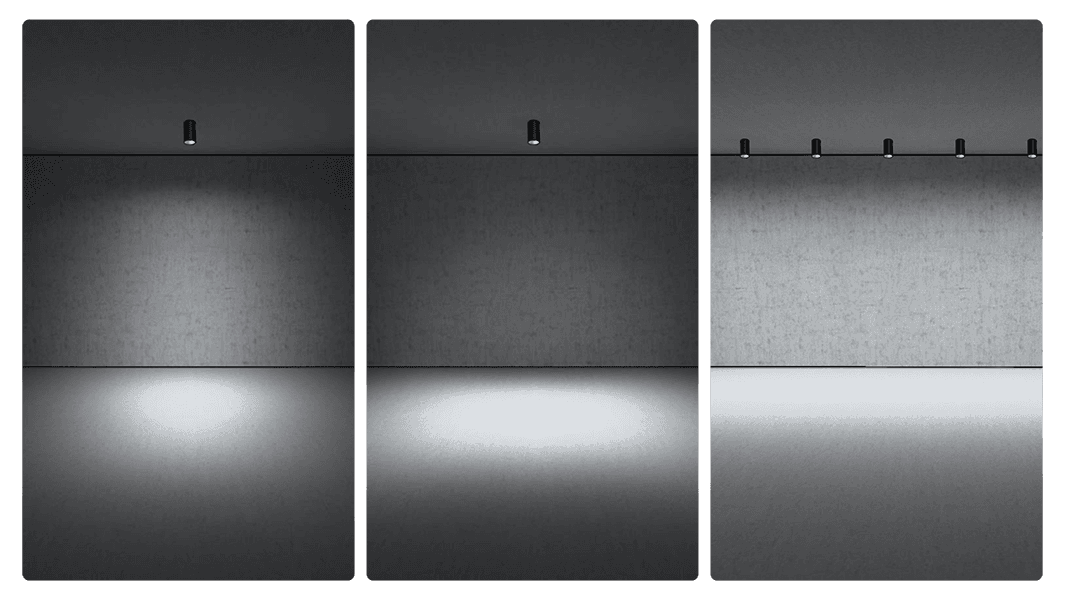

An extensive range of accessories and optics

Discover new ways to light with our range of extensive beam options. Customise the Athena to deliver the right lighting effect for your projects.

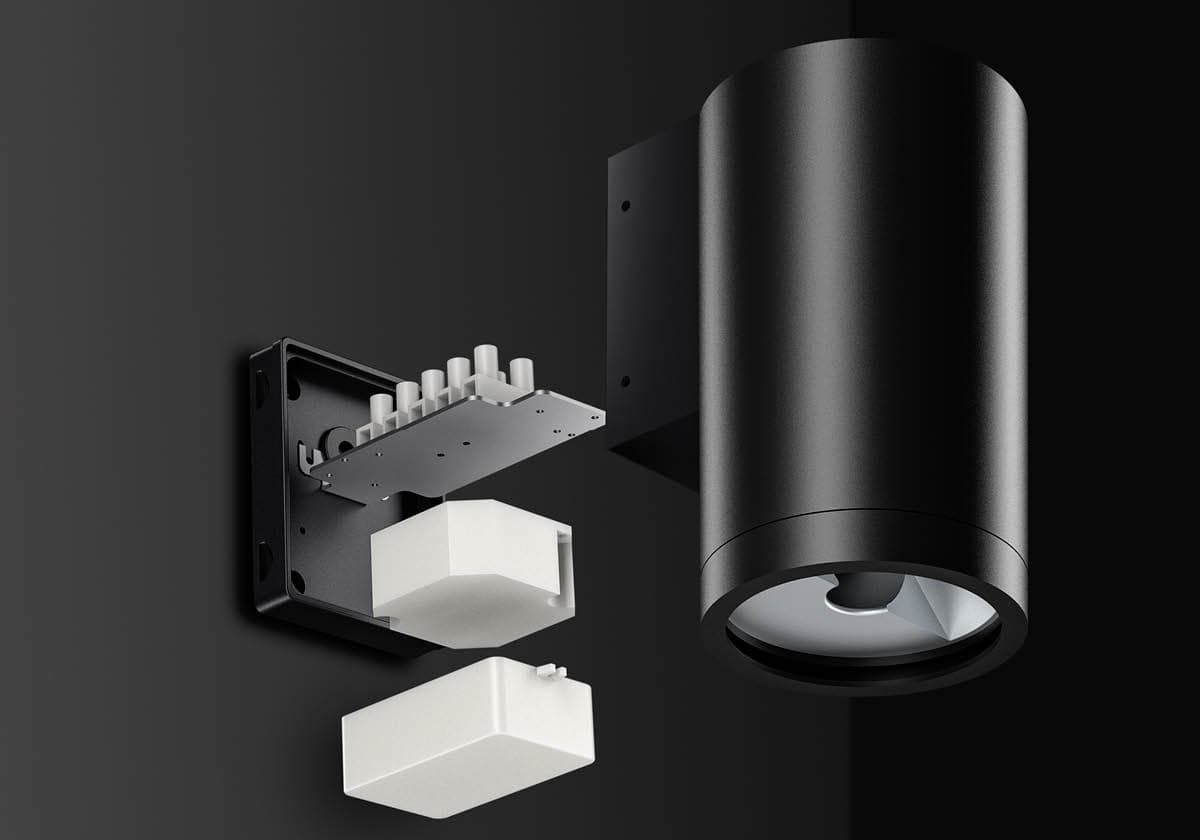

Simple installation

In addition to built-in DALI, the Athena Max Series also allows separate installation of electric components and luminaires, ensuring safety and convenience in installations

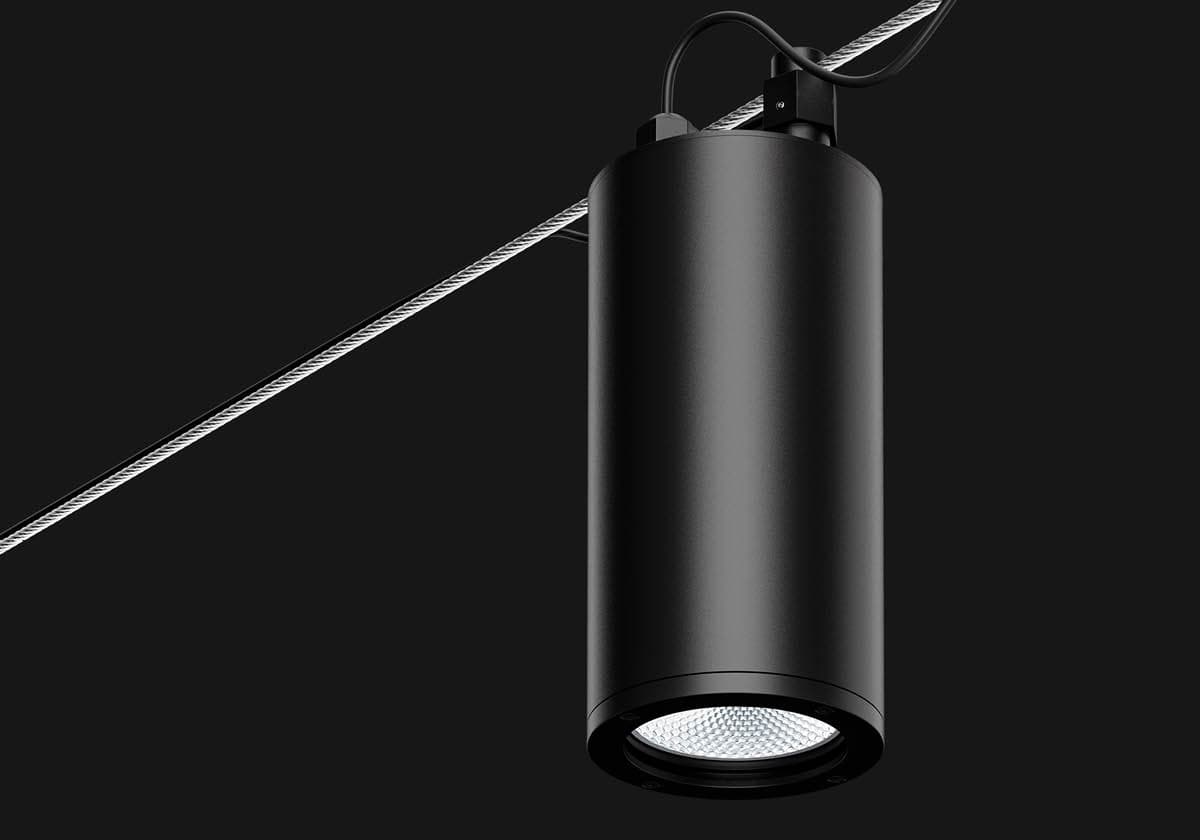

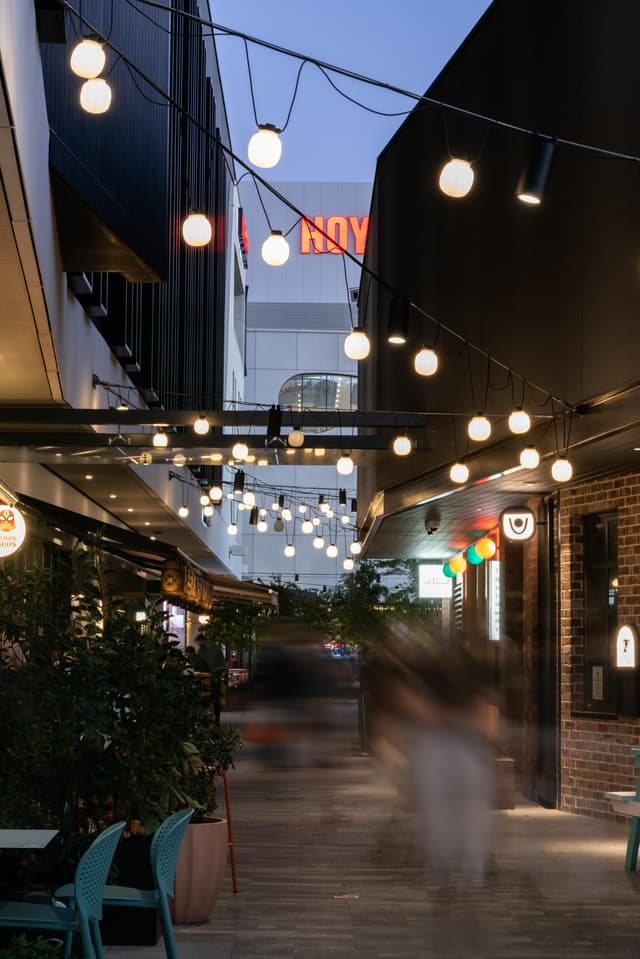

Catenary mounting

The catenary accessory allows the Athena to be suspended from cables, perfect for public spaces and outdoor entertainment areas.

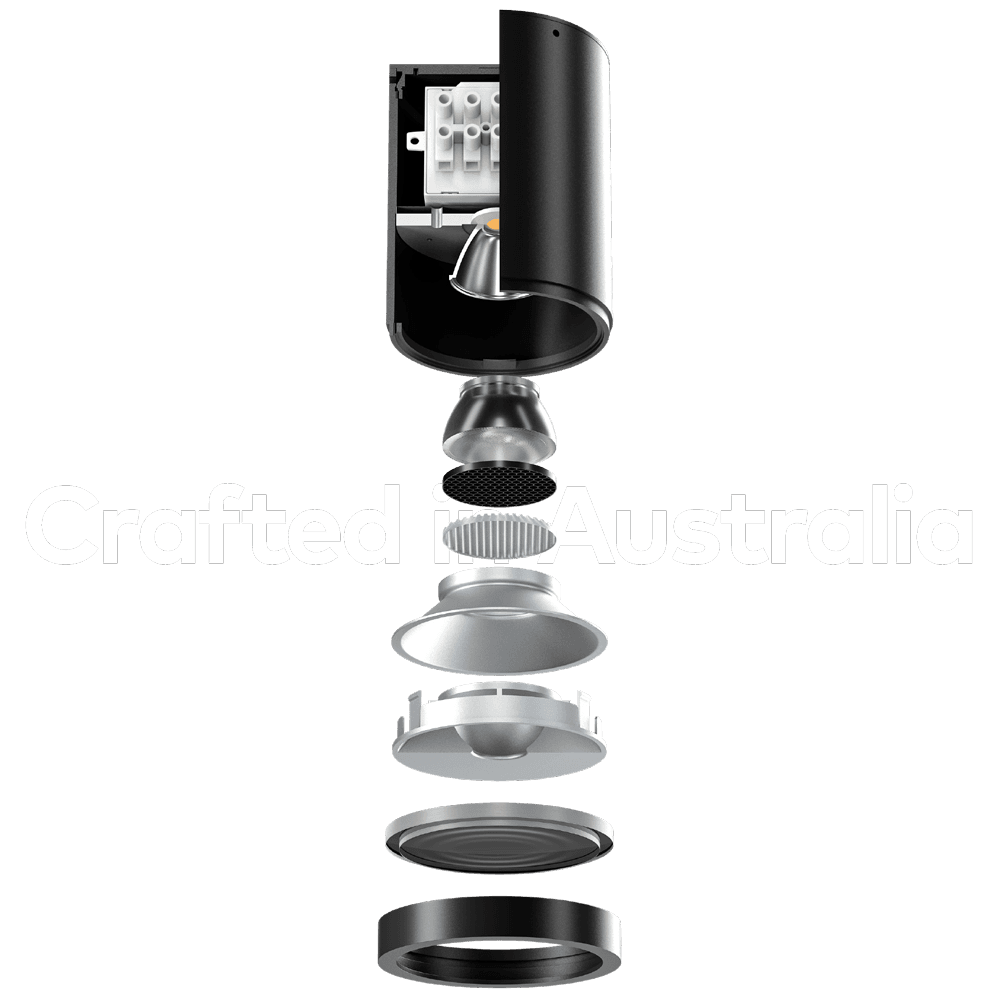

Crafted in Australia

Our Crafted in Australia products are hand-assembled by Australian lighting fabricators to allow for customisations ranging from beam angles and optics to finishes and fascias.

Built-in DALI

Opt for the integral DALI driver offering individual luminaire control for installation and operation convenience.

Lasting lifetime

Offers a lasting lifetime and ensures the specified luminaire's performance is consistent until the end of the service life.

SDCM≤2

Meets the industry's highest colour consistency standard in LED lighting for assured colour consistency over the product's operational lifetime.

Perfect for

Perfect For - Hospitality.jpeg
Hospitality
