Diamond G2 Essential Panel Light
Configure
In-situ
Product preview
Loading

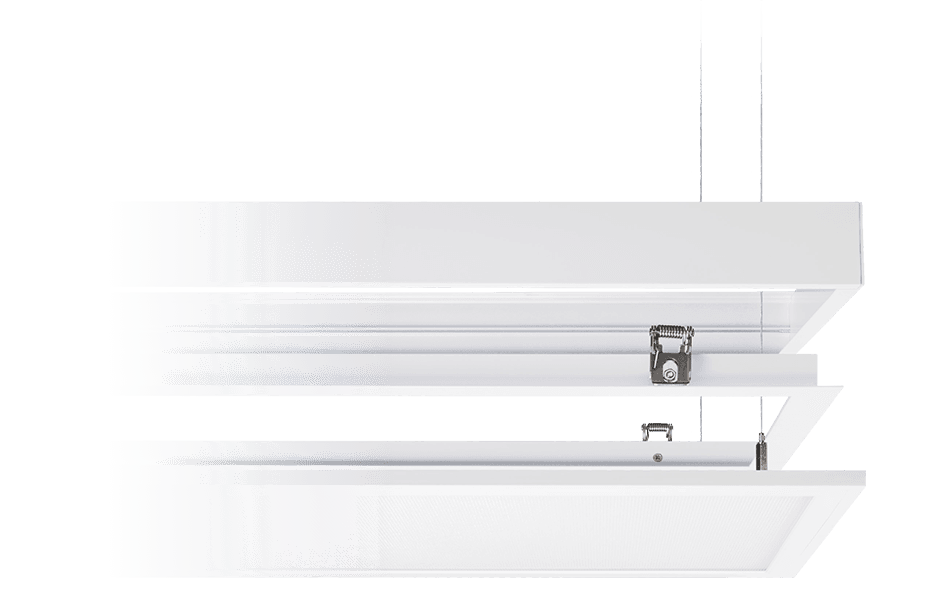

Diamond G2 Essential Panel Light

The Diamond G2 Panel Series is a completely reimagined interpretation of panel light. Designed to be efficient, versatile and with best-in-class longevity, the Diamond G2 Essential is equipped with the most advanced LED technology and a prismatic diffuser with an improved lumen efficacy and lifetime of >69,000h L80B10.

Please check availability your Unios distributor
Product Summary

Available Models

300x600 T-Bar

  • LED Power:Up to 17W
  • Lumens:Up to 1782lm
  • Beam:95°
Configure

300x600 Plaster

  • LED Power:Up to 17W
  • Lumens:Up to 1782lm
  • Beam:95°

300x600 Suspended

  • LED Power:Up to 17W
  • Lumens:Up to 1782lm
  • Beam:95°

300x600 Surface Mounted

  • LED Power:Up to 17W
  • Lumens:Up to 1782lm
  • Beam:95°

300x1200 T-Bar

  • LED Power:Up to 33W
  • Lumens:Up to 3553lm
  • Beam:95°

300x1200 Plaster

  • LED Power:Up to 33W
  • Lumens:Up to 3553lm
  • Beam:95°

300x1200 Suspended

  • LED Power:Up to 33W
  • Lumens:Up to 3553lm
  • Beam:95°

300x1200 Surface Mounted

  • LED Power:Up to 33W
  • Lumens:Up to 3553lm
  • Beam:95°

600x600 T-Bar

  • LED Power:Up to 33W
  • Lumens:Up to 3786lm
  • Beam:95°

600x600 Plaster

  • LED Power:Up to 33W
  • Lumens:Up to 3786lm
  • Beam:95°

600x600 Suspended

  • LED Power:Up to 33W
  • Lumens:Up to 3786lm
  • Beam:95°

600x600 Surface Mounted

  • LED Power:Up to 33W
  • Lumens:Up to 3786lm
  • Beam:95°

Specifications

Finishes

  • Matt White

Colour rendering index (CRI)

  • 90+

Colour temperature

  • 3000K
  • 4000K

IP rating

  • IP40

Efficacy

  • Up to
    114.73lm/W

Control

  • Casambi Bluetooth
  • DALI
  • Phase-cut dimmable
  • Phase Pulse
  • Non-dim

SDCM

  • 3

LED Lifetime

  • >50,000h L90B10

Materials

  • Powder Coated Aluminium
  • PS

Unified Glare Rating

  • <19

Warranty

  • 5 Years

Compatible accessories

  • Seismic Restraint Lanyard (2pcs/set)

Class

  • Class II

Resources

Diamond G2 Essential Panel Light3D ModelsZIP 1.5 MB

An essential, value-oriented panel light

The next generation of versatile panel light that is simplified and value-oriented. The Diamond Panel is an ideal source of general lighting for task-based environments.

5-year warranty

With a 5-year warranty, have extra peace of mind when specifying this luminaire for your project.

Lasting lifetime

Offers a lasting lifetime and ensures the specified luminaire's performance is consistent until the end of the service life.

Green Star and WELL Standards

Designed for comfort and wellbeing, suitable for any Green Star or WELL Certified projects.
Unios G2 Flicker Free.jpg

Flicker-free for wellness

Eliminating the impact of flicker, the Diamond promotes better health, well-being and improving concentration for occupants.

Perfect for

Perfect For - Aged Care.jpeg
Aged Care
