Diamond G2 IP44 Panel Light
Configure
In-situ
Product preview
Loading

Diamond G2 IP44 Panel Light

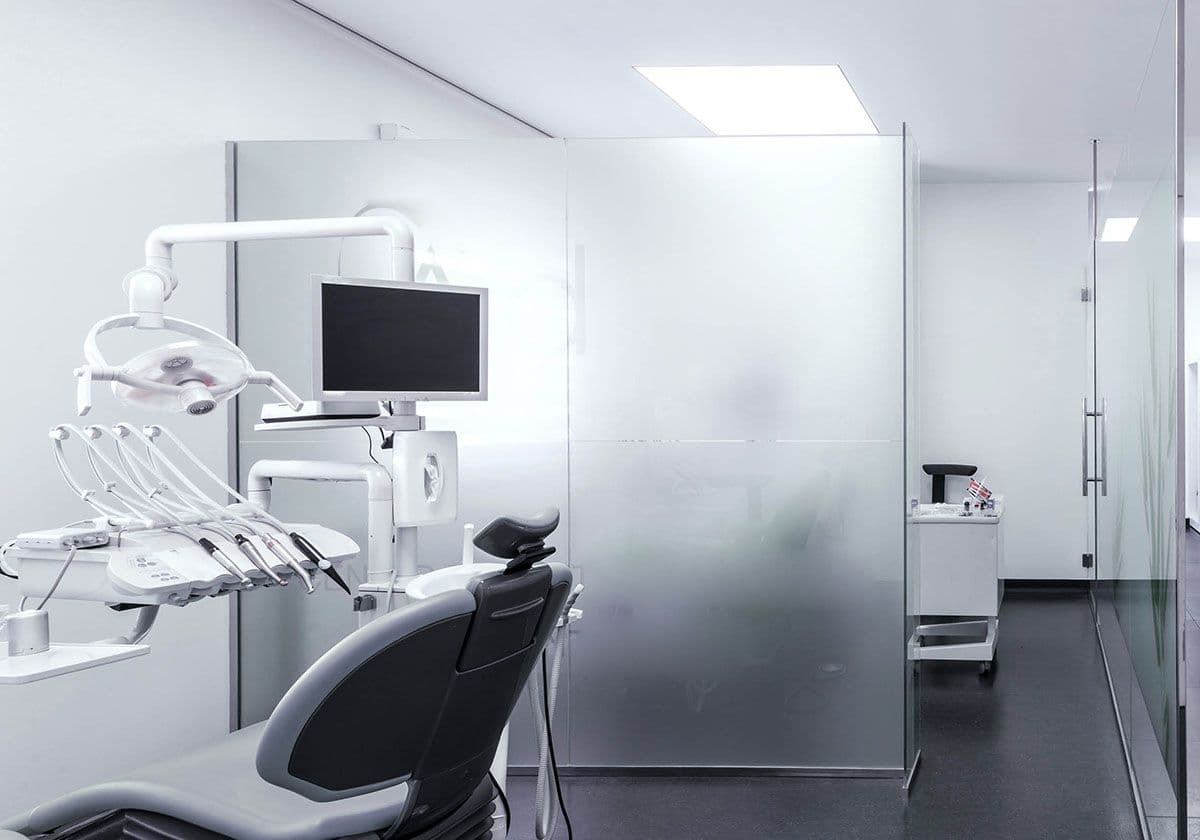

Efficiently versatile – the Diamond G2 Panel Series is designed for comfort and wellbeing with a CRI of 90+, making it suitable for any Green Star or WELL Certified projects. High-performing with best-in-class longevity of >51,000h L90B10, the Diamond G2 IP44 is made to adapt to various indoor lighting scenarios, from medical spaces to other commercial applications.

Please check availability your Unios distributor
Product Summary

Available Models

300x600 T-Bar

  • LED Power:Up to 17W
  • Lumens:Up to 1782lm
  • Beam:95°
Configure

300x600 Plaster

  • LED Power:Up to 17W
  • Lumens:Up to 1782lm
  • Beam:95°

300x600 Suspended

  • LED Power:Up to 17W
  • Lumens:Up to 1782lm
  • Beam:95°

300x600 Surface Mounted

  • LED Power:Up to 17W
  • Lumens:Up to 1782lm
  • Beam:95°

300x1200 T-Bar

  • LED Power:Up to 33W
  • Lumens:Up to 3553lm
  • Beam:95°

300x1200 Plaster

  • LED Power:Up to 33W
  • Lumens:Up to 3553lm
  • Beam:95°

300x1200 Suspended

  • LED Power:Up to 33W
  • Lumens:Up to 3553lm
  • Beam:95°

300x1200 Surface Mounted

  • LED Power:Up to 33W
  • Lumens:Up to 3553lm
  • Beam:95°

600x600 T-Bar

  • LED Power:Up to 33W
  • Lumens:Up to 3786lm
  • Beam:95°

600x600 Plaster

  • LED Power:Up to 33W
  • Lumens:Up to 3786lm
  • Beam:95°

600x600 Suspended

  • LED Power:Up to 33W
  • Lumens:Up to 3786lm
  • Beam:95°

600x600 Surface Mounted

  • LED Power:Up to 33W
  • Lumens:Up to 3786lm
  • Beam:95°

Specifications

Finishes

  • Matt White

Colour rendering index (CRI)

  • 90+

Colour temperature

  • 3000K
  • 4000K

IP rating

  • IP44

Efficacy

  • Up to
    114.73lm/W

Control

  • Casambi Bluetooth
  • DALI
  • Phase-cut dimmable
  • Phase Pulse
  • Non-dim

SDCM

  • 3

LED Lifetime

  • >50,000h L90B10

Materials

  • Powder Coated Aluminium
  • PS

Unified Glare Rating

  • <19

Warranty

  • 5 Years

Compatible accessories

  • Seismic Restraint Lanyard (2pcs/set)

Class

  • Class II

Resources

Diamond G2 IP44 Panel Light3D ModelsZIP 1.5 MB

A cyanosis-compliant panel option

The next generation of efficient and versatile panel light that promotes colour accuracy. The Diamond Panel is an ideal source of general lighting for task-based environments.

5-year warranty

With a 5-year warranty, have extra peace of mind when specifying this luminaire for your project.

CRI 90+

Designed to maintain the object's natural colour with an outstanding colour performance at CRI 90+.

Green Star and WELL Standards

Designed for comfort and wellbeing, suitable for any Green Star or WELL Certified projects.
Diamond Panel IP44.jpg

IP44 protection

Protected from solid particles that are over 1mm in size and from low velocity sprays of water from every direction, the Diamond is suitable for different indoor environments.

Unios G2 Flicker Free.jpg

Flicker-free for wellness

Eliminating the impact of flicker, the Diamond promotes better health, well-being and improving concentration for occupants.

Perfect for

Perfect For - Aged Care.jpeg
Aged Care
