FX 48V Orb Light

Available as a single pendant or two surface mounted glass spheres, the FX 48V Orb Light's 360° of gentle illumination and modern design make a stunning addition to any space. Safe to touch, the luminaire can be easily installed into the FX 48V Track system through a magnetic connector.

Part of the FX 48V collection

Please check availability your Unios distributor
Product Summary

Available Models

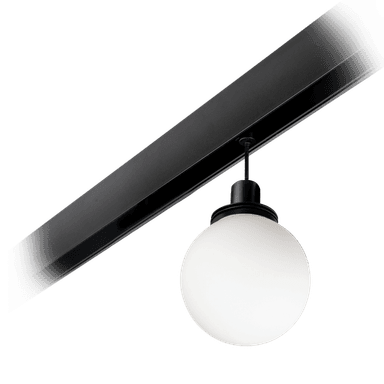

P100 2500mm Orb Pendant

  • LED Power:Up to 6W
  • Lumens:Up to 623lm
  • Beam:270°
Configure

P100 5000mm Orb Pendant

  • LED Power:Up to 6W
  • Lumens:Up to 623lm
  • Beam:270°

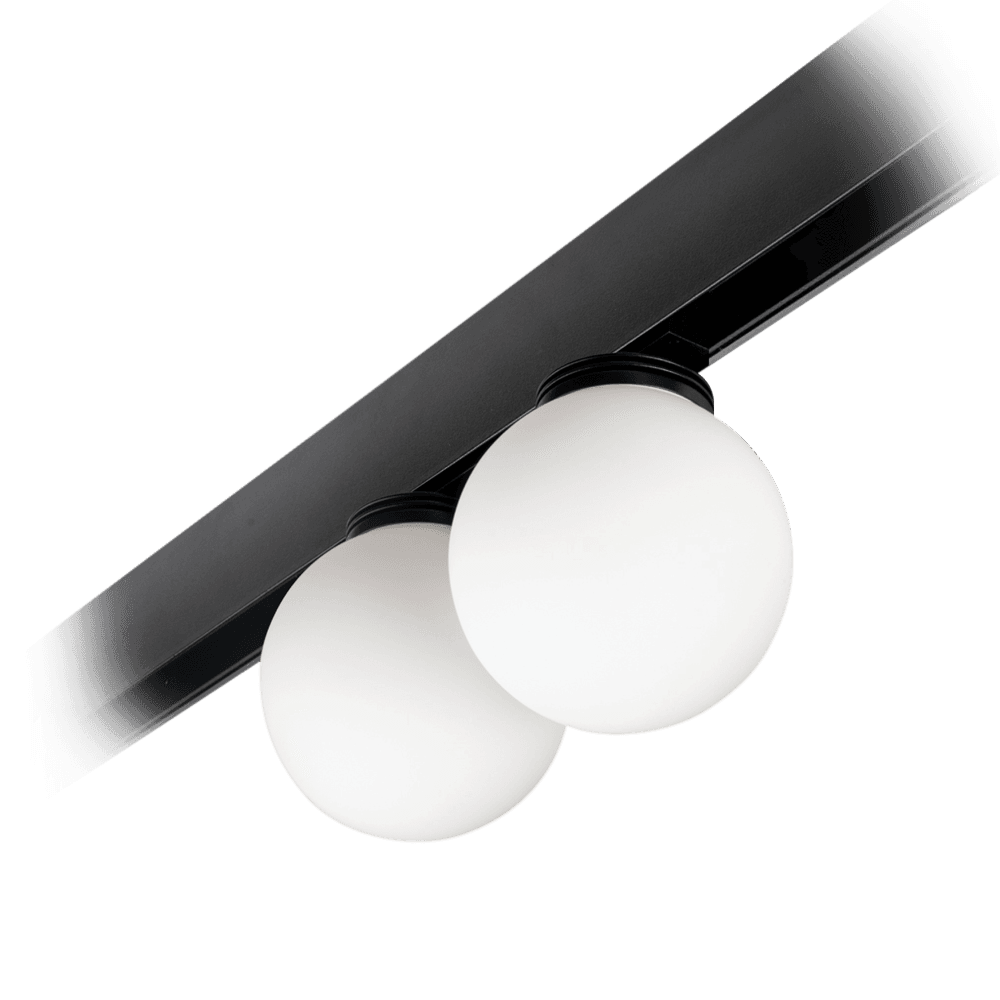

R100 Double Orb

  • LED Power:Up to 12W
  • Lumens:Up to 1228lm
  • Beam:270°

Specifications

Finishes

  • Textured Black
  • Textured White

Colour rendering index (CRI)

  • 90+

Colour temperature

  • 2700K
  • 3000K
  • 4000K

IP rating

  • IP20

Efficacy

  • Up to
    102.33lm/W

Control

  • 1-10V dimmable
  • Casambi Bluetooth
  • DALI

SDCM

  • 3

LED Lifetime

  • >56,000h L70B10
  • >60,000h L80B10

Materials

  • Powder Coated Aluminium

Primary Optics

  • Clear Lens

Warranty

  • 5 Years

Class

  • Class III

Resources

FX 48V Orb Light3D ModelsZIP 8.0 MB

Part of the FX Collection

Mix and match between 5 different luminaire options within the collection to create different lighting designs and effects, perfectly adaptable to your ever-changing lighting needs.

FX Orb-Feature2.jpg

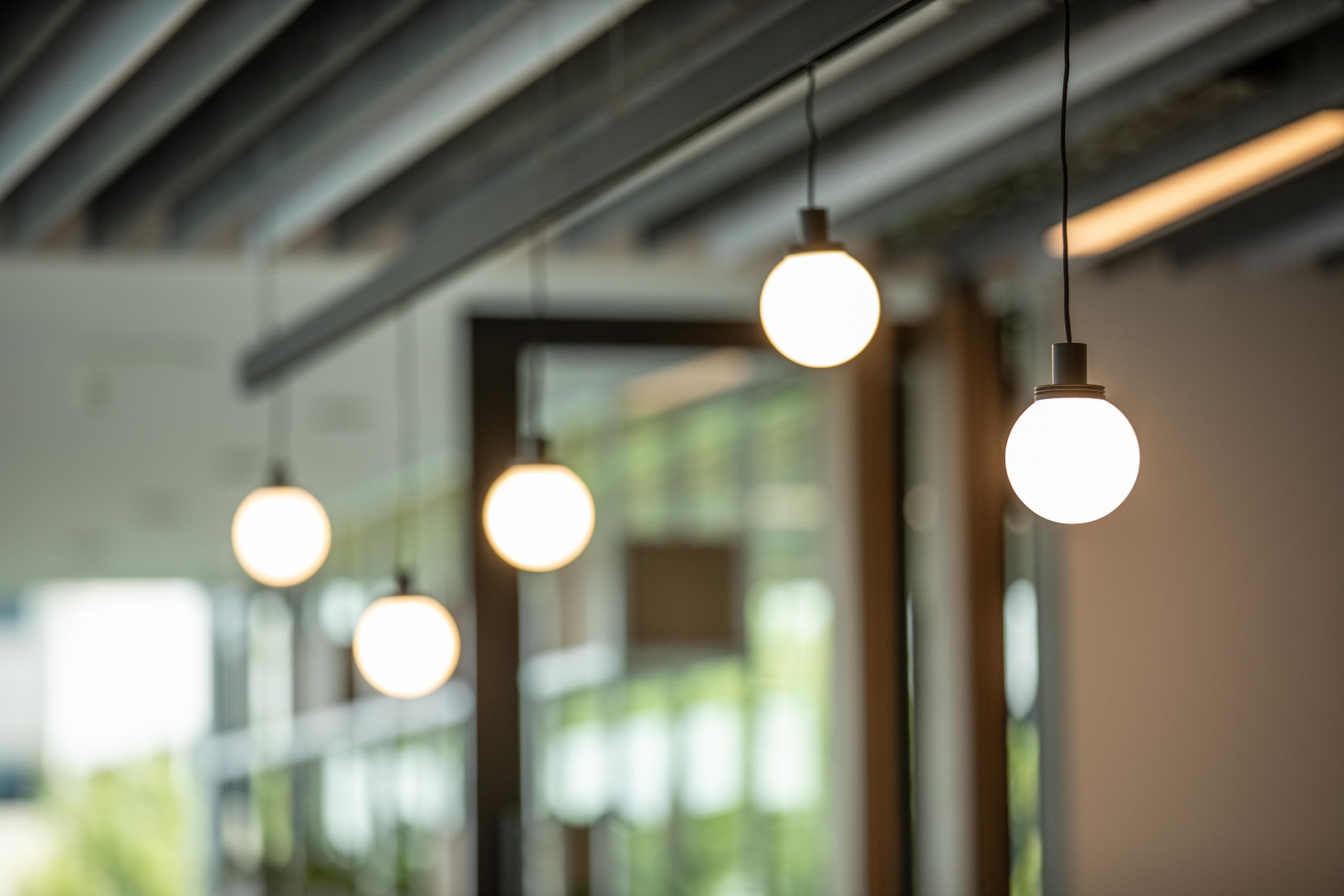

Orb Light

With 360° of gentle illumination, the Orb can be mounted or suspended in a setup of single or double glass spheres.


Safe to touch

As part of the FX Collection, the FX 48V Orb Light is safe to touch (SELV), allowing seamless luminaire changeability and ease of maintenance, perfect for wall and ceiling applications.

COI compliance

Specific models are compliant with the Cyanosis Observation Index, suitable for visual detection of cyanosis in healthcare applications.

CRI 90+

Designed to maintain the object's natural colour with an outstanding colour performance at CRI 90+.

Perfect for

Perfect For - Hospitality.jpeg
Hospitality
