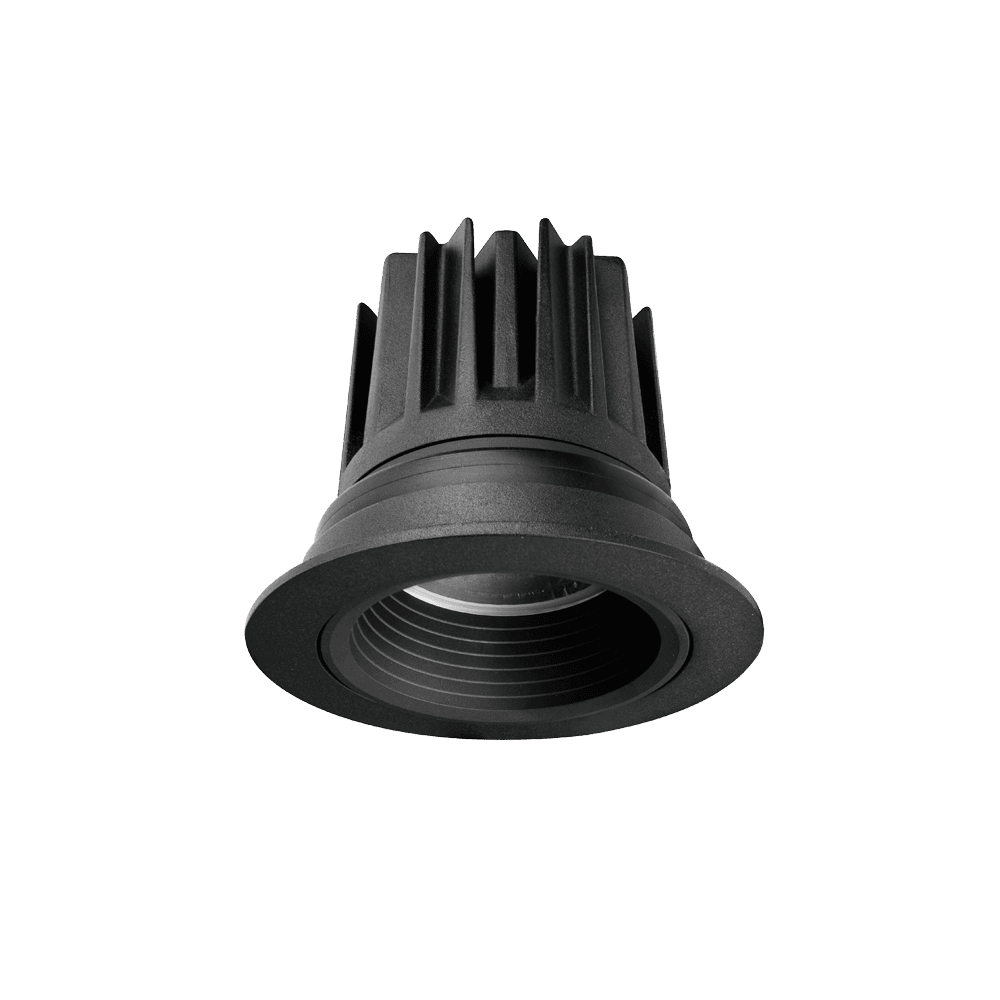

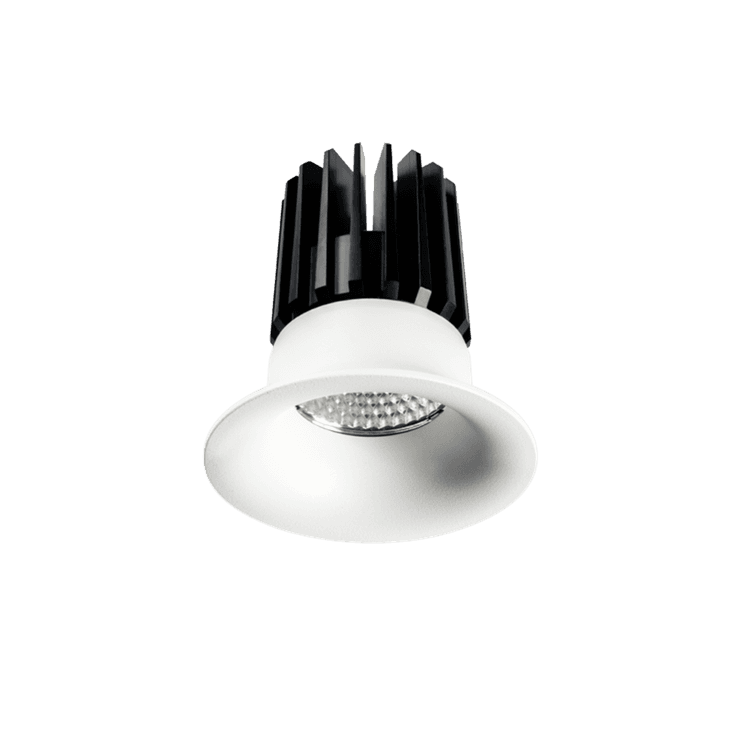

Particle Downlight

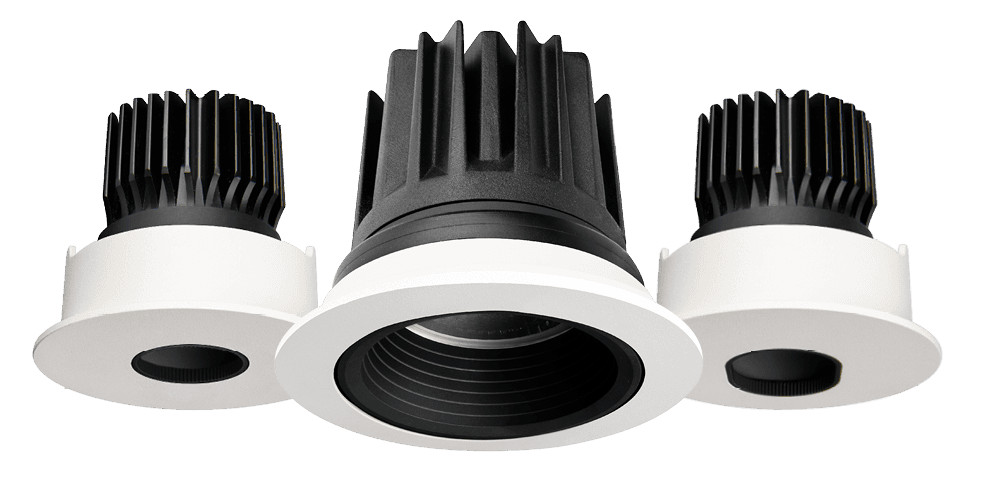

The Particle Downlight is the ultimate combination of form, function, and technology, available in four distinct sizes. With its deep-recessed design and precise lens technology, it creates comfortable environments with 20° of adjustability and beam angles of 15°, 24°, and 36°.

Part of the Particle collection

Please check availability your Unios distributor
Product Summary

Available Models

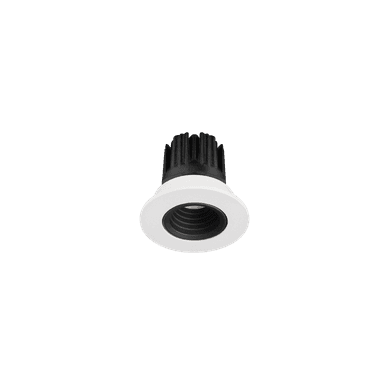

Micro (52mm)

  • LED Power:Up to 2W
  • Lumens:Up to 170lm
  • Beam:15° | 24° | 36°
Configure

Small (75mm)

  • LED Power:Up to 9W
  • Lumens:Up to 673lm
  • Beam:15° | 24° | 36°

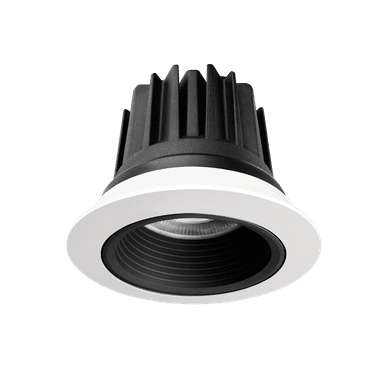

Medium (125mm)

  • LED Power:Up to 18W
  • Lumens:Up to 1933lm
  • Beam:15° | 24° | 36°

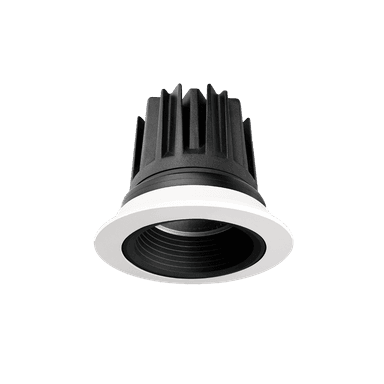

Large (150mm)

  • LED Power:Up to 30W
  • Lumens:Up to 2520lm
  • Beam:15° | 24° | 36°

Specifications

Finishes

  • Textured Black

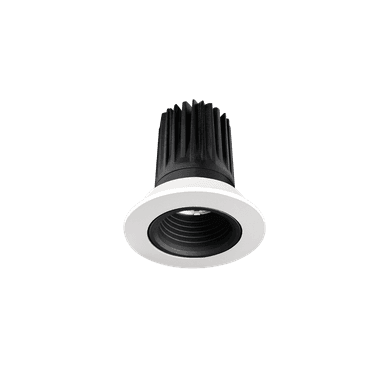

  • Textured White/Black

Colour rendering index (CRI)

  • 90+
  • 92+

Colour temperature

  • 2700K
  • 3000K
  • 4000K

IP rating

  • IP44

Efficacy

  • Up to
    84.00lm/W

Control

  • DALI
  • Phase-cut dimmable
  • Phase Pulse
  • Non-dim

SDCM

  • 2
  • 3

LED Lifetime

  • >50,000h L80B10
  • >55,000h L90B10

Materials

  • Powder Coated Aluminium

Unified Glare Rating

  • <10

Warranty

  • 5 Years

Class

  • Class II

Tilt

  • 20°

Rotation

    Resources

    Particle Downlight3D ModelsZIP 4.5 MB

    Part of the Particle Collection

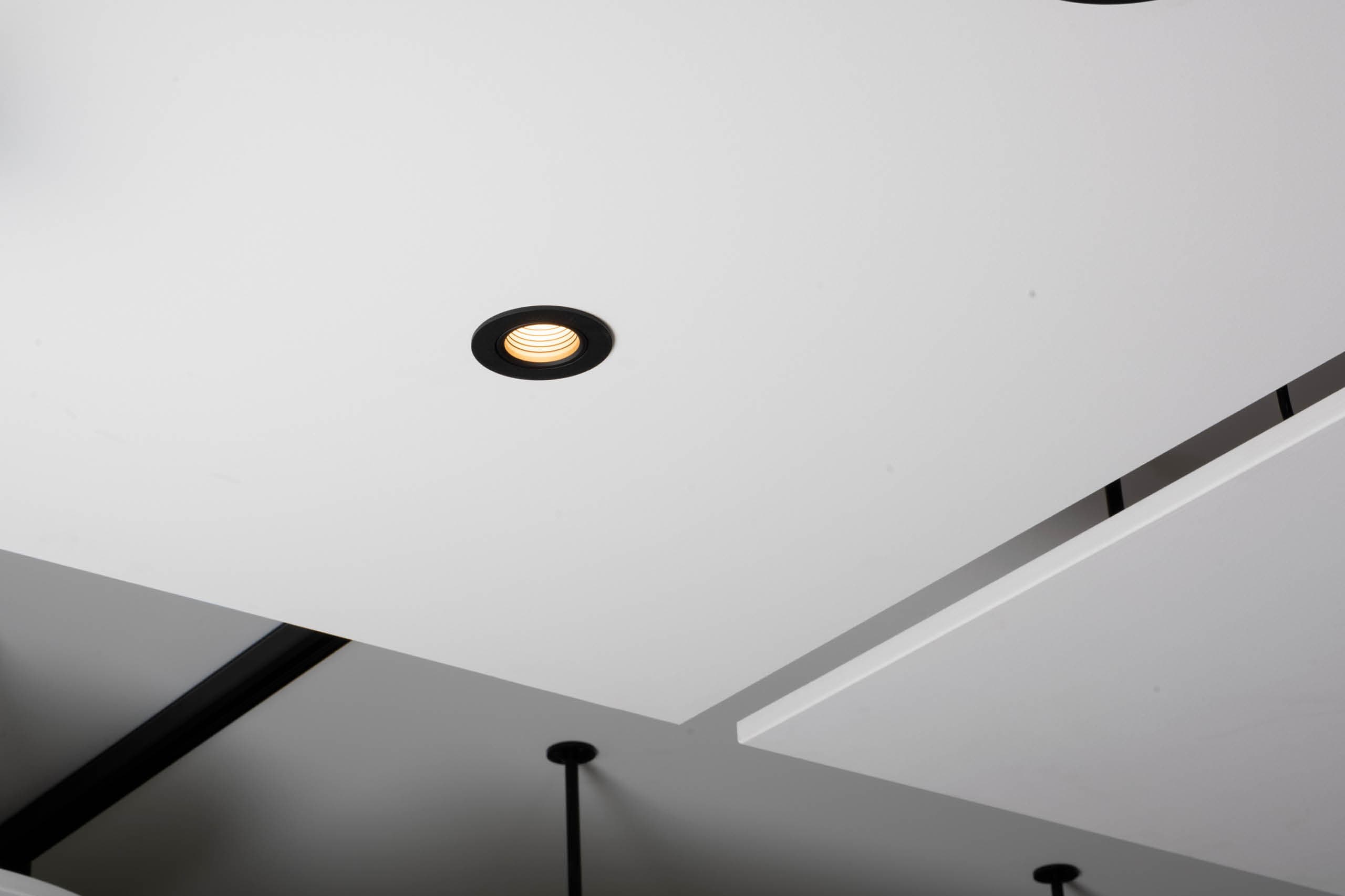

    As part of the Particle Collection, the Particle Downlight is designed as a genuine all-rounder, just as comfortable in residential as in commercial applications.

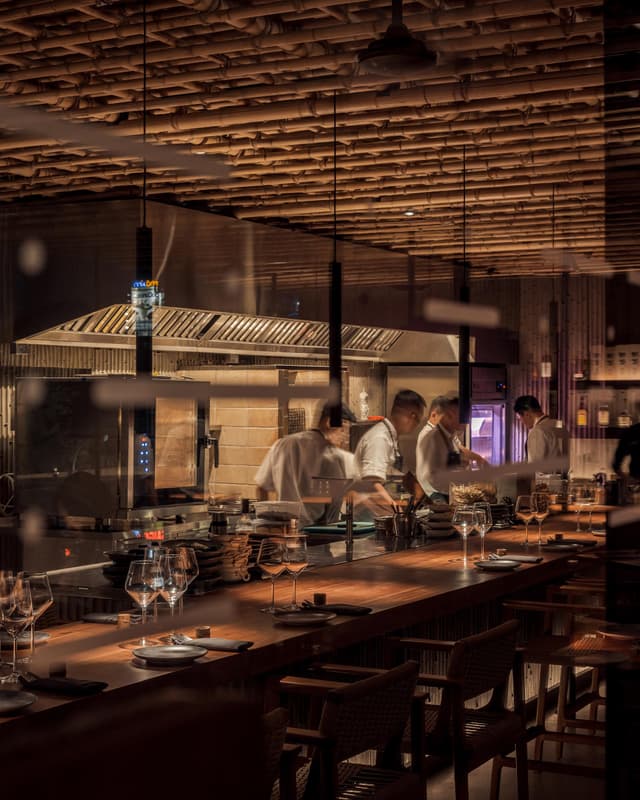

    20220718 - Tre Dining 36.jpeg
    Tre DiningHo Chi Minh City, Vietnam
    Adelaide Oval Hotel_DSC_7889-Edit.jpeg
    Oval HotelAdeleide, Australia
    Adelaide Oval Hotel_DSC_7839-Edit.jpeg
    Oval HotelAdeleide, Australia

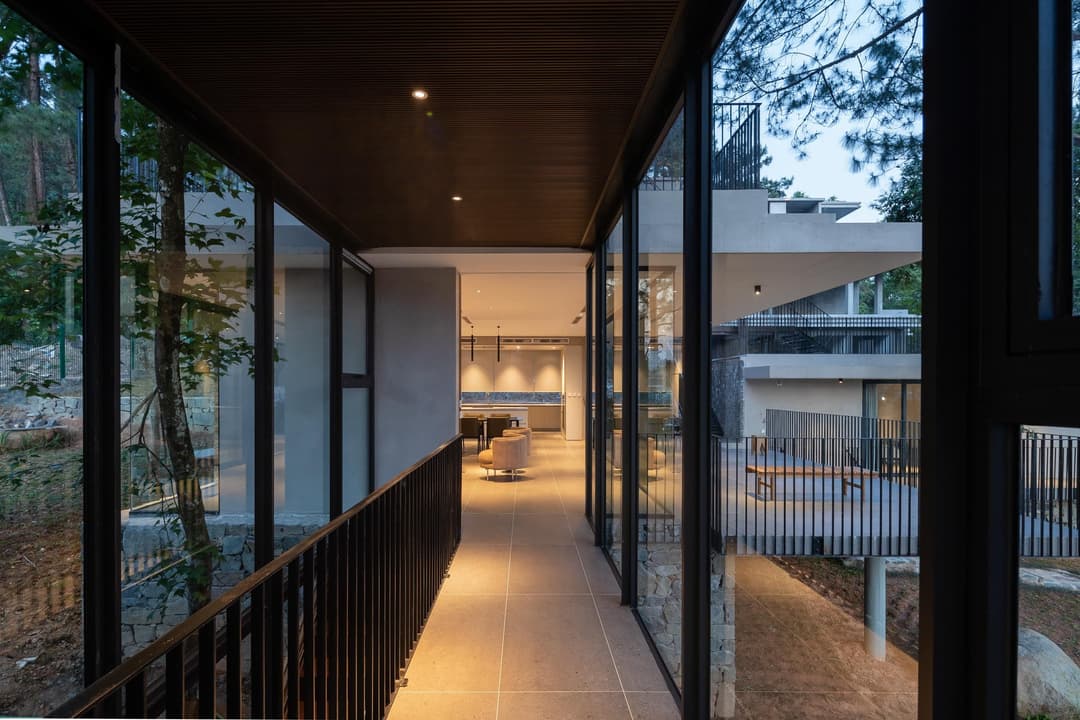

    Tam Dao_TRC_4087.jpeg
    Tam DaoVinh Phuc, Vietnam

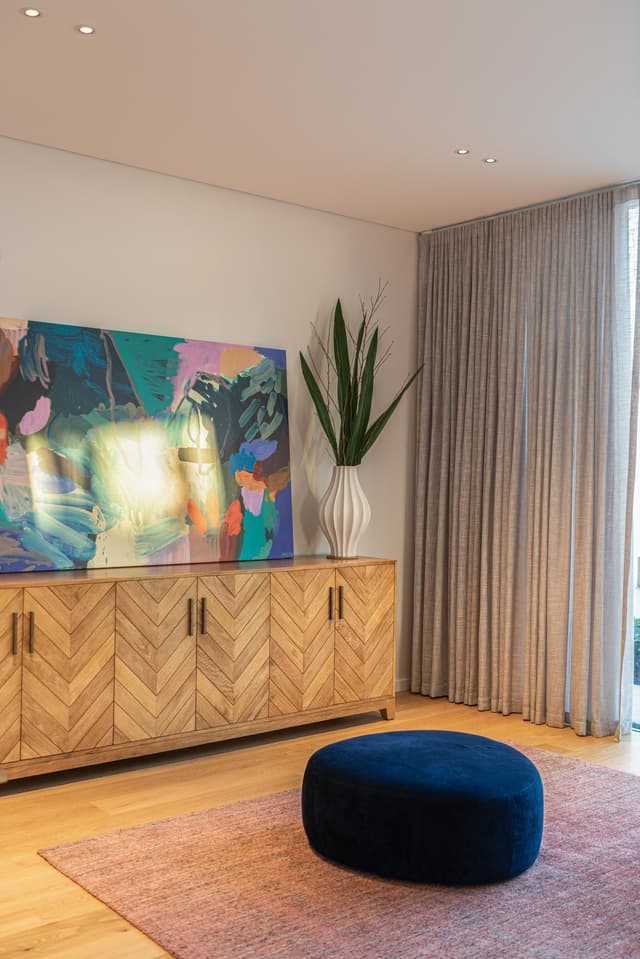

    Prestige Homes Philip St - 15.jpeg
    Prestige HomesPerth, Australia

    CRI 92+

    Designed to maintain the object's natural colour with an outstanding colour performance at CRI 92+.

    Low glare

    Ensures minimal glare even when performing at high output for maximum visual comfort.

    COI compliance

    Specific models are compliant with the Cyanosis Observation Index, suitable for visual detection of cyanosis in healthcare applications.

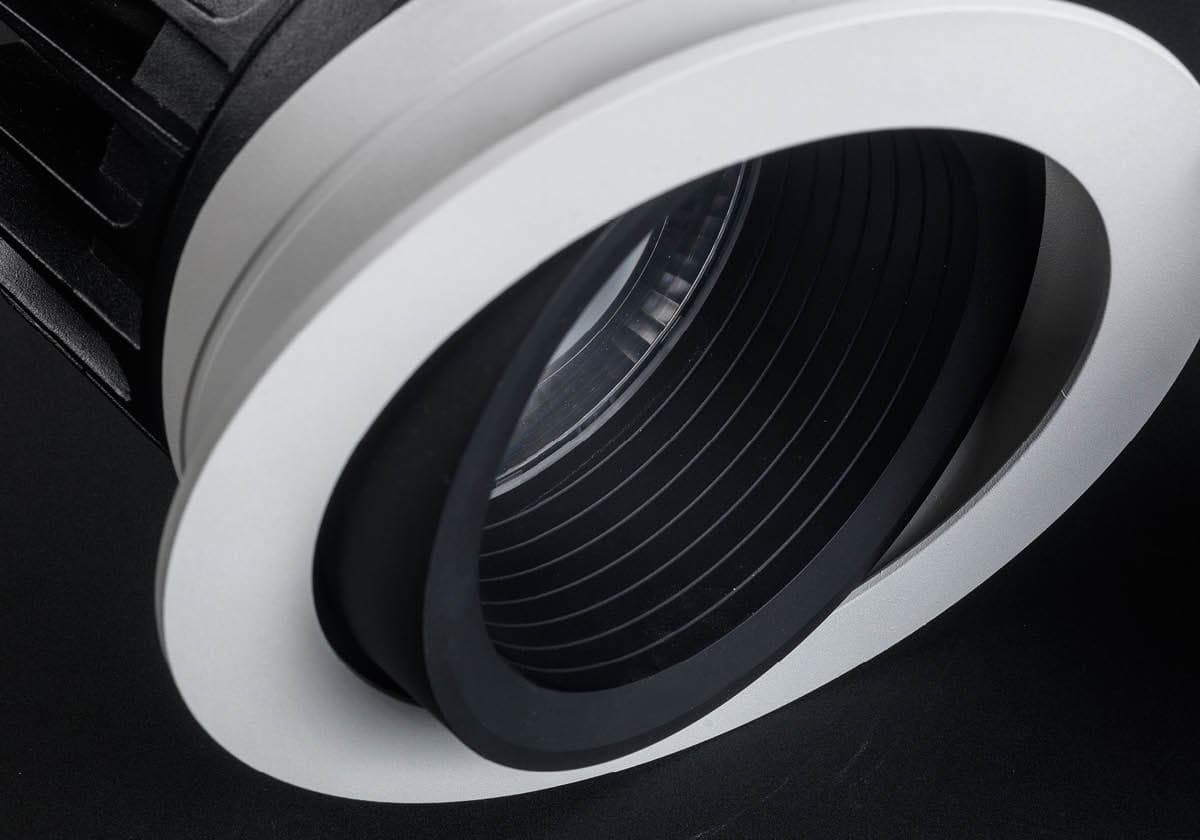

    Lens technology

    With the application of lens technology, the Particle Downlight enables complete control over light distribution, producing a precise beam while minimising undesirable light spills.


    Crafted in Australia

    Our Crafted in Australia products are hand-assembled by Australian lighting fabricators to allow for customisations ranging from beam angles and optics to finishes and fascias.


    Universal design philosophy

    Not only engineered for performance, but the entire Unios product range is also meticulously designed to follow a minimalistic approach, providing a timeless and contemporary touch to every project.


    Unios signature textured finishes

    Carefully selected to meet the modern lighting and architectural design requirements, each of Unios's signature Textured White (RAL 9003), Black (RAL 9005) and Grey (RAL 9023) finish is created to provide a sense of coherence when multiple Unios fixtures are specified in a project.

    Perfect for

    Perfect For - Hospitality.jpeg
    Hospitality
