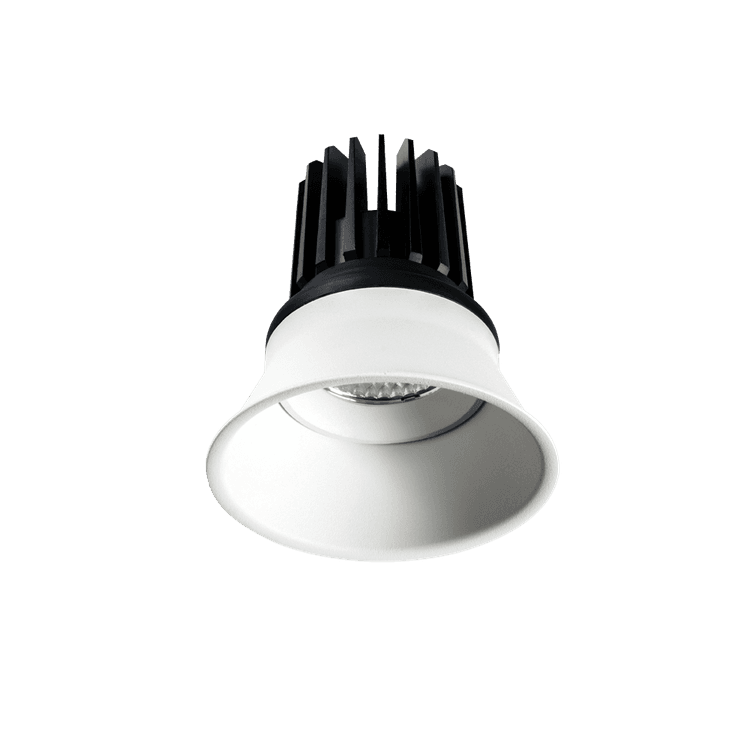

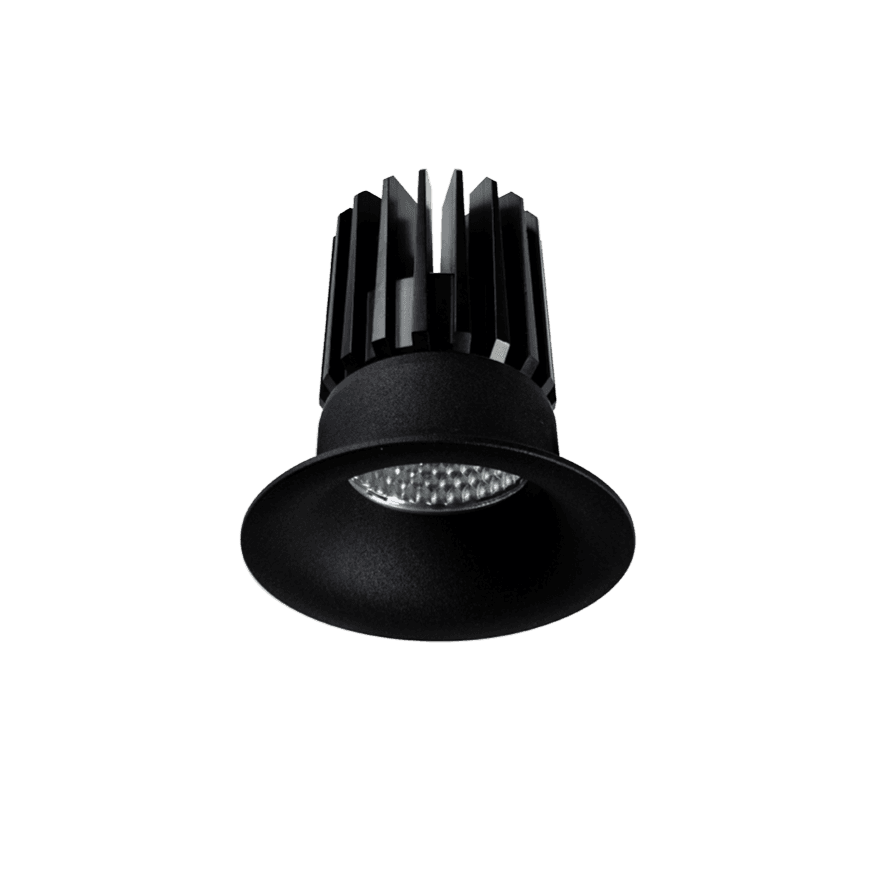

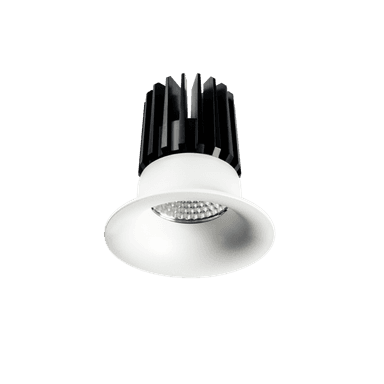

Titanium Curve Downlight

With an inward-sloping trim, the Titanium Curve renders a soft halo light for uninterrupted ceiling aesthetics. As a part of the Titanium Collection, the luminaire maintains high performance with a wide range of beam angles and CRI97+, perfect as a standalone or with other Unios luminaires.

Part of the Titanium collection

Please check availability with your Unios distributor
Product Summary

Available Models

Small (80mm)

Small (80mm)

  • LED Power:Up to 11W
  • Lumens:Up to 938lm
  • Beam:15° | 24° | 36° | 60°
Configure
Medium (90mm)

Medium (90mm)

  • LED Power:Up to 15W
  • Lumens:Up to 1313lm
  • Beam:15° | 24° | 36° | 60°
Large (130mm)

Large (130mm)

  • LED Power:Up to 25W
  • Lumens:Up to 2359lm
  • Beam:15° | 24° | 36° | 60°

Specifications

Finishes

  • Textured Black
  • Textured White

Colour rendering index (CRI)

  • 97+

Colour temperature

  • 2700K
  • 3000K
  • 4000K

IP rating

  • IP44

Efficacy

  • Up to
    94.36lm/W

Control

  • Casambi Bluetooth
  • DALI
  • Phase-cut dimmable
  • Phase Pulse

SDCM

  • 2

LED Lifetime

  • >55,000h L90B10

Materials

  • Powder Coated Aluminium

Primary Optics

  • Honeycomb Louvre
  • Linear Lens

Unified Glare Rating

  • <13
  • <16
  • <19

Warranty

  • 5 Years

Class

  • Class II

Resources

Titanium Curve DownlightIESZIP 37.6 KB

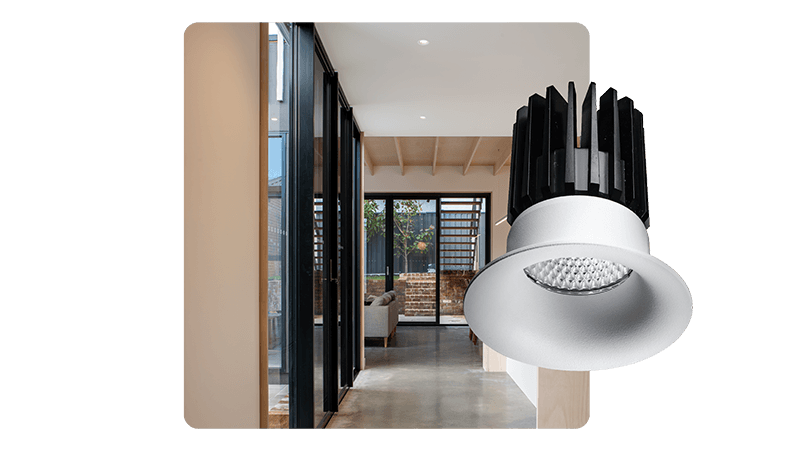

A high colour rendering downlight

The Titanium Curve features a superior inward-sloping design aesthetic combined with the practicality of easy installation and the perfect balance between brightness and colour rendering.

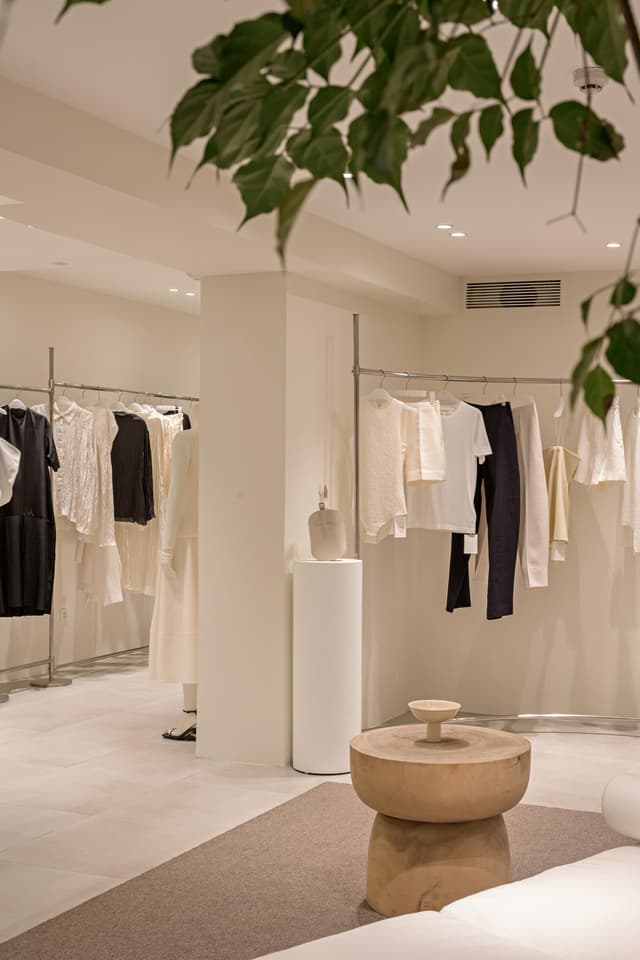

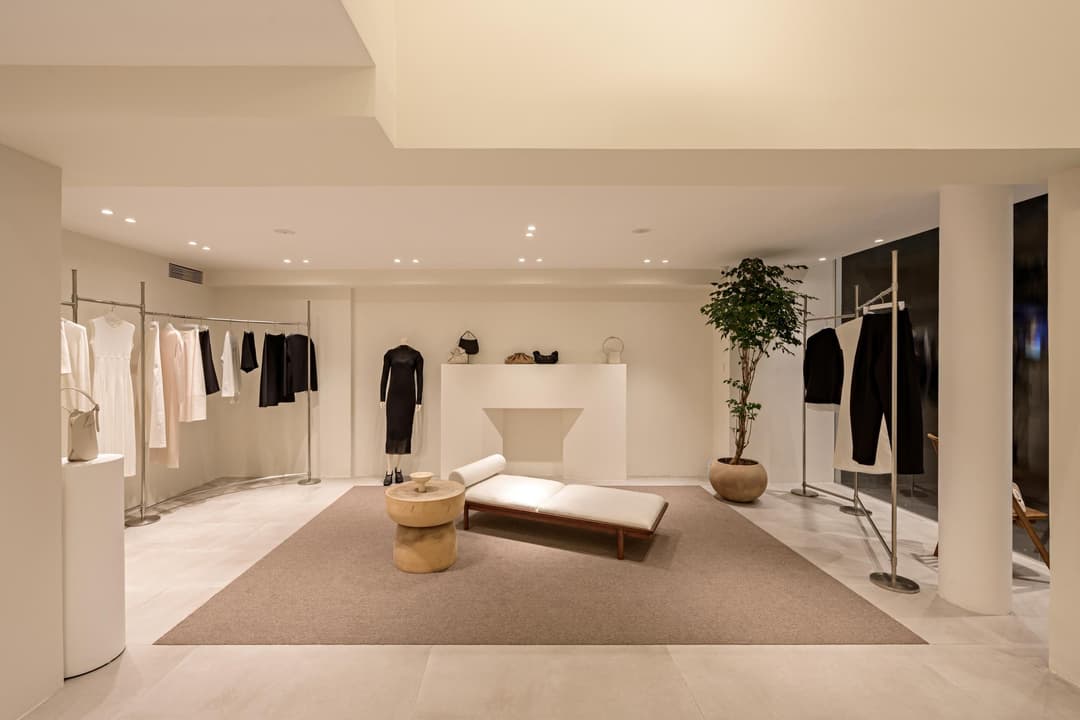

Unios - Gia Studio 16.jpeg
Unios - Gia Studio 13.jpeg
Unios - Gia Studio 21.jpeg

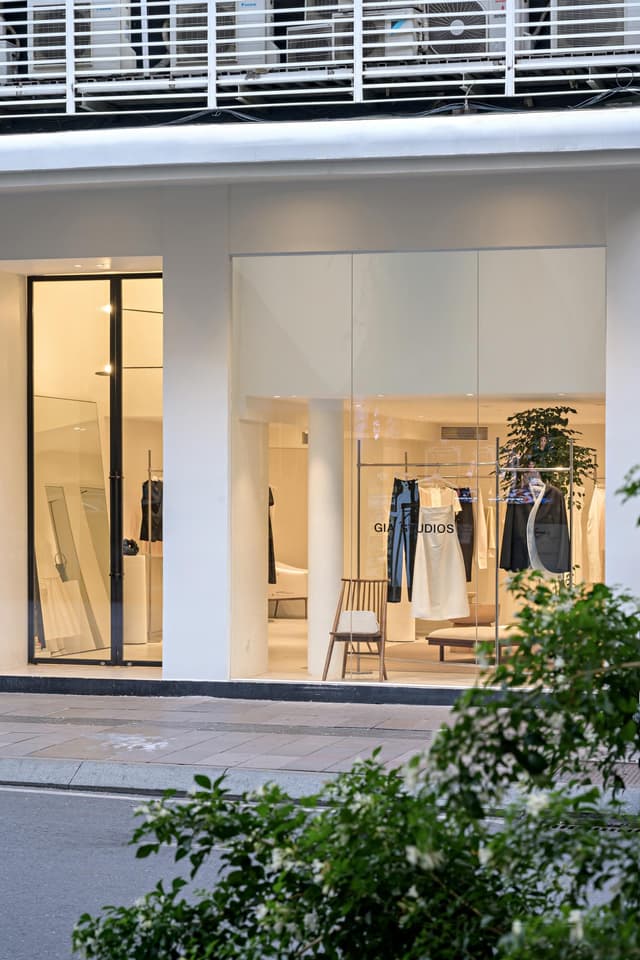

Gia StudiosHanoi, Vietnam

Part of the Titanium Collection

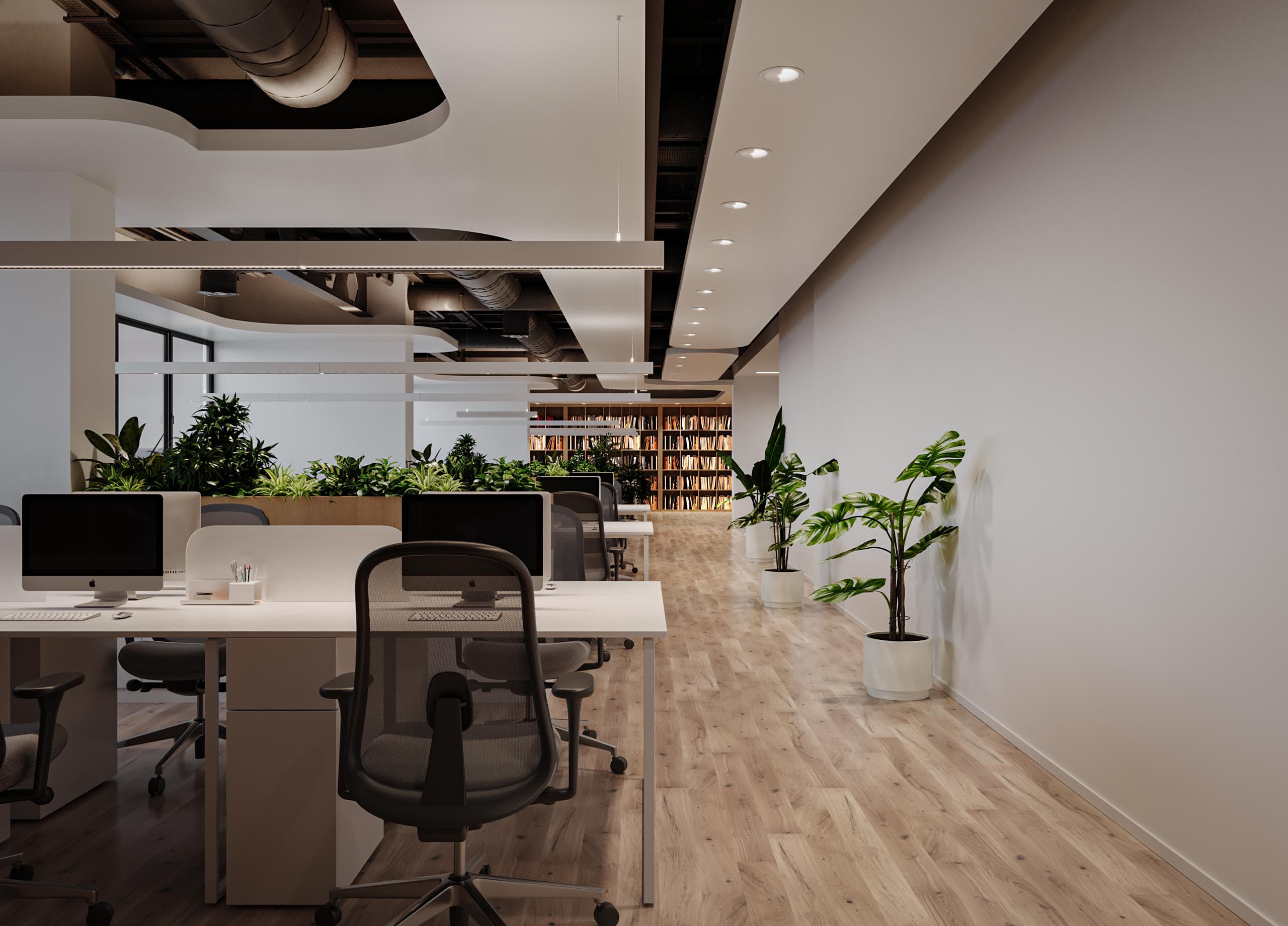

As part of the Titanium Collection, the Titanium Curve Downlight is ideal for commercial or residential applications requiring a comfortable and advanced lighting solution.

Low glare

Ensures minimal glare even when performing at high output for maximum visual comfort.

COI compliance

Specific models are compliant with the Cyanosis Observation Index, suitable for visual detection of cyanosis in healthcare applications.

CRI 97+

Designed to maintain the object's natural colour with a true-to-life colour performance at CRI 97+.

Universal design philosophy

Not only engineered for performance, but the entire Unios product range is also meticulously designed to follow a minimalistic approach, providing a timeless and contemporary touch to every project.


Unios signature textured finishes

Carefully selected to meet the modern lighting and architectural design requirements, each of Unios's signature Textured White (RAL 9003), Black (RAL 9005) and Grey (RAL 9023) finish is created to provide a sense of coherence when multiple Unios fixtures are specified in a project.


Crafted in Australia

Our Crafted in Australia products are hand-assembled by Australian lighting fabricators to allow for customisations ranging from beam angles and optics to finishes and fascias.

Lasting lifetime

Offers a lasting lifetime and ensures the specified luminaire's performance is consistent until the end of the service life.

SDCM≤2

Meets the industry's highest colour consistency standard in LED lighting for assured colour consistency over the product's operational lifetime.

Perfect for

Perfect For - Hospitality.jpeg
Hospitality
