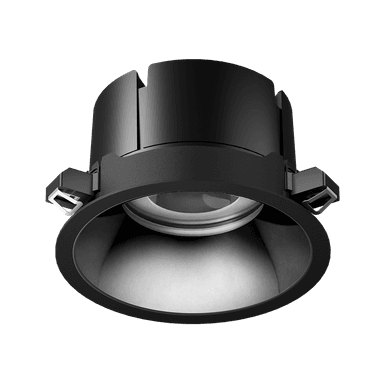

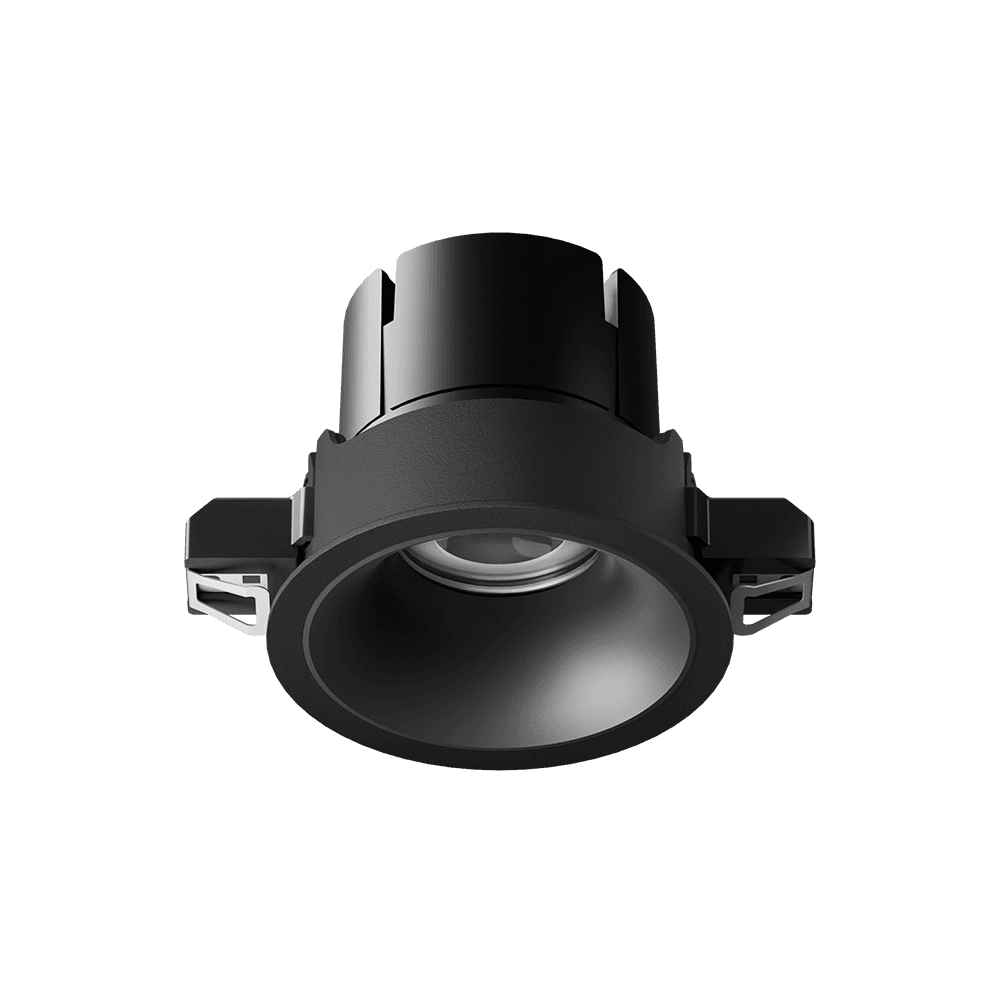

ION R Downlight

Available in 4 sizes, an extensive range of accessories and 15,000+ customisations, the ION R Downlight is an outstanding contender for all lighting needs. With 2 models, Standard and Wallwasher, the ION R Downlight can be specified for both horizontal and vertical lighting needs.

Part of the ION R collection

Configure

Available Models

Small (89mm)

Small (89mm)

  • LED Power:Up to 11W
  • Lumens:Up to 1226lm
  • Beam:22° | 40° | 60°
Configure
Medium (103mm)

Medium (103mm)

  • LED Power:Up to 15W
  • Lumens:Up to 1656lm
  • Beam:22° | 40° | 60°
Configure
Large (180mm)

Large (180mm)

  • LED Power:Up to 32W
  • Lumens:Up to 3814lm
  • Beam:30° | 50° | 70°
Configure
XL (225mm)

XL (225mm)

  • LED Power:Up to 43W
  • Lumens:Up to 5128lm
  • Beam:30° | 50° | 70°
Configure

Specifications

Finishes

  • Textured Black/Black
  • Textured Black/Gold
  • Textured Black/Metallic
  • Textured Black/White
  • Textured White/Black
  • Textured White/Gold
  • Textured White/Metallic
  • Textured White/White

Colour rendering index (CRI)

  • 92+

Colour temperature

  • 2700K
  • 3000K
  • 4000K

IP rating

  • IP54

Efficacy

  • Up to
    119.26lm/W

Control

  • Casambi Bluetooth
  • DALI
  • Phase-cut dimmable
  • Phase Pulse
  • Non-dim

SDCM

  • 2

LED Lifetime

  • >55,000h L90B10

Materials

  • Powder Coated Aluminium

Primary Optics

  • Asymmetric Wallwasher
  • Honeycomb Louvre
  • Linear Lens
  • Softening Diffuser

Unified Glare Rating

  • <10
  • <13

Warranty

  • 5 Years

Class

  • Class II

Resources

ION R Downlight3D ModelsZIP 49.6 MB

ION R

Product Collection

Part of the award-winning ION Collection, the ION R reimagines the downlight experience with modularity, making lighting easier for everyone, from our industry professionals and contractors to end-users.

See the collection
ION R_Tiny. Mighty.jpg
ION R Adjustable Downlight
ION R Adjustable Downlight

New

ION R Adjustable Downlight

ION R_Hot Spot Image_Downlight.png

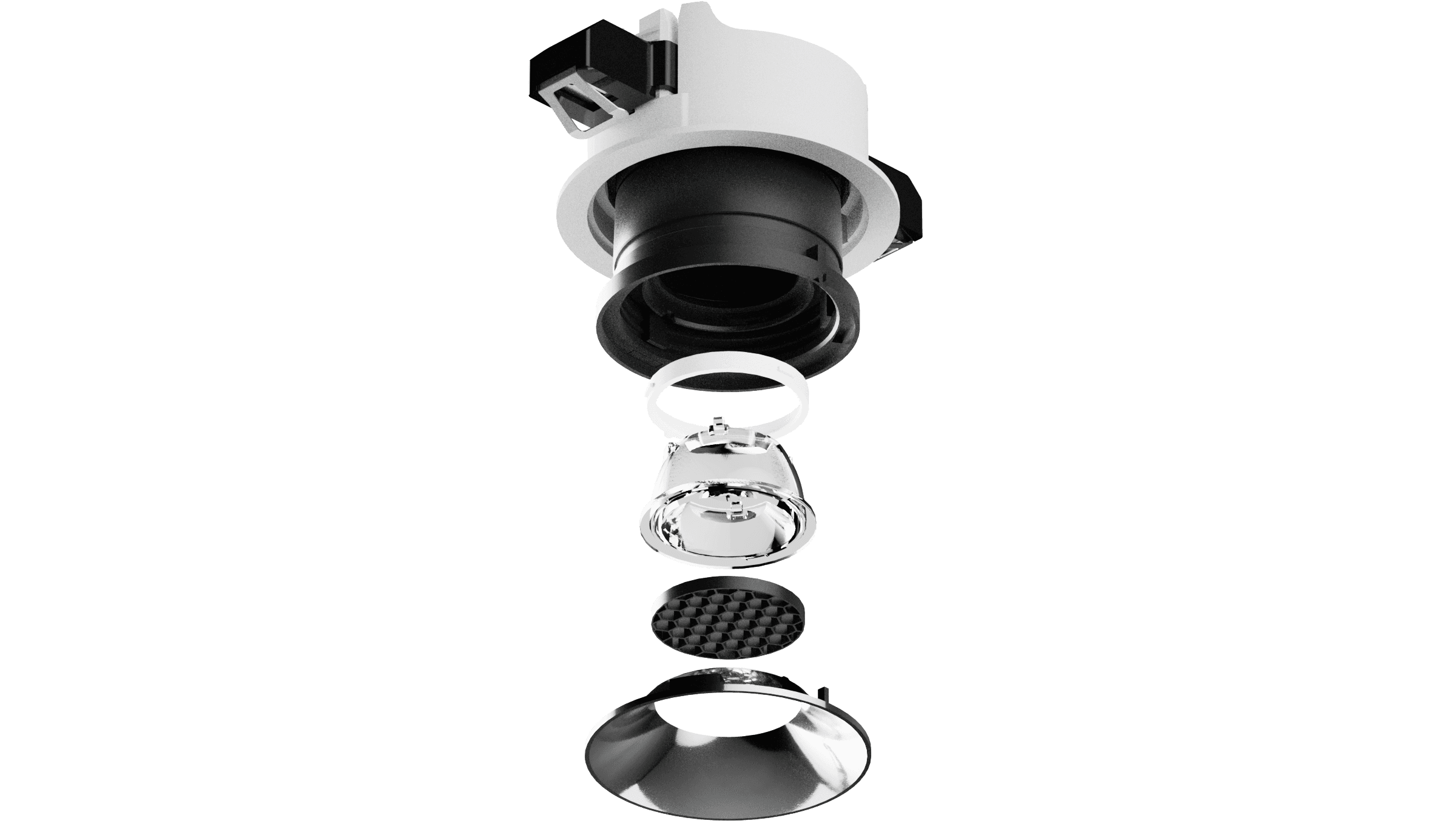

A modular future of lighting

The ION R Series is designed from the ground up with a fully integrated optical system, engineered to work as one unified unit. With modularity at its core, interchangeable components enable faster lead times, on-site flexibility, and more sustainable production.

Changi Airport - MTZ08553.jpeg
Colac Hotel-37.jpeg
Ocean Grand City Beach Display-11.jpg

Low glare

Ensures minimal glare even when performing at high output for maximum visual comfort.

COI compliance

Specific models are compliant with the Cyanosis Observation Index, suitable for visual detection of cyanosis in healthcare applications.

Tunable white

Change colour temperatures throughout the day to assist the natural circadian rhythms with colour-tuning technology.
ION R_Precision no matter the angle.jpg

Precision, no matter the angle.

From narrow to wide beam, the ION R lens uses internal reflection to precisely control light, focusing over 80% on the target.

ION R_All for comfort.png

All for Comfort.

With its deep-set LED chip, Stealth Metallic Baffle, and Honeycomb Louvre, the ION R is designed for better visual comfort.

ION R-Feature.jpg

Simple Installation.

All ION R drivers fit within the recessed cut-out, while the built-in clips and ball-bearing system make securing and installing the fixture effortless.

ION R-Beam - Hotspot.png

One series. Multiple beam options.

From to 70º beam, the ION R can define both high-contrast and low-contrast environments. It also offers a suite of secondary optics to further refine the beam for specific applications such as vertical surfaces, corridors, or signage.

CRI 92+

Designed to maintain the object's natural colour with an outstanding colour performance at CRI 92+.

Lasting lifetime

Offers a lasting lifetime and ensures the specified luminaire's performance is consistent until the end of the service life.

SDCM≤2

Meets the industry's highest colour consistency standard in LED lighting for assured colour consistency over the product's operational lifetime.
ION R_Infinite possibilities in 5 days_Downlight.jpg

A modular design enables local assembly of your final configuration, ready for delivery within five business days.

Perfect for

Perfect For - Public Spaces.jpeg
Public Spaces
