Quantum Slotter Light

The Quantum Slotter Light features single, double, triple or quadruple aperture variations allowing for individual adjustability and maximum flexibility. With CCT options ranging from 2700K to 4000K and a wide range of lumen packages – the Quantum Slotter Light positions itself as an adaptable solution for any project.

Please check availability with your Unios distributor
Configure
Product Summary

Available Models

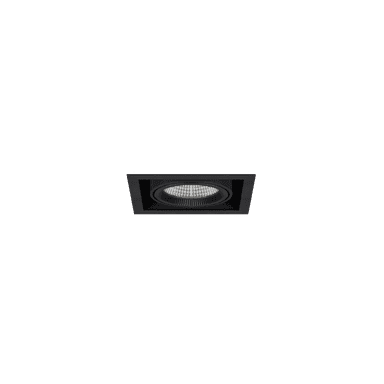

Single

Single

  • LED Power:Up to 35W
  • Lumens:Up to 3156lm
  • Beam:15° | 30° | 45° | 60°
Configure

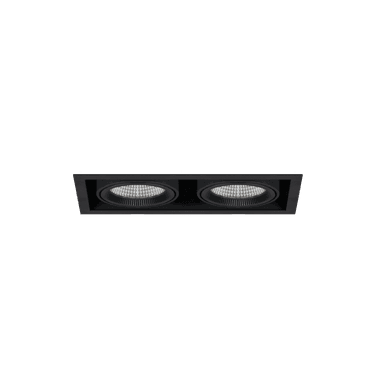

Double

Double

  • LED Power:Up to 67W
  • Lumens:Up to 6684lm
  • Beam:15° | 30° | 45° | 60°
Configure

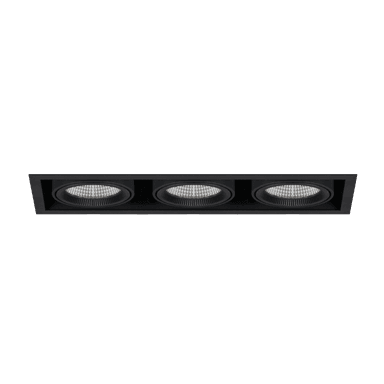

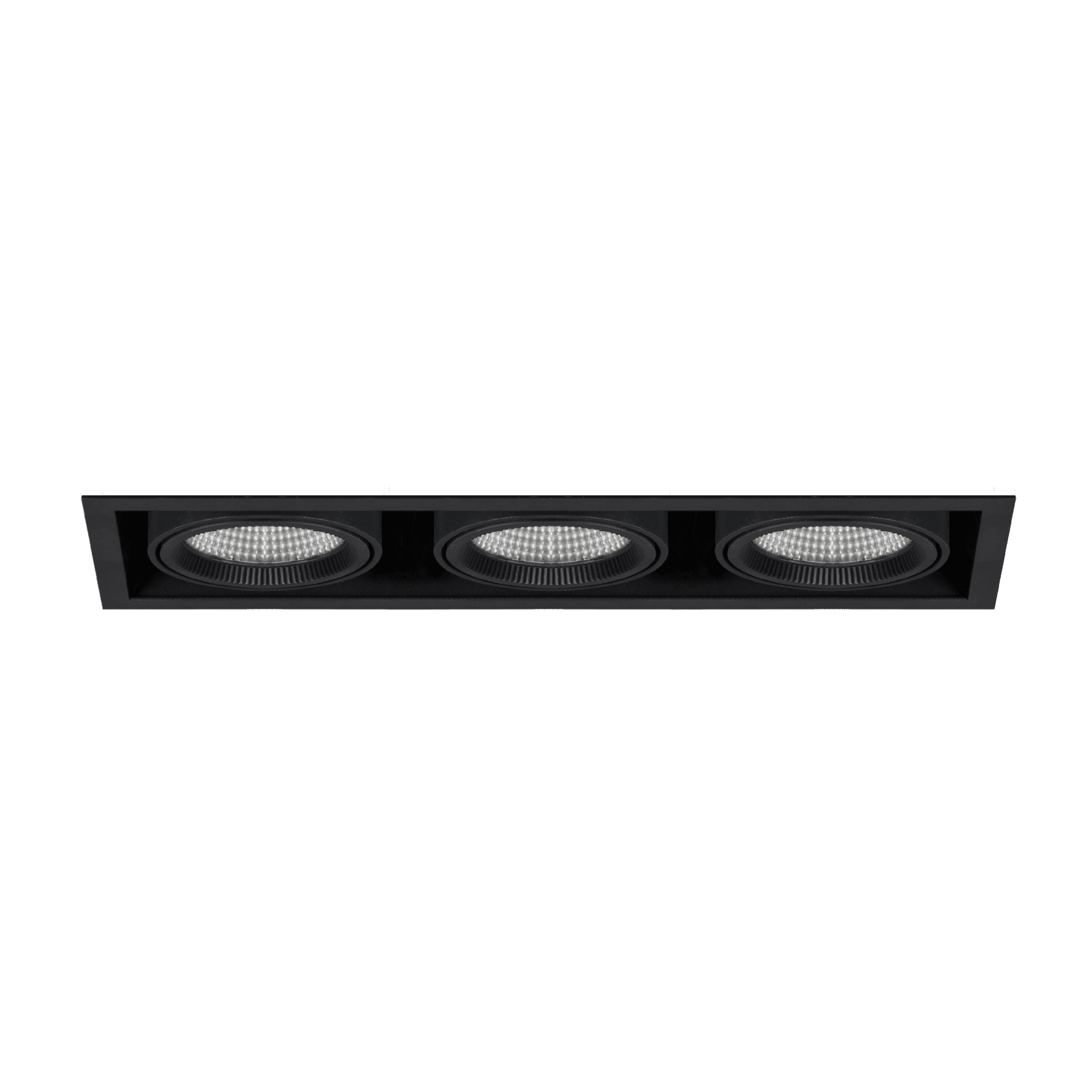

Triple

Triple

  • LED Power:Up to 105W
  • Lumens:Up to 10026lm
  • Beam:15° | 30° | 45° | 60°
Configure

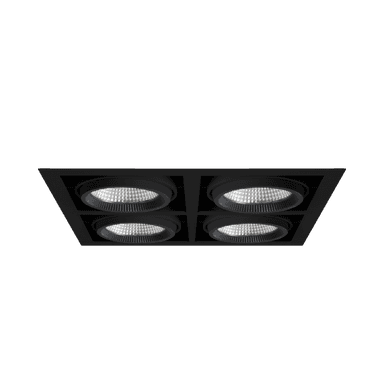

Quadruple

Quadruple

  • LED Power:Up to 140W
  • Lumens:Up to 13368lm
  • Beam:15° | 30° | 45° | 60°
Configure

Specifications

Finishes

  • Textured Black
  • Textured White/Black

Colour rendering index (CRI)

  • 92+

Colour temperature

  • 2700K
  • 3000K
  • 4000K

IP rating

  • IP20

Efficacy

  • Up to
    95.49lm/W

Control

  • Casambi Bluetooth
  • DALI
  • Phase-cut dimmable
  • Phase Pulse

SDCM

  • 2

LED Lifetime

  • >55,000h L90B10

Materials

  • Powder Coated Aluminium

Unified Glare Rating

  • <19

Warranty

  • 5 Years

Class

  • Class II

Tilt

  • 45°

Rotation

  • 350°

Resources

Quantum Slotter LightIESZIP 3.4 KB

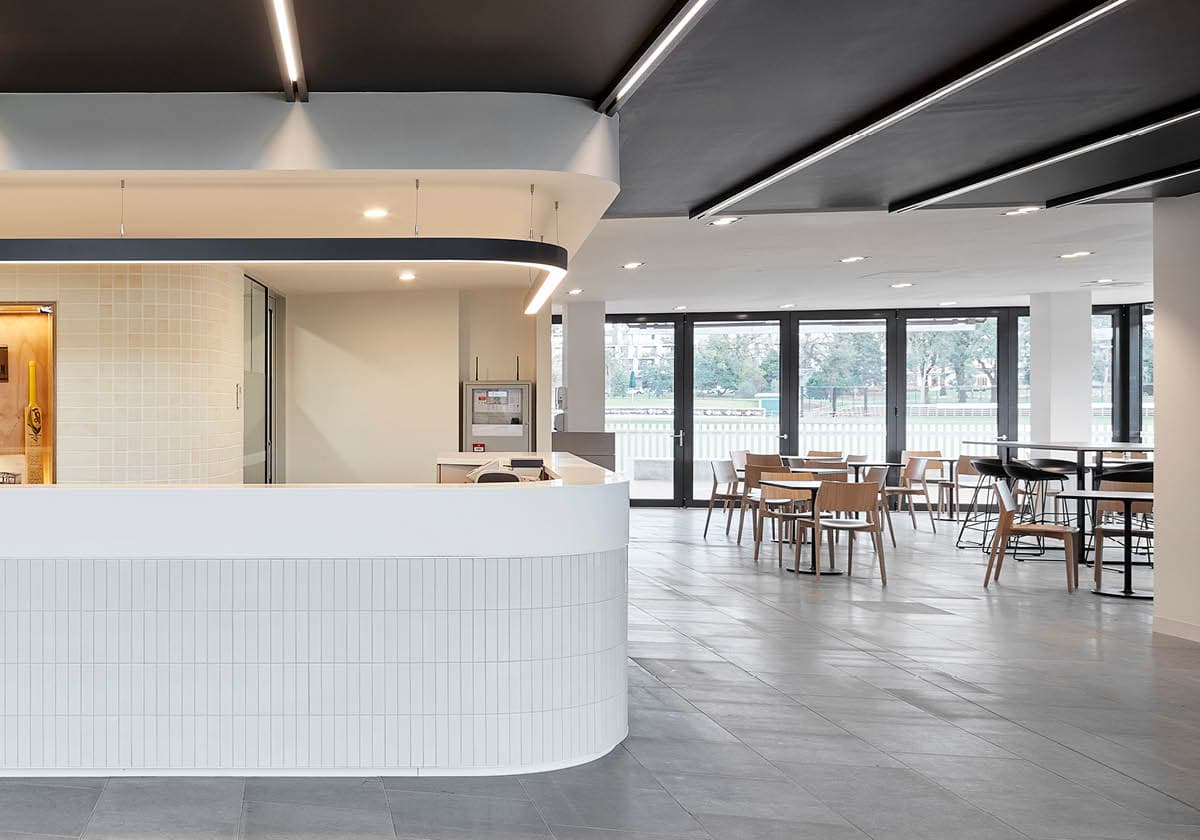

Unios_VCCC Junction Oval_20180531_167.jpeg

A commercial-grade solution

Offering a vivid output in an adjustable design with single, double, triple or quadruple aperture variations, the Quantum Slotter is suitable for commercial projects of all sizes.


A powerful package

With CCT options ranging from 2700K to 4000K and a wide range of lumen packages, the Quantum Slotter Light is an adaptable and efficient lighting solution.


Universal design philosophy

Not only engineered for performance, but the entire Unios product range is also meticulously designed to follow a minimalistic approach, providing a timeless and contemporary touch to every project.


Unios signature textured finishes

Carefully selected to meet the modern lighting and architectural design requirements, each of Unios's signature Textured White (RAL 9003), Black (RAL 9005) and Grey (RAL 9023) finish is created to provide a sense of coherence when multiple Unios fixtures are specified in a project.
