ION S Framer Recessed Spotlight

Boasts an impressive CRI 97+, framing, zoom and focus capabilities, and adjustability of 120° tilt and 355° rotation, the ION S Framer can skillfully accentuate architectural elements or objects of interest from up to 8m away.

Part of the ION S collection

Please check availability with your Unios distributor
Product Summary

Available Models

Medium 55°

Medium 55°

  • LED Power:Up to 18W
  • Lumens:Up to 842lm
  • Beam:55°
Configure
Medium 15-25°

Medium 15-25°

  • LED Power:Up to 18W
  • Lumens:Up to 953lm
  • Beam:25°
Large 55°

Large 55°

  • LED Power:Up to 32W
  • Lumens:Up to 1129lm
  • Beam:55°
Large 15-25°

Large 15-25°

  • LED Power:Up to 32W
  • Lumens:Up to 1436lm
  • Beam:25°

Specifications

Finishes

  • Textured Black/Black
  • Textured White/White

Colour rendering index (CRI)

  • 97+

Colour temperature

  • 3000K

IP rating

  • IP20

Efficacy

  • Up to
    44.88lm/W

Control

  • Casambi Bluetooth
  • DALI
  • Phase-cut dimmable

SDCM

  • 2
  • 3

LED Lifetime

  • >55,000h L90B10

Materials

  • Powder Coated Aluminium

Unified Glare Rating

  • <10

Warranty

  • 5 Years

Class

  • Class II

Tilt

  • 120°

Rotation

  • 355°

Resources

ION S Framer Recessed Spotlight3D ModelsZIP 14.5 MB

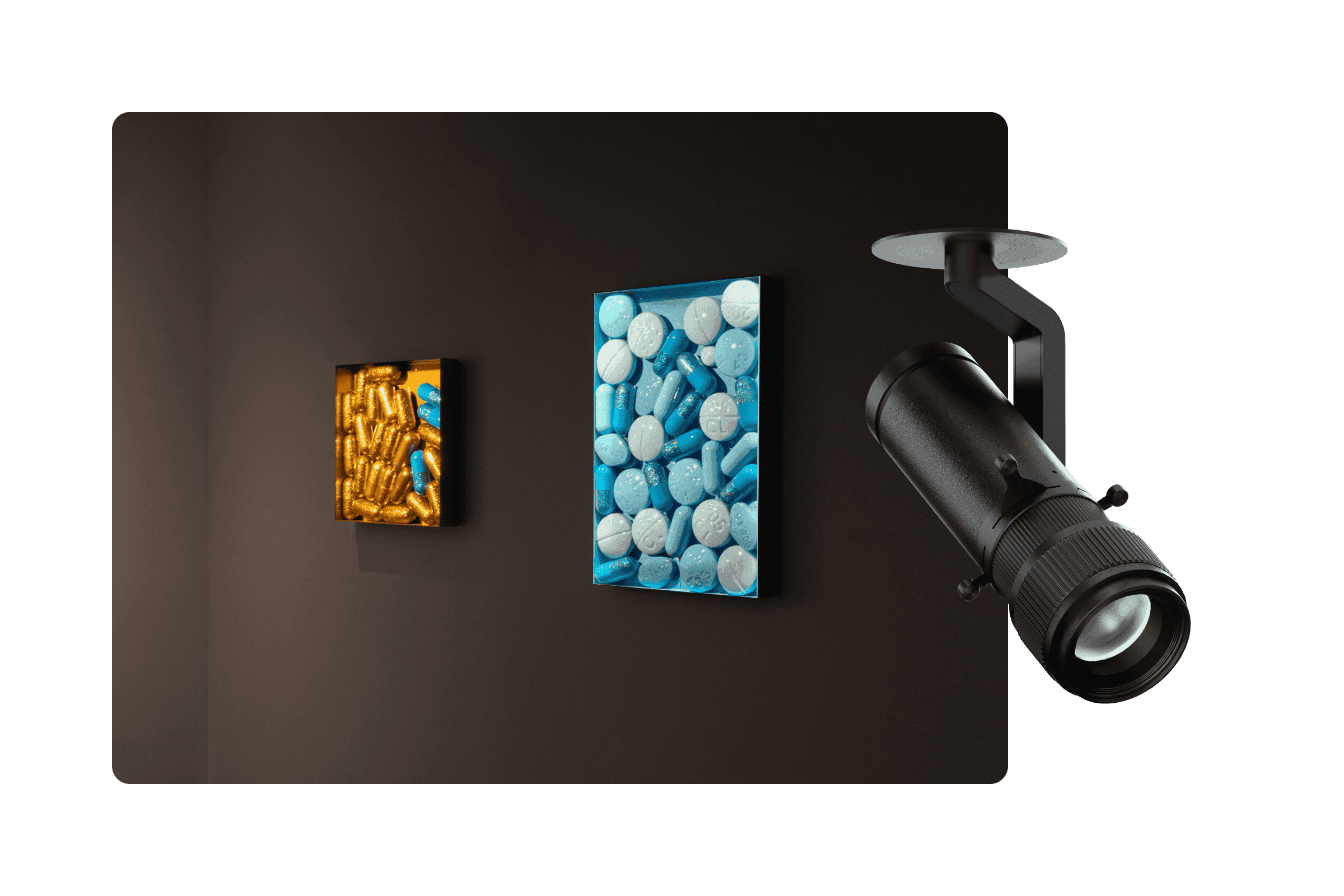

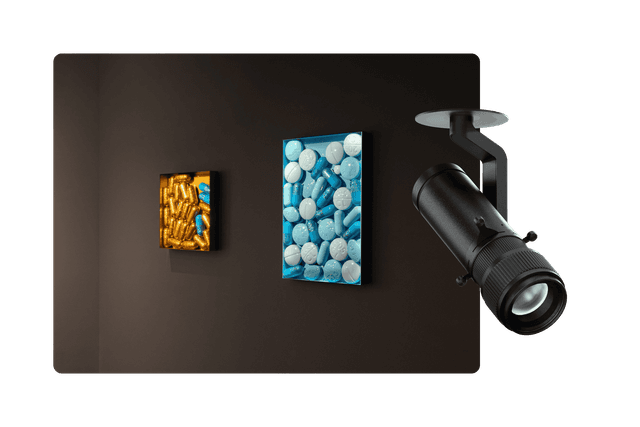

ION S - Shaping brilliance.png

Shaping brilliance

With framing, zoom and focus capabilities, the ION S Framer can skillfully accentuate architectural elements or objects of interest from up to 8m away.

ION S - Part of the award-winning ION Collection.png

Part of the award-winning ION Collection

The award-winning ION Collection boasts exceptional application versatility, presenting a cutting-edge lighting solution. Its outstanding adaptability, performance, function and beauty make it a one-stop lighting choice for every space.

Framer for Hospitality 1.png
ION S Residential.webp
Framer for Hospitality Comparison (Framer).jpeg

Casambi

Pair the luminaire with Casambi Bluetooth for an effortless smart lighting system right in your smart devices.

Lasting lifetime

Offers a lasting lifetime and ensures the specified luminaire's performance is consistent until the end of the service life.

Tunable white

Change colour temperatures throughout the day to assist the natural circadian rhythms with colour-tuning technology.
ION S Deconstructed.png

Redefine what's possible

With 18,000+ customisations, the ION S Series is an all-in-one solution that is meticulously crafted to redefine spaces and enhance the atmosphere in every project it illuminates.

ION S Compact innovation_Compressed.png

Compact innovation

By strategically positioning the driver outside of the body, the ION S Series achieves a remarkable 20% size reduction while enhancing lighting output. This ensures both aesthetics and performance for your lighting and design needs.

ION S Application flexibility_Compressed.png

Application flexibility

Offers unparalleled beam angle accuracy and adjustability of 120° tilt and 355° rotation, the ION S is an all-in-one solution that brings your design to life.


Crafted in Australia

Our Crafted in Australia products are hand-assembled by Australian lighting fabricators to allow for customisations ranging from beam angles and optics to finishes and fascias.

CRI 97+

Designed to maintain the object's natural colour with a true-to-life colour performance at CRI 97+.

SDCM≤2

Meets the industry's highest colour consistency standard in LED lighting for assured colour consistency over the product's operational lifetime.

Ultra-low glare

Ensures minimal glare and maximum visual comfort even when operating at high output thanks to an extensive array of secondary optic choices.
