ION S Surface Mounted Spotlight
Configure
In-situ
Studio
Product preview
Loading

New

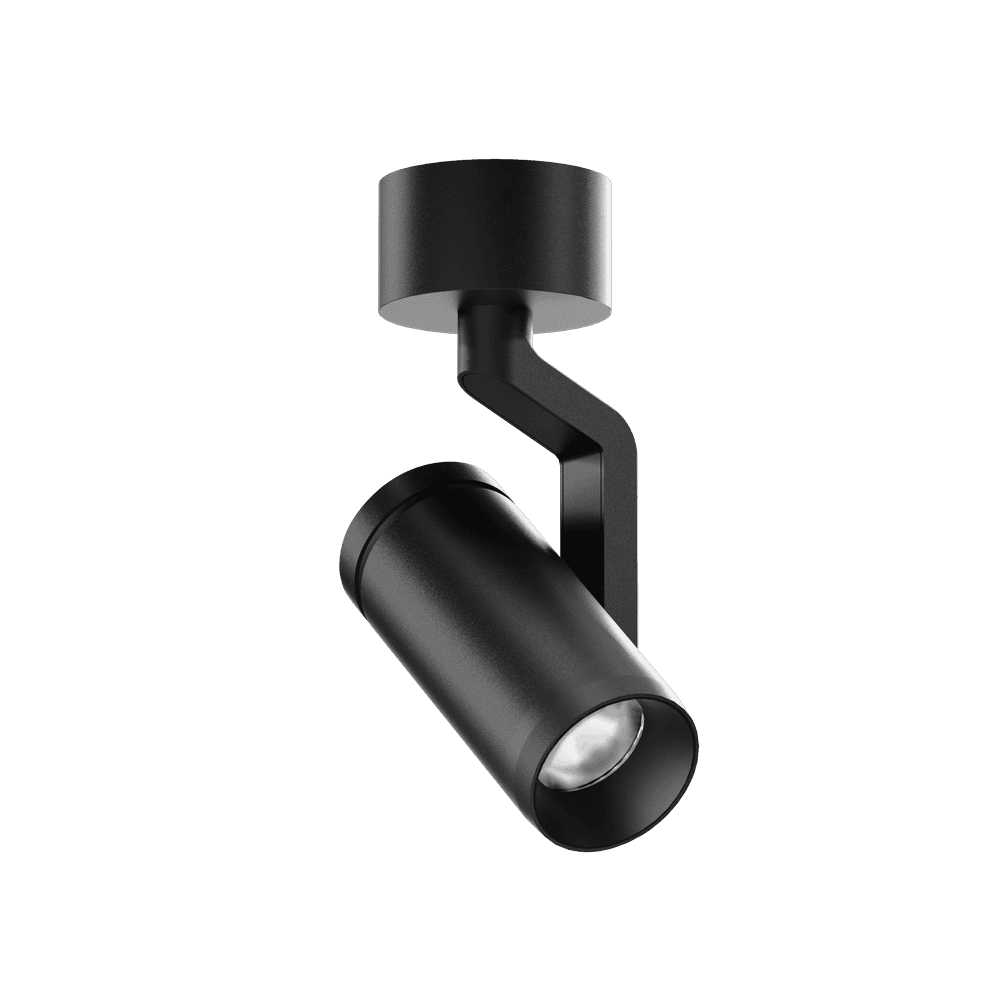

ION S Surface Mounted Spotlight

Unleashing infinite lighting possibilities, the ION S Series addresses every aspect of your space, providing ambient, task, and accent illumination that enhances both horizontal and vertical planes. Available in 3 sizes and an extensive range of accessories, the ION S Surface Mounted Spotlight can meet any space's aesthetic requirements.

Part of the ION S collection

Please check availability with your Unios distributor
Configure
Product Summary

Available Models

Image not found

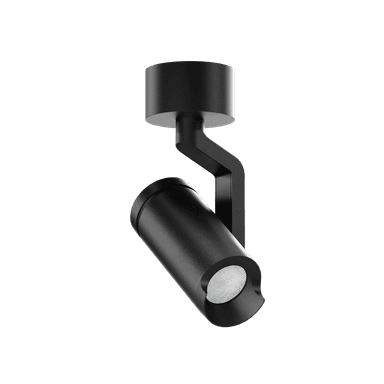

Small

  • LED Power:Up to 8W
  • Lumens:Up to 650lm
  • Beam:11° | 21° | 45°
Configure
Image not found

Wallwasher Medium

  • LED Power:Up to 18W
  • Lumens:Up to 1598lm
  • Beam:60°
Configure
Image not found

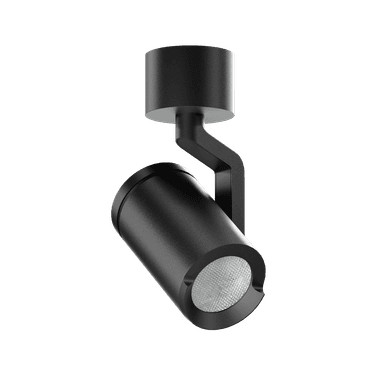

Medium

  • LED Power:Up to 18W
  • Lumens:Up to 1870lm
  • Beam:22° | 40° | 50° | 60°
Configure
Image not found

Wallwasher Large

  • LED Power:Up to 32W
  • Lumens:Up to 2451lm
  • Beam:65°
Configure
Image not found

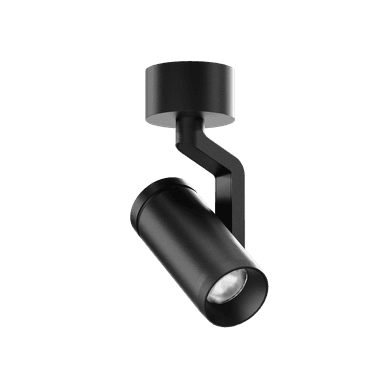

Large

  • LED Power:Up to 32W
  • Lumens:Up to 3275lm
  • Beam:30° | 45° | 50° | 60°
Configure

Specifications

Finishes

  • Textured Black/Black
  • Textured Black/Gold
  • Textured Black/Metallic
  • Textured Black/White
  • Textured White/Black
  • Textured White/Gold
  • Textured White/Metallic
  • Textured White/White

Colour rendering index (CRI)

  • 92+

Colour temperature

  • 2700K
  • 2700K-6500K
  • 3000K
  • 4000K

IP rating

  • IP20

Efficacy

  • Up to
    102.34lm/W

Control

  • Casambi Bluetooth
  • DALI
  • Phase-cut dimmable

SDCM

  • 2
  • 3

LED Lifetime

  • >55,000h L80B10
  • >55,000h L90B10

Materials

  • Powder Coated Aluminium

Primary Optics

  • Honeycomb Louvre
  • Linear Lens
  • Softening Diffuser

Unified Glare Rating

  • <10
  • <13
  • <16
  • <19

Warranty

  • 5 Years

Class

  • Class I

Tilt

  • 120°

Rotation

  • 355°

Resources

ION S Surface Mounted Spotlight3D ModelsZIP 21.2 MB
ION S - Part of the award-winning ION Collection.png

Part of the award-winning ION Collection

The award-winning ION Collection boasts exceptional application versatility, presenting a cutting-edge lighting solution. Its outstanding adaptability, performance, function and beauty make it a one-stop lighting choice for every space.

Framer for Hospitality 1.png
ION S Residential.webp
ION S Deconstructed.png

Redefine what's possible

With 18,000+ customisations, the ION S Series is an all-in-one solution that is meticulously crafted to redefine spaces and enhance the atmosphere in every project it illuminates.

ION S Application flexibility_Compressed.png

Application flexibility

Offers unparalleled beam angle accuracy and adjustability of 120° tilt and 355° rotation, the ION S is an all-in-one solution that brings your design to life.

ION S Compact innovation_Compressed.png

Compact innovation

By strategically positioning the driver outside of the body, the ION S Series achieves a remarkable 20% size reduction while enhancing lighting output. This ensures both aesthetics and performance for your lighting and design needs.

Casambi

Pair the luminaire with Casambi Bluetooth for an effortless smart lighting system right in your smart devices.

Tunable white

Change colour temperatures throughout the day to assist the natural circadian rhythms with colour-tuning technology.

Ultra-low glare

Ensures minimal glare and maximum visual comfort even when operating at high output thanks to an extensive array of secondary optic choices.
ION R-Beam - Hotspot.png

One series. Multiple beam options

Take your design further with our extensive range of beam options. Customise the ION to deliver the right lighting effect to your projects.


Crafted in Australia

Our Crafted in Australia products are hand-assembled by Australian lighting fabricators to allow for customisations ranging from beam angles and optics to finishes and fascias.

CRI 92+

Designed to maintain the object's natural colour with an outstanding colour performance at CRI 92+.

Lasting lifetime

Offers a lasting lifetime and ensures the specified luminaire's performance is consistent until the end of the service life.

SDCM≤2

Meets the industry's highest colour consistency standard in LED lighting for assured colour consistency over the product's operational lifetime.
