Eclipse Strip Light

With two variations, the EC6 and the EC10 strip lights, the Eclipse is customisable down 20/25mm increments to suit any application with remarkable uniformity and. Every Eclipse strip light is required to be combined with an Eclipse profile for different lighting needs and architectural applications.

Part of the Eclipse and Home Collection collections

Please check availability with your Unios distributor
Product Summary

Available Models

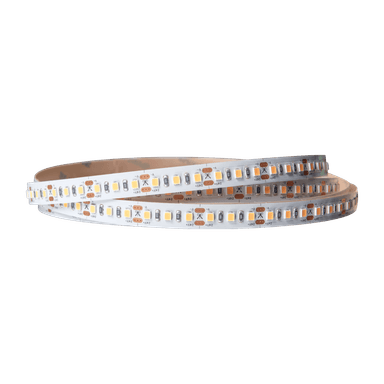

EC6

EC6

  • LED Power:Up to 10W/m
  • Lumens:Up to 182lm/m
  • Beam:120°
Configure

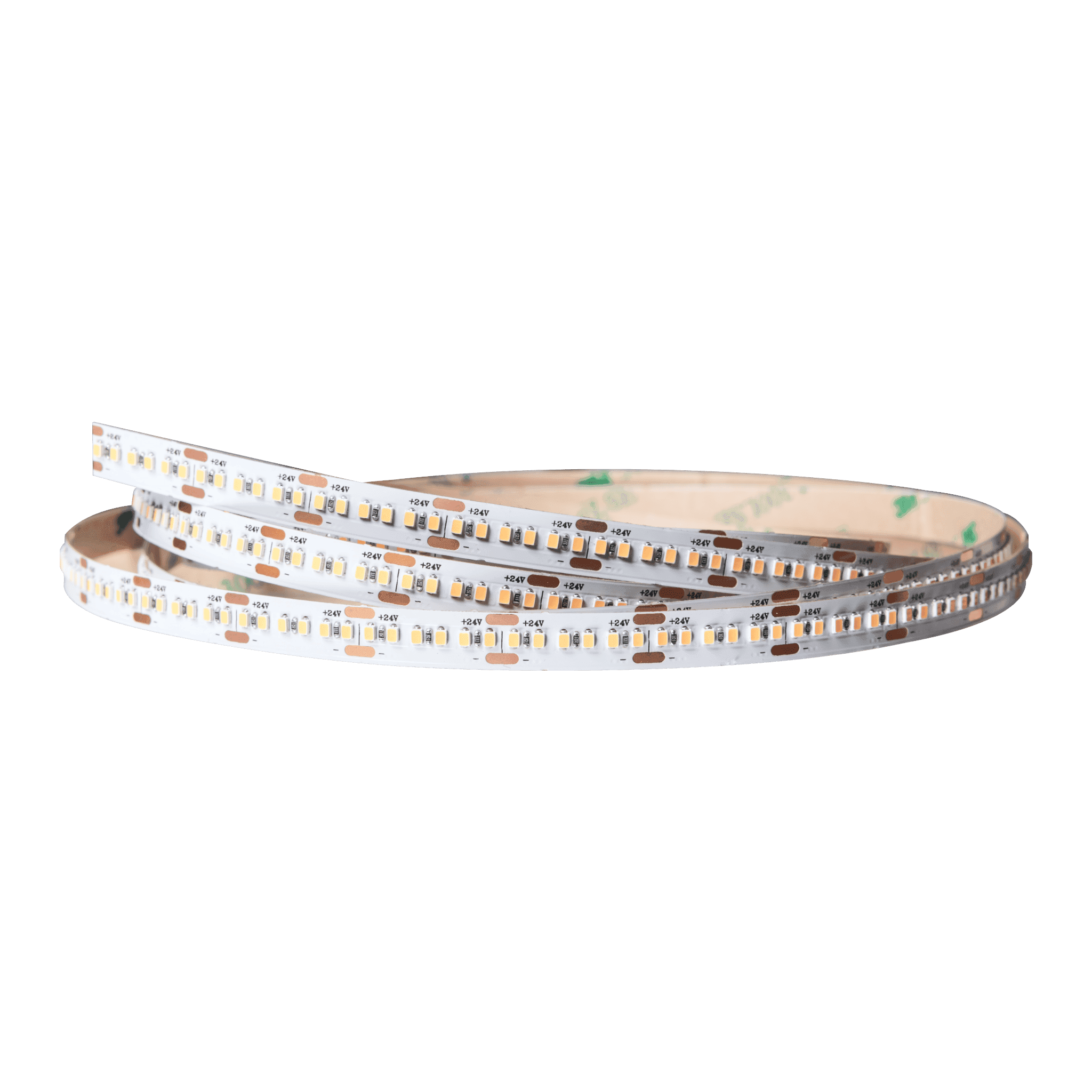

EC10

EC10

  • LED Power:Up to 20W/m
  • Lumens:Up to 1377lm/m
  • Beam:120°

Specifications

Finishes

  • N/A

Colour rendering index (CRI)

  • 90+

Colour temperature

  • 2700K
  • 2700K-6500K
  • 3000K
  • 4000K
  • RGB
  • RGBW

IP rating

  • IP20
  • IP67

Efficacy

  • Up to
    68.85lm/W

Control

  • Dimmable

SDCM

  • 3

LED Lifetime

  • >54,000h L80B10

Materials

  • Flexi PCB

Primary Optics

  • IP20 LED Strip
  • IP67 LED Strip

Warranty

  • 5 Years

Class

  • Class III

Resources

Eclipse Strip LightInstallation InstructionsZIP 3.8 MB

Part of the Eclipse Collection

As part of the Eclipse Collection, the Eclipse G2 Glide Linear Series boasts excellent colour rendering and durability, with various profiles to suit any architectural structure.

Lumen performance

Delivers high output, making it an ideal solution for applications requiring high performance, efficiency and lumen efficacy.

Lasting lifetime

Offers a lasting lifetime and ensures the specified luminaire's performance is consistent until the end of the service life.

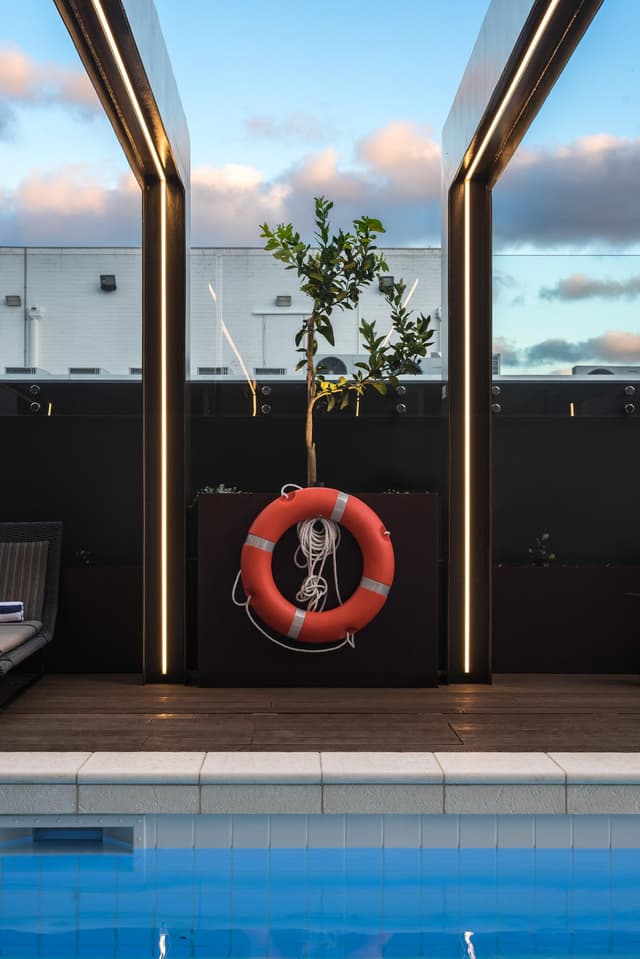

Jackalope HotelMelbourne, Australia
Queensland Museum 4.jpeg
Queensland MuseumBrisbane, Australia
Hallmarc Office_UNIOS20190826_9_257_Collins_Street_334.jpeg
Hallmarc OfficeMelbourne, Australia
UN_DoubleTree Northbridge-14.jpeg

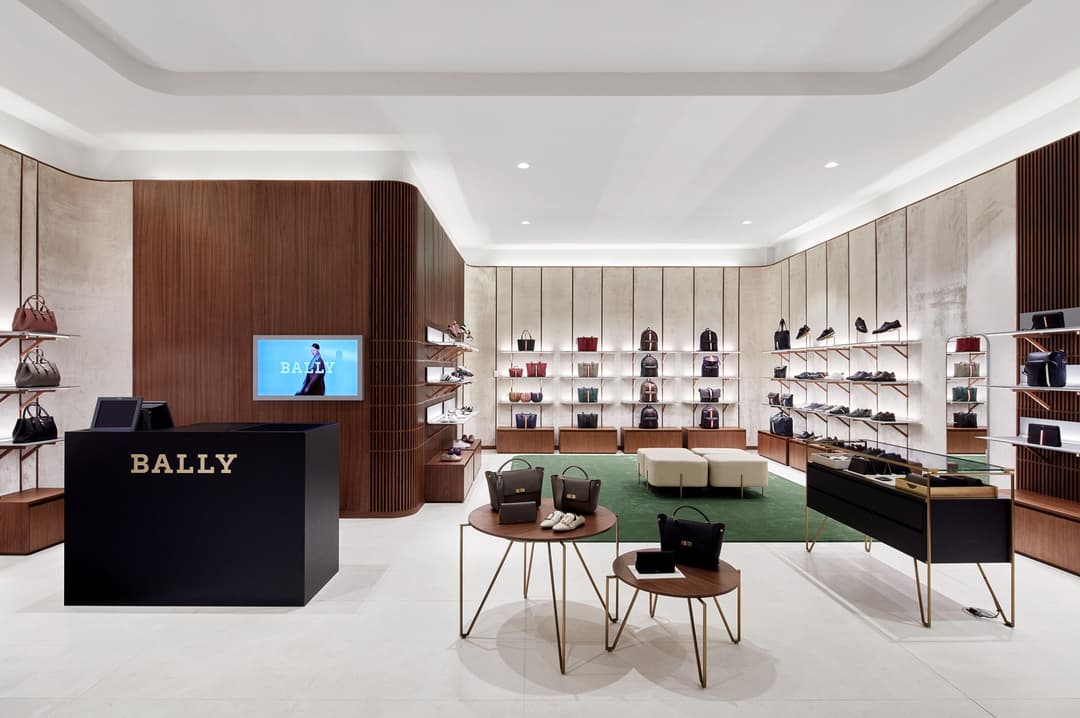

Bally StoreMelbourne, Australia
Built HeadquartersSydney, Australia

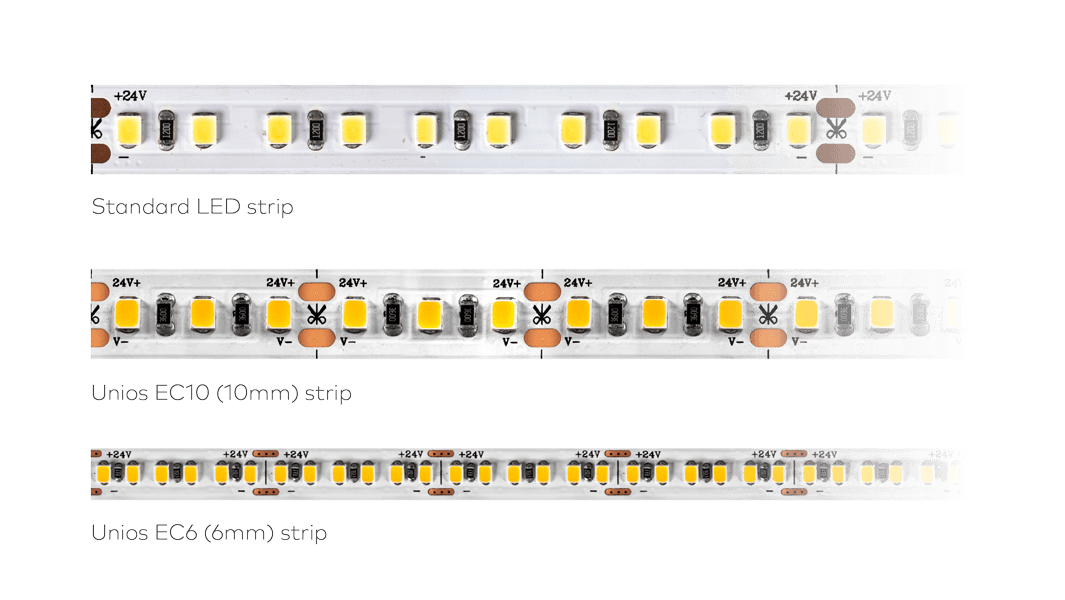

Providing dot-free illumination with high density, superior quality LED strip

With great uniformity, the Eclipse G2 Glide can be fabricated to suit any application. The EC6 is customisable down to 20mm increments with 300LEDs/m, while the EC10 strip features 120LEDs/m and is customisable down to 25mm increments.

CRI 90+

Designed to maintain the object's natural colour with an outstanding colour performance at CRI 90+.

RGB & RGBW

Create striking lighting effects by producing almost any colour, including true representation of white, with RGBW.

Tunable white

Change colour temperatures throughout the day to assist the natural circadian rhythms with colour-tuning technology.

Perfect for

Perfect For - Hospitality.jpeg
Hospitality
