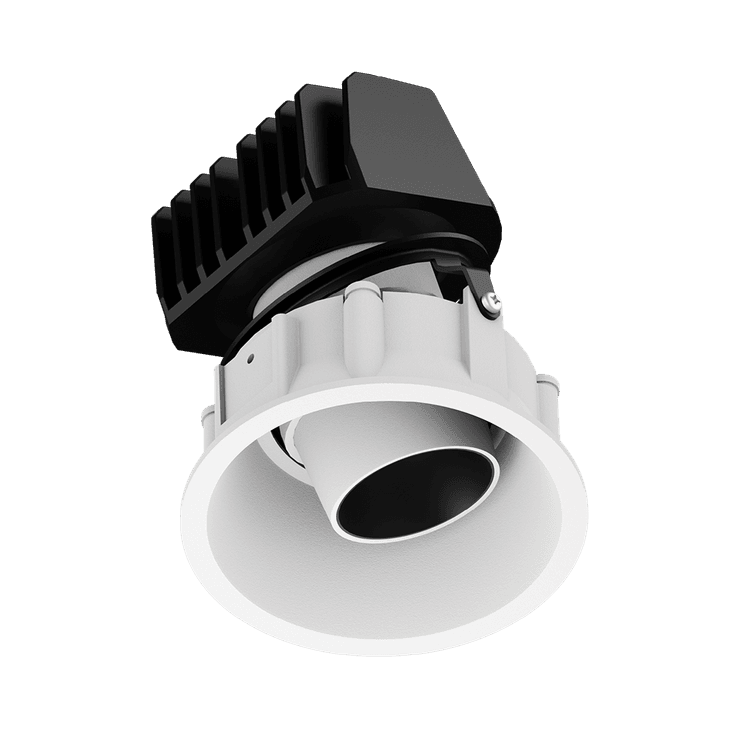

ION R Adjustable Downlight
The ION R Adjustable Downlight offers directional flexibility of up to 355° rotation and 30° tilt, making it ideal for illuminating spaces with vaulted, pitched or raked ceilings, or highlighting objects on the vertical without obstructions.
Part of the ION R collection
Available Models
Micro (43mm)
- LED Power:Up to 3W
- Lumens:Up to 203lm
- Beam:6° | 15° | 36° | 40°
Mini (60mm)
- LED Power:Up to 8W
- Lumens:Up to 528lm
- Beam:8° | 20° | 38° | 50°
Small (89mm)
- LED Power:Up to 7W
- Lumens:Up to 741lm
- Beam:12° | 30° | 50°
Medium (103mm)
- LED Power:Up to 13W
- Lumens:Up to 1351lm
- Beam:22° | 40° | 60°
Large (142mm)
- LED Power:Up to 29W
- Lumens:Up to 3100lm
- Beam:30° | 45° | 60°
Specifications
Finishes
- Textured Black/Black
- Textured Black/Gold
- Textured Black/Metallic
- Textured Black/White
- Textured White/Black
- Textured White/Gold
- Textured White/Metallic
- Textured White/White
Colour rendering index (CRI)
- 90+
- 92+
Colour temperature
- 2700K
- 3000K
- 4000K
IP rating
- IP54
Efficacy
- Up to
106.90lm/W
Control
- Casambi Bluetooth
- DALI
- Phase-cut dimmable
- Phase Pulse
SDCM
- ≤2
- ≤3
LED Lifetime
- >108,000h L90B10
- >31,000h L90B10
- >55,000h L90B10
Materials
- Powder Coated Aluminium
Primary Optics
- Honeycomb Louvre
- Linear Lens
- Softening Diffuser
Unified Glare Rating
- <10
- <13
- <16
- <19
- <22
Warranty
- 5 Years
Class
- Class II
Tilt
- 25°
- 30°
Rotation
- 355°
Resources

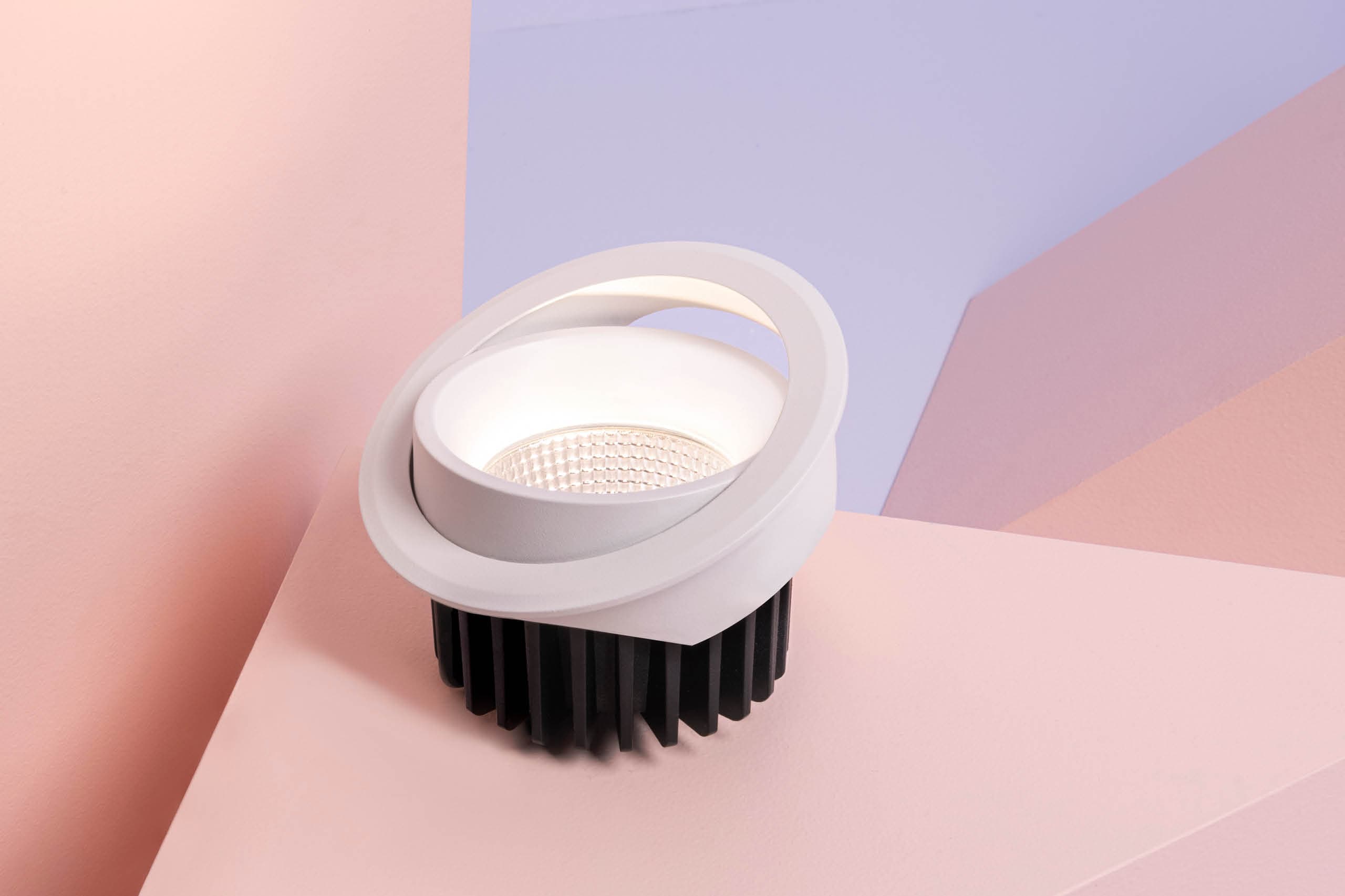

ION R
Part of the award-winning ION Collection, the ION R reimagines the downlight experience with modularity, making lighting easier for everyone, from our industry professionals and contractors to end-users.
See the collection
A modular future of lighting
The ION R Series is designed from the ground up with a fully integrated optical system, engineered to work as one unified unit. With modularity at its core, interchangeable components enable faster lead times, on-site flexibility, and more sustainable production.
Low glare
Ensures minimal glare even when performing at high output for maximum visual comfort.COI compliance
Specific models are compliant with the Cyanosis Observation Index, suitable for visual detection of cyanosis in healthcare applications.Tunable white
Change colour temperatures throughout the day to assist the natural circadian rhythms with colour-tuning technology.
Precision, no matter the angle.
From a 6º to 50º beam, the ION R lens uses internal reflection to precisely control light, focusing over 80% on the target.
Tiny. Mighty.
With the ION R Mini and Micro hide the light source, keep the ceiling space minimal while delivering great output and precision.

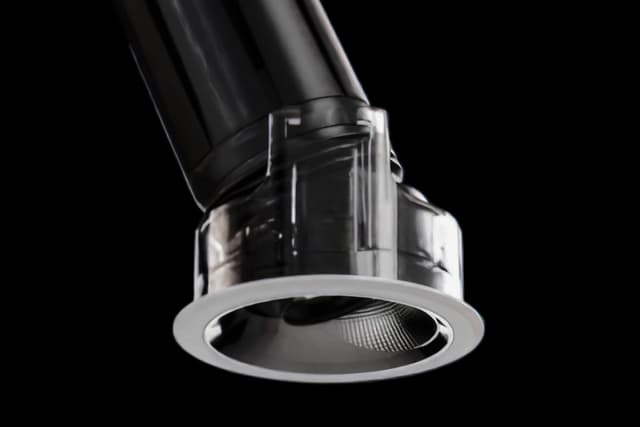

Perfect Tilt
Tiltable at 25-30º with minimal obstruction to the beam, ideal for vaulted ceilings, lighting verticals or ever-changing spaces.

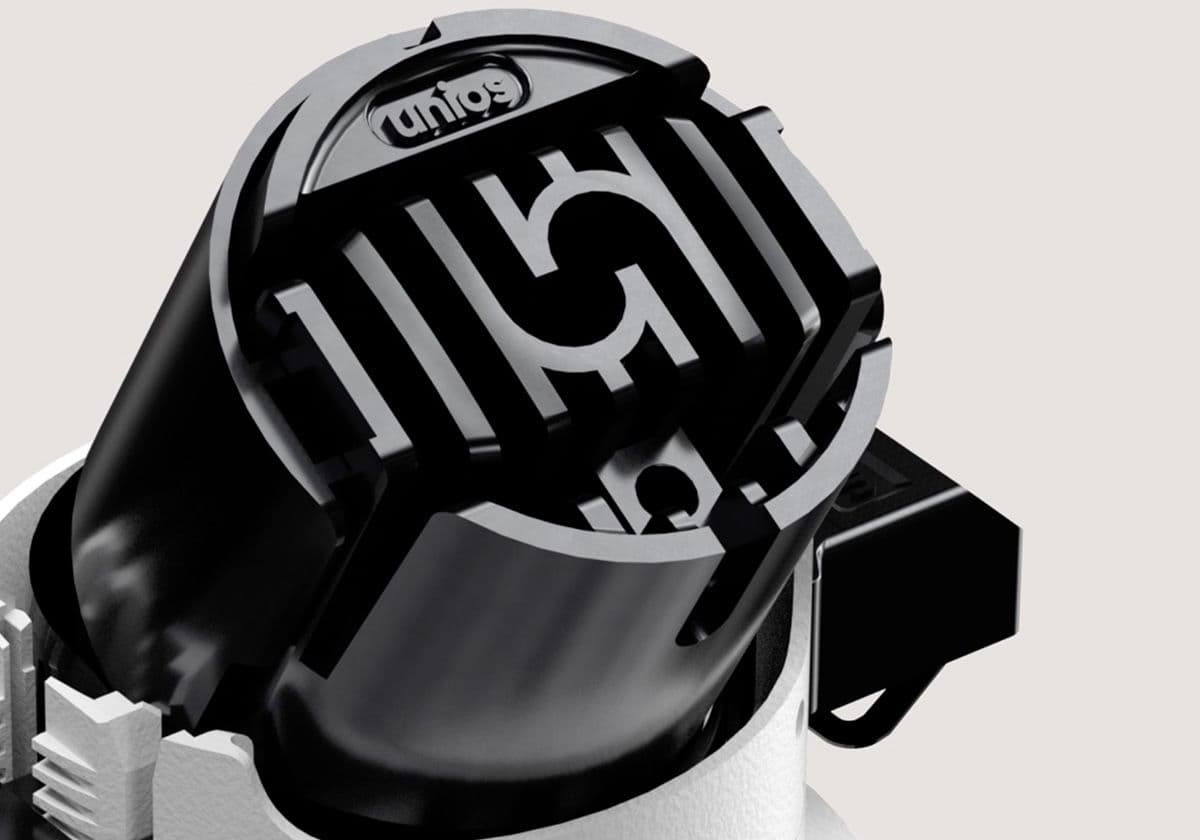

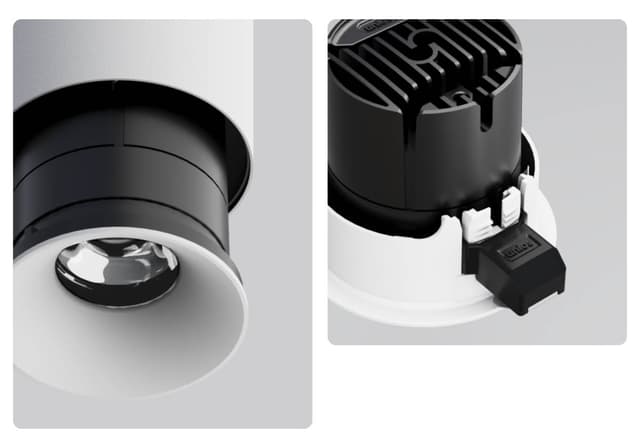

Simple Installation.
All ION R drivers fit within the recessed cut-out, while the built-in clips and ball-bearing system make securing and installing the fixture effortless.

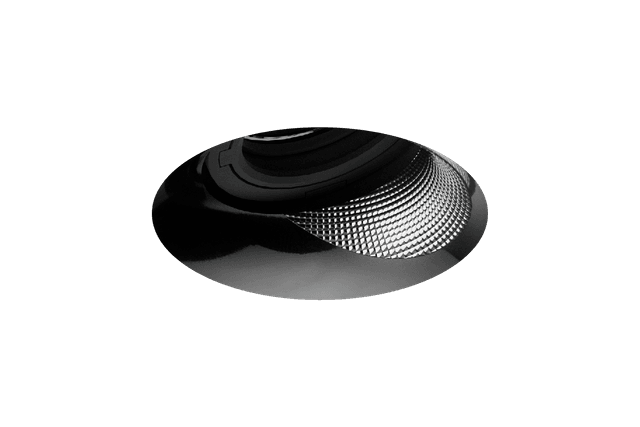

All for Comfort.
With its Comfort Mesh texture, deep-set LED chip, Stealth Metallic Baffle, and Honeycomb Louvre, the ION R Adjustable is designed for better visual comfort.
A modular design enables local assembly of your final configuration, ready for delivery within five business days.
