New
ION R Trimless Downlight
Transform compatible ION R models into single or double trimless downlights, designed to deliver an unobtrusive and minimal ceiling aesthetic.
Part of the ION R collection
Available Models
Mini Accent (60mm)
- LED Power:Up to 8W
- Lumens:Up to 504lm
- Beam:8° | 20° | 38°

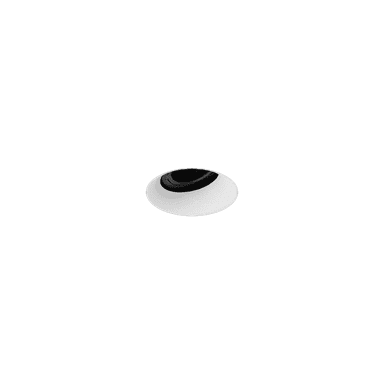

Mini (60mm)
- LED Power:Up to 8W
- Lumens:Up to 528lm
- Beam:8° | 20° | 38° | 50°

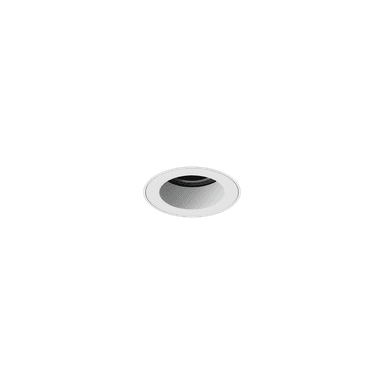

Mini Focus (60mm)
- LED Power:Up to 8W
- Lumens:Up to 528lm
- Beam:8° | 20° | 38° | 50°
Small Focus (89mm)
- LED Power:Up to 7W
- Lumens:Up to 631lm
- Beam:12° | 30°
Small Accent (89mm)
- LED Power:Up to 7W
- Lumens:Up to 648lm
- Beam:12° | 30°

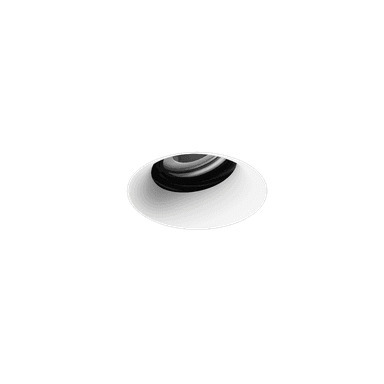

Small Adjustable (89mm)
- LED Power:Up to 7W
- Lumens:Up to 706lm
- Beam:12° | 30° | 50°
Small (89mm)
- LED Power:Up to 11W
- Lumens:Up to 1226lm
- Beam:22° | 40° | 60°

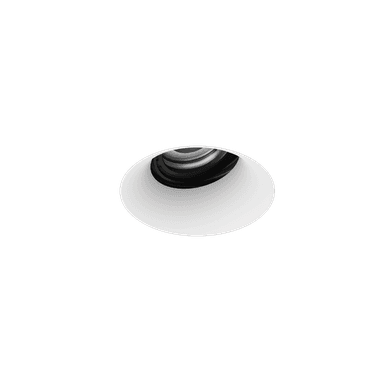

Medium Adjustable (103mm)
- LED Power:Up to 13W
- Lumens:Up to 1351lm
- Beam:22° | 40° | 60°

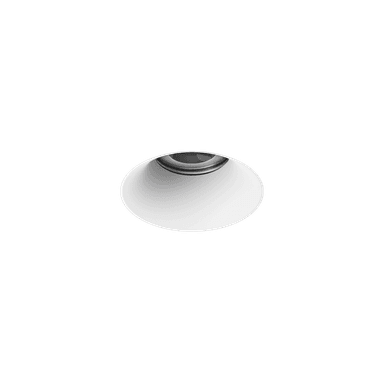

Medium (103mm)
- LED Power:Up to 15W
- Lumens:Up to 1656lm
- Beam:22° | 40° | 60°
Specifications
Finishes
- Trimless/Black
- Trimless/Gold
- Trimless/Metallic
- Trimless/White
Colour rendering index (CRI)
- 90+
- 92+
Colour temperature
- 2700K
- 3000K
- 4000K
IP rating
- IP54
Efficacy
- Up to
110.40lm/W
Control
- Casambi Bluetooth
- DALI
- Phase-cut dimmable
- Phase Pulse
SDCM
- ≤2
- ≤3
LED Lifetime
- >108,000h L90B10
- >55,000h L90B10
Materials
- Powder Coated Aluminium
Primary Optics
- Asymmetric Wallwasher
- Honeycomb Louvre
- Linear Lens
- Softening Diffuser
Unified Glare Rating
- <10
- <13
- <16
- <19
Warranty
- 5 Years
Class
- Class II
Tilt
- 25°
- 30°
Rotation
- 355°
ION R
Part of the award-winning ION Collection, the ION R reimagines the downlight experience with modularity, making lighting easier for everyone, from our industry professionals and contractors to end-users.
See the collection
A modular future of lighting

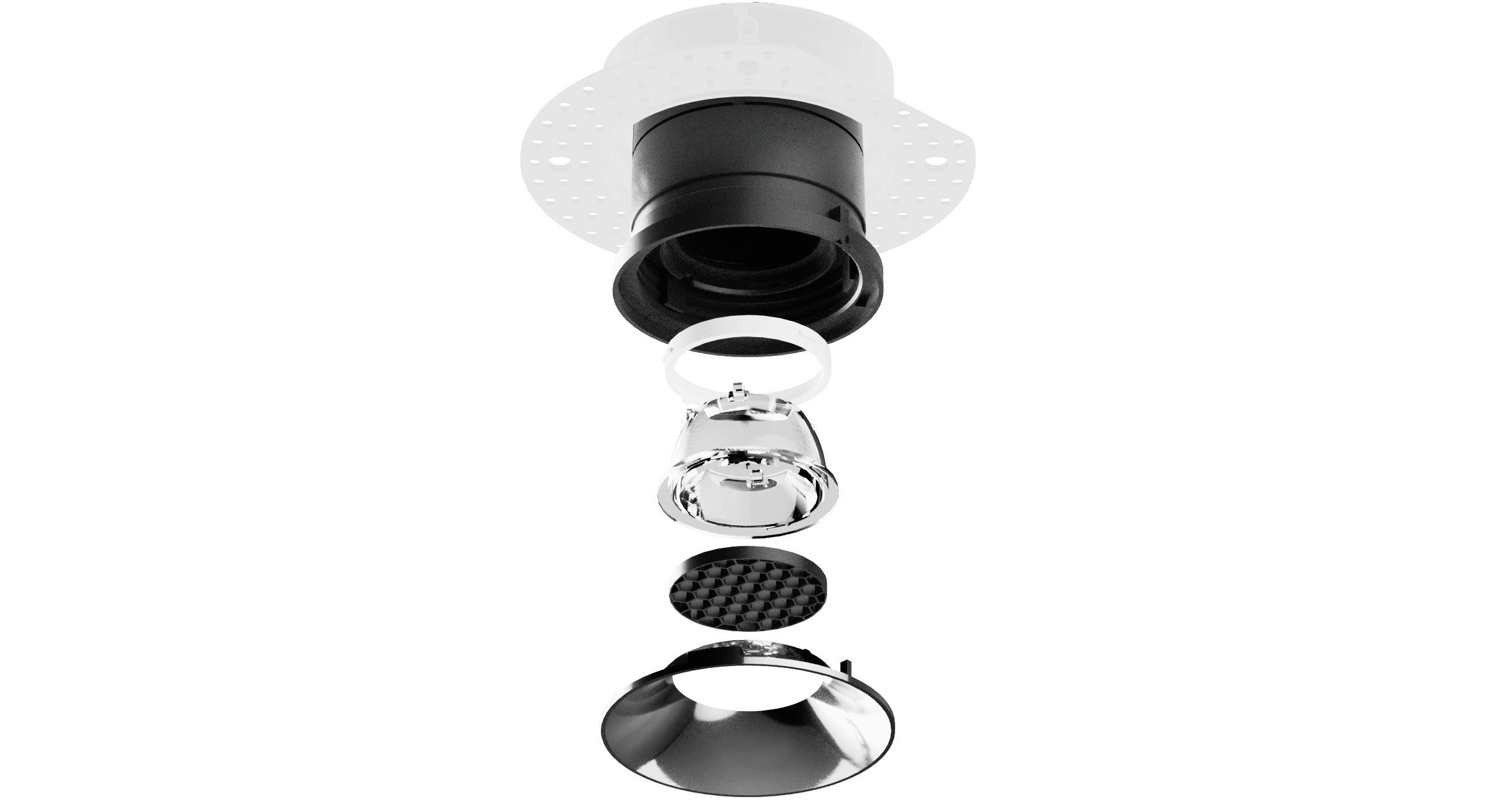

The ION R Series is designed from the ground up with a fully integrated optical system, engineered to work as one unified unit. With modularity at its core, interchangeable components enable faster lead times, on-site flexibility, and more sustainable production.
Low glare
Ensures minimal glare even when performing at high output for maximum visual comfort.COI compliance
Specific models are compliant with the Cyanosis Observation Index, suitable for visual detection of cyanosis in healthcare applications.Tunable white
Change colour temperatures throughout the day to assist the natural circadian rhythms with colour-tuning technology.
Precision, no matter the angle.
From a 6º to 50º beam, the ION R lens uses internal reflection to precisely control light, focusing over 80% on the target.

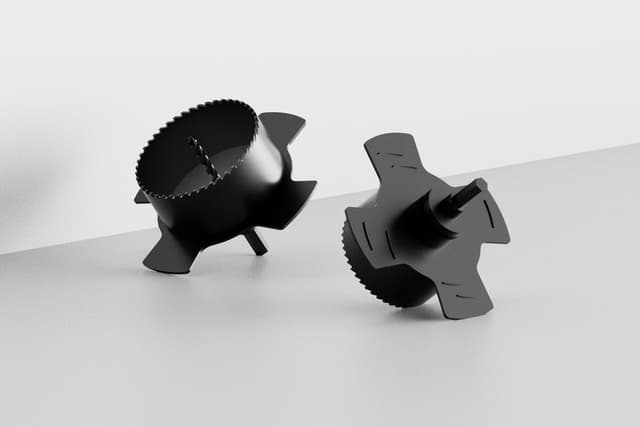

Trimless Holesaw Kit
A specialised installation kit designed for flush, trimless single or double fittings, ensuring a clean and seamless finished surface.
ION R Adjustable
Offering directional flexibility with a tilt of up to 30°, the ION R Adjustable is ideal for projects with vaulted ceilings or for highlighting objects of interest.
Focus and Accent
The ION R Focus creates precise pinspot lighting, while the Accent illuminates vertical surfaces, both designed to keep the light source hidden from view.
Tiny. Mighty.
With the ION R Mini and Micro hide the light source, keep the ceiling space minimal while delivering great output and precision.
