ION R Focus Downlight
Configure
In-situ
Product preview
Loading

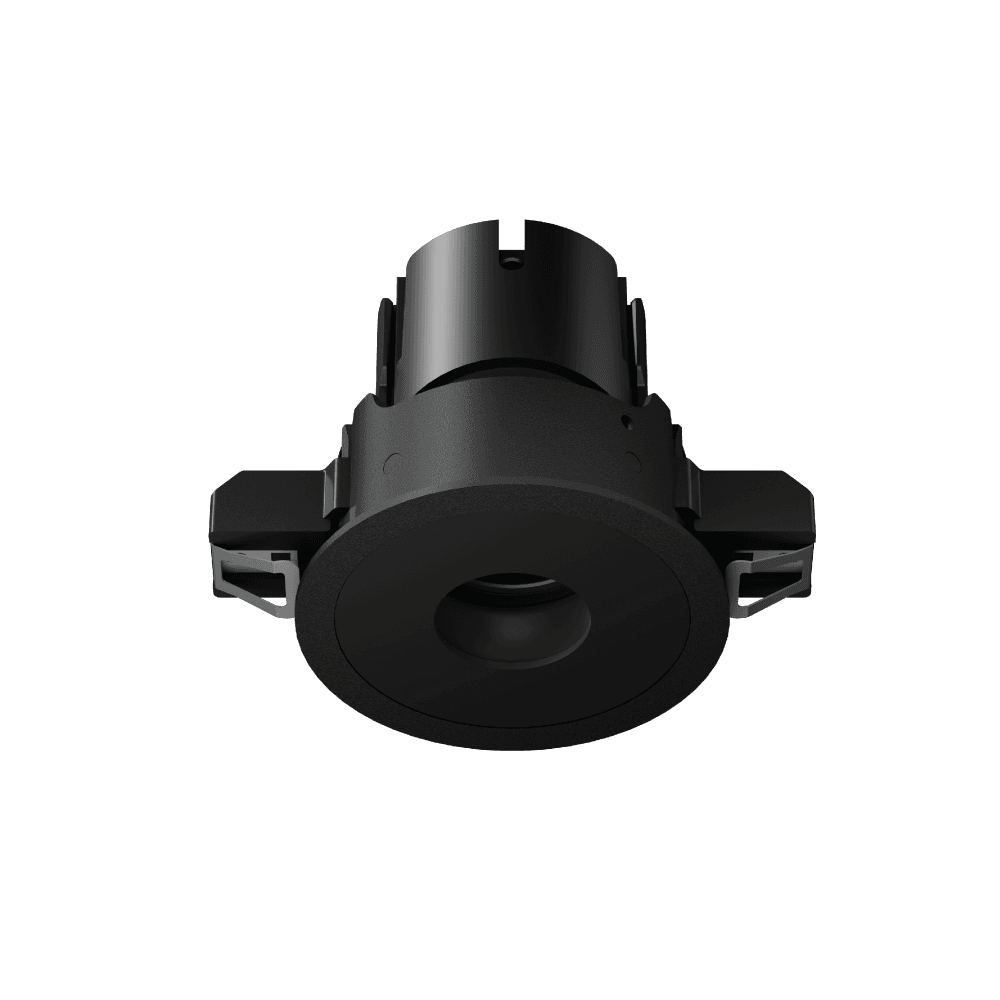

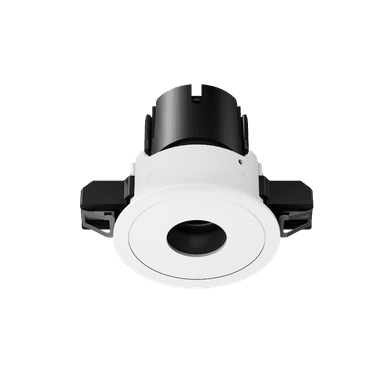

ION R Focus Downlight

With a small aperture and low glare, the ION R Focus Downlight is an immaculate near-invisible light source that blends seamlessly into the ceiling while offering precise spotlighting or a moody ambience for applications requiring it.

Part of the ION R collection

Please check availability with your Unios distributor
Configure
Product Summary

Available Models

Image not found

Focus (89mm)

  • LED Power:Up to 7W
  • Lumens:Up to 685lm
  • Beam:12° | 30° | 50°
Configure

Specifications

Finishes

  • Textured Black/Black
  • Textured White/White

Colour rendering index (CRI)

  • 92+

Colour temperature

  • 2700K
  • 3000K
  • 4000K

IP rating

  • IP54

Efficacy

  • Up to
    97.86lm/W

Control

  • Casambi Bluetooth
  • DALI
  • Phase-cut dimmable
  • Phase Pulse

SDCM

  • 2

LED Lifetime

  • >55,000h L90B10

Materials

  • Powder Coated Aluminium

Primary Optics

  • Honeycomb Louvre
  • Linear Lens
  • Softening Diffuser

Unified Glare Rating

  • <10
  • <13

Warranty

  • 5 Years

Class

  • Class II

Tilt

  • 25°

Rotation

  • 355°

Resources

ION R Focus DownlightInstallation InstructionsPDF 1.6 MB
ION R-Hotspot.png

A modular future of lighting

Explore true modularity with the ION R Series, where installation becomes effortless with the built-in ball-bearing and clip system. Able to function seamlessly when interchanged between models using the same engine, trust this downlight range to meet your every lighting intent.


One Series. Infinite Possibilities

As part of the ION Collection, the ION R Focus Downlight comes with an extensive range of accessories to suit the specified lighting requirements.

Low glare

Ensures minimal glare even when performing at high output for maximum visual comfort.

COI compliance

Specific models are compliant with the Cyanosis Observation Index, suitable for visual detection of cyanosis in healthcare applications.

Tunable white

Change colour temperatures throughout the day to assist the natural circadian rhythms with colour-tuning technology.
ION R-Feature3.jpg

Reimagining the downlight experience

Resulting from years of deeply understanding customer needs, the ION R Series is designed to meet every lighting requirement, balancing universality, form, function and performance.

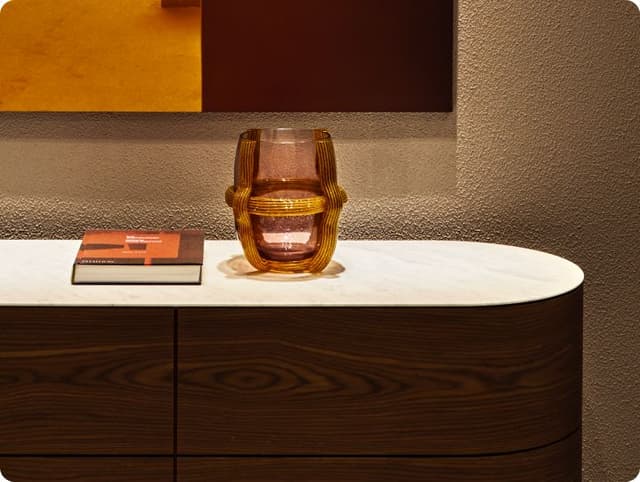

Pinspot precision

Direct the light exactly where needed to spotlight objects of interest with high optical accuracy and extremely low glare.


A near-invisible light source

Designed to deliver the most concealed light source, the luminaire is engineered to minimise light reflection within the light fitting and be as invisible as possible within any space.

ION R-Feature.jpg

Lighting simplified

Designed to support quick installation and interchangeability between models using the same engine, the ION R Series marks Unios' next step to making lighting more simple, fuss-free and easier for everyone.


Crafted in Australia

Our Crafted in Australia products are hand-assembled by Australian lighting fabricators to allow for customisations ranging from beam angles and optics to finishes and fascias.

CRI 92+

Designed to maintain the object's natural colour with an outstanding colour performance at CRI 92+.

Lasting lifetime

Offers a lasting lifetime and ensures the specified luminaire's performance is consistent until the end of the service life.

SDCM≤2

Meets the industry's highest colour consistency standard in LED lighting for assured colour consistency over the product's operational lifetime.

Perfect for

Perfect For - Public Spaces.jpeg
Public Spaces
