LX Infinity Indirect Linear Light

Best suited to projects with generous ceiling heights, suspend the LX Infinity Indirect with a rod or wire to create a gentle glow of light on the ceiling. Combine the six fundamental shapes to create up to 50m of striking geometric installation - with zero light leakage. Try the LX Configurator.

Part of the LX Infinity collection

Custom Configure
Product Summary

Available Models

Honeycomb

  • LED Power:Up to 33W/m
  • Lumens:Up to 3642lm/m
  • Beam:80° | 100°

Prismatic

  • LED Power:Up to 33W/m
  • Lumens:Up to 3894lm/m
  • Beam:90° | 100°

Baffle

  • LED Power:Up to 33W/m
  • Lumens:Up to 3922lm/m
  • Beam:100°

Louvre

  • LED Power:Up to 33W/m
  • Lumens:Up to 4015lm/m
  • Beam:90° | 100°

Opal

  • LED Power:Up to 33W/m
  • Lumens:Up to 4180lm/m
  • Beam:100°

Wallwasher

  • LED Power:Up to 33W/m
  • Lumens:Up to 4501lm/m
  • Beam:50° | 100°

Direct Lens

  • LED Power:Up to 33W/m
  • Lumens:Up to 4710lm/m
  • Beam:60° | 100°

Specifications

Finishes

  • Textured Black
  • Textured Black/White
  • Textured White
  • Textured White/Black

Colour rendering index (CRI)

  • 80+

Colour temperature

  • 2700K
  • 2700K-6500K
  • 3000K
  • 4000K

IP rating

  • IP40

Efficacy

  • Up to
    142.73lm/W

Control

  • DALI
  • Non-dim

SDCM

  • 3

LED Lifetime

  • >60,000h L80B10

Materials

  • Powder Coated Aluminium

Unified Glare Rating

  • <10
  • <19
  • <22

Warranty

  • 5 Years

Class

  • Class I

Resources

LX Infinity Indirect Linear Light3D ModelsZIP 10.5 MB

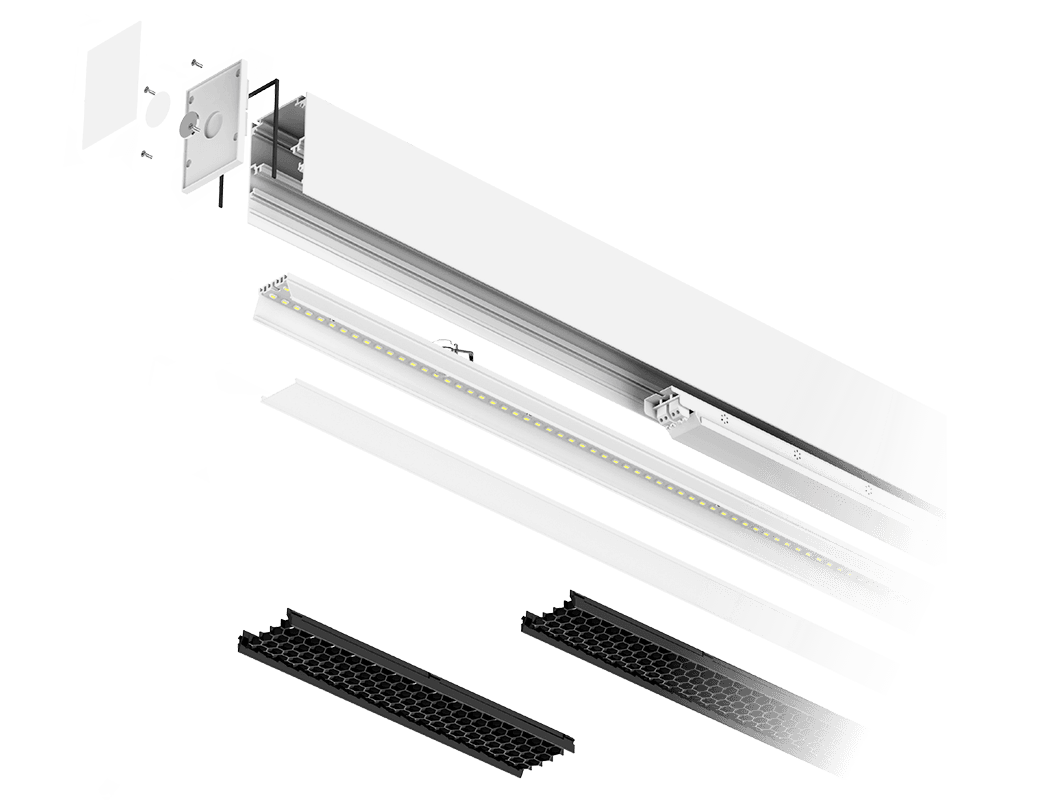

The definitive linear lighting solution

Powered by Tridonic, equipped with Samsung LED boards and configurable through LX Configurator, the range represents a new generation of tailor-made linear design with superior performance.

Low glare

Ensures minimal glare even when performing at high output for maximum visual comfort.

5-year warranty

With a 5-year warranty, have extra peace of mind when specifying this luminaire for your project.

Lasting lifetime

Offers a lasting lifetime and ensures the specified luminaire's performance is consistent until the end of the service life.
Research Primary School_EBP_Newpol_ResearchPS-9058.jpeg
Research Primary SchoolMelbourne, Australia
ArupPerth, Australia
APABrisbane, Australia
Cumulus Launceston_MAIB_23.jpeg
Launceston OfficeLaunceston, Australia
Seed House_80sugarloaf_160-HDR.jpeg
The Seed HouseSydney, Australia
Hallmarc Office_UNIOS20190826_9_257_Collins_Street_138.jpeg
Hallmarc OfficeMelbourne, Australia

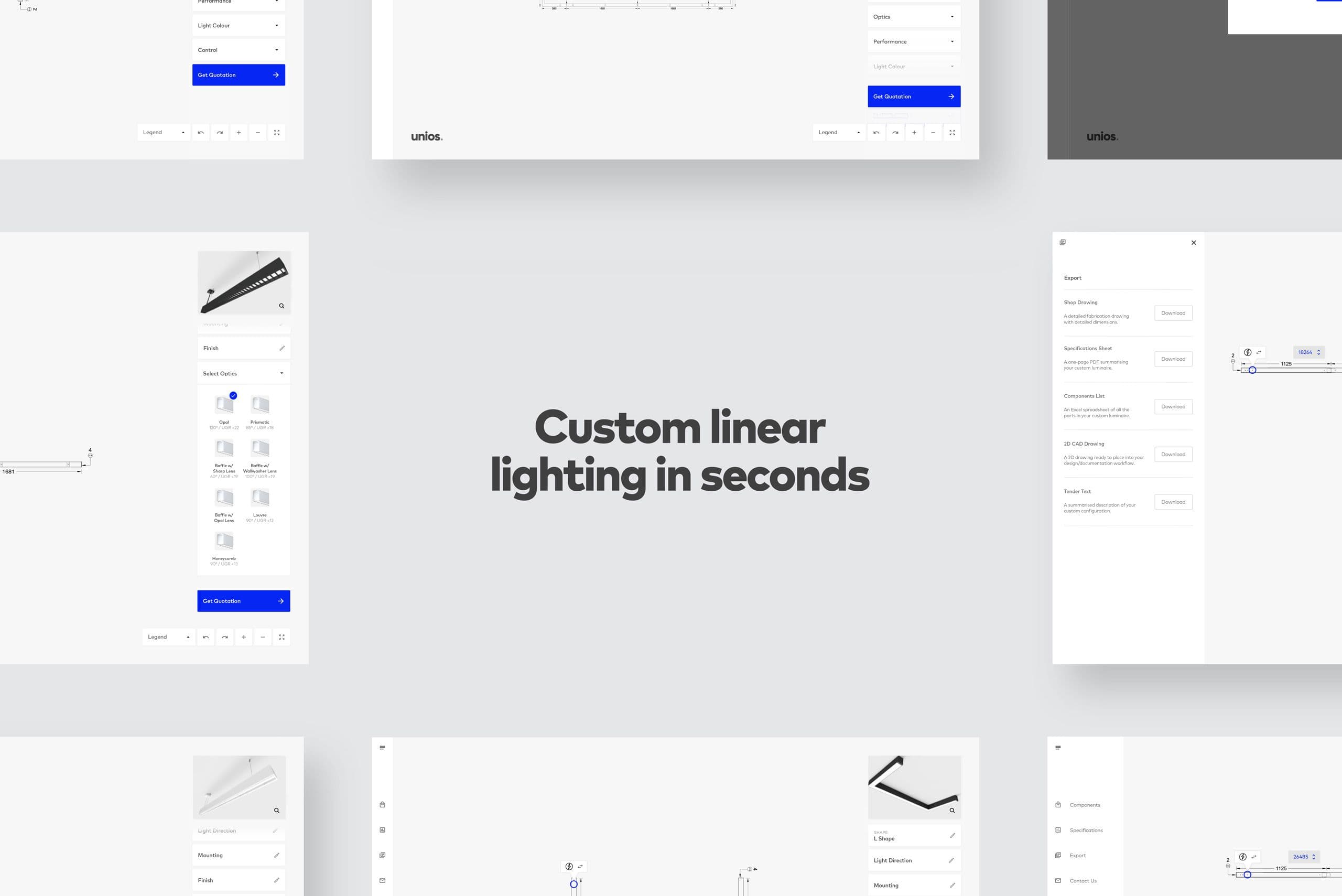

Over 1,000,000 options, configurable in seconds.

Create a tailor-made linear design in seconds with the pioneering digital tool the LX Configurator. Instantaneously generate shop drawings, output consolidated IES files, preview the unique configuration with an exhaustive image library, and receive pricing within 2 business days.

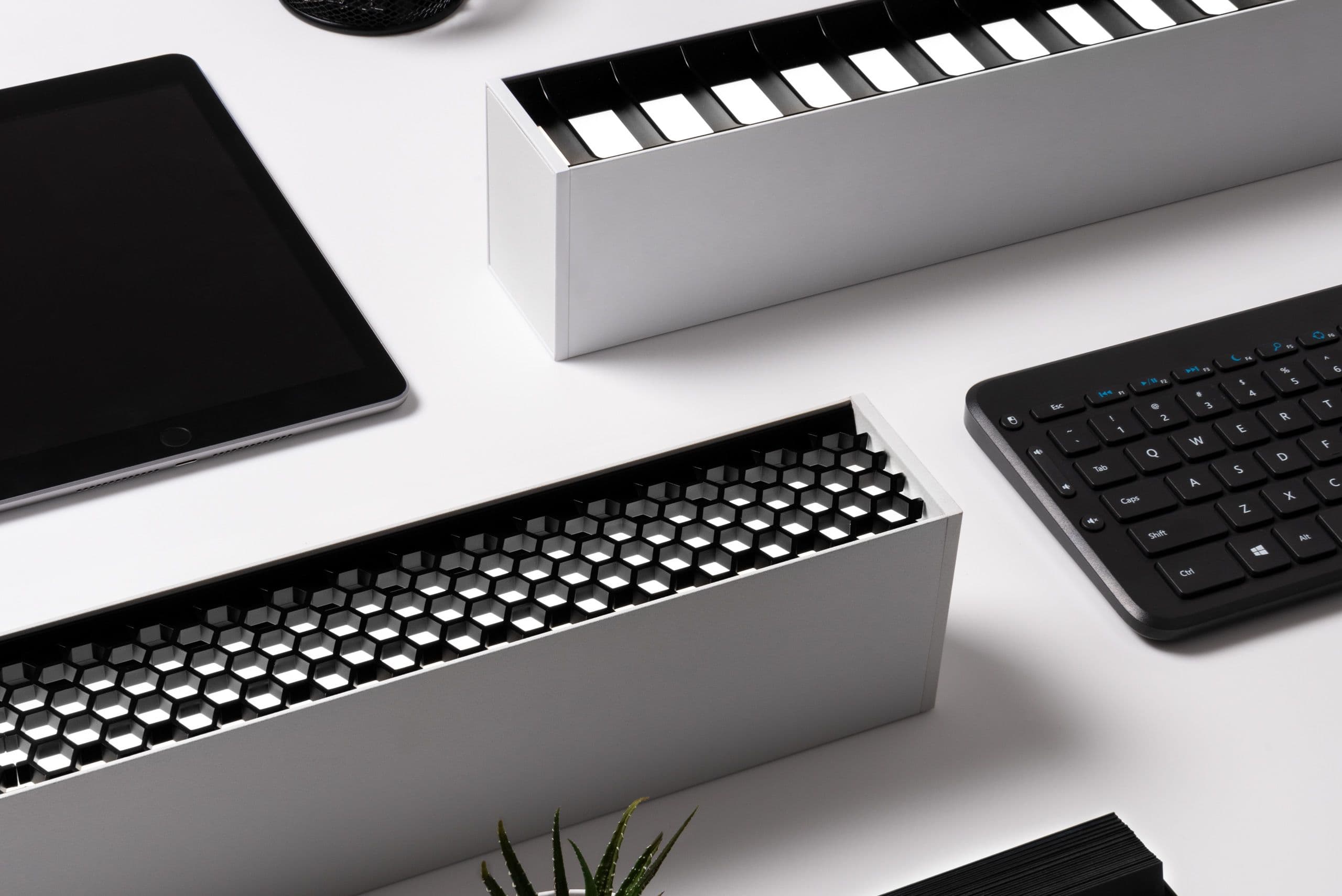

Infinite configurations

As part of the LX Infinity Collection, the LX Infinity Indirect Linear Light is designed for visual comfort and engineered for performance. Configurable with 2 finishes, 4 mounting options, 7 optics and 6 fundamental shapes, the combinations are endless with the LX Infinity Indirect Linear Light.

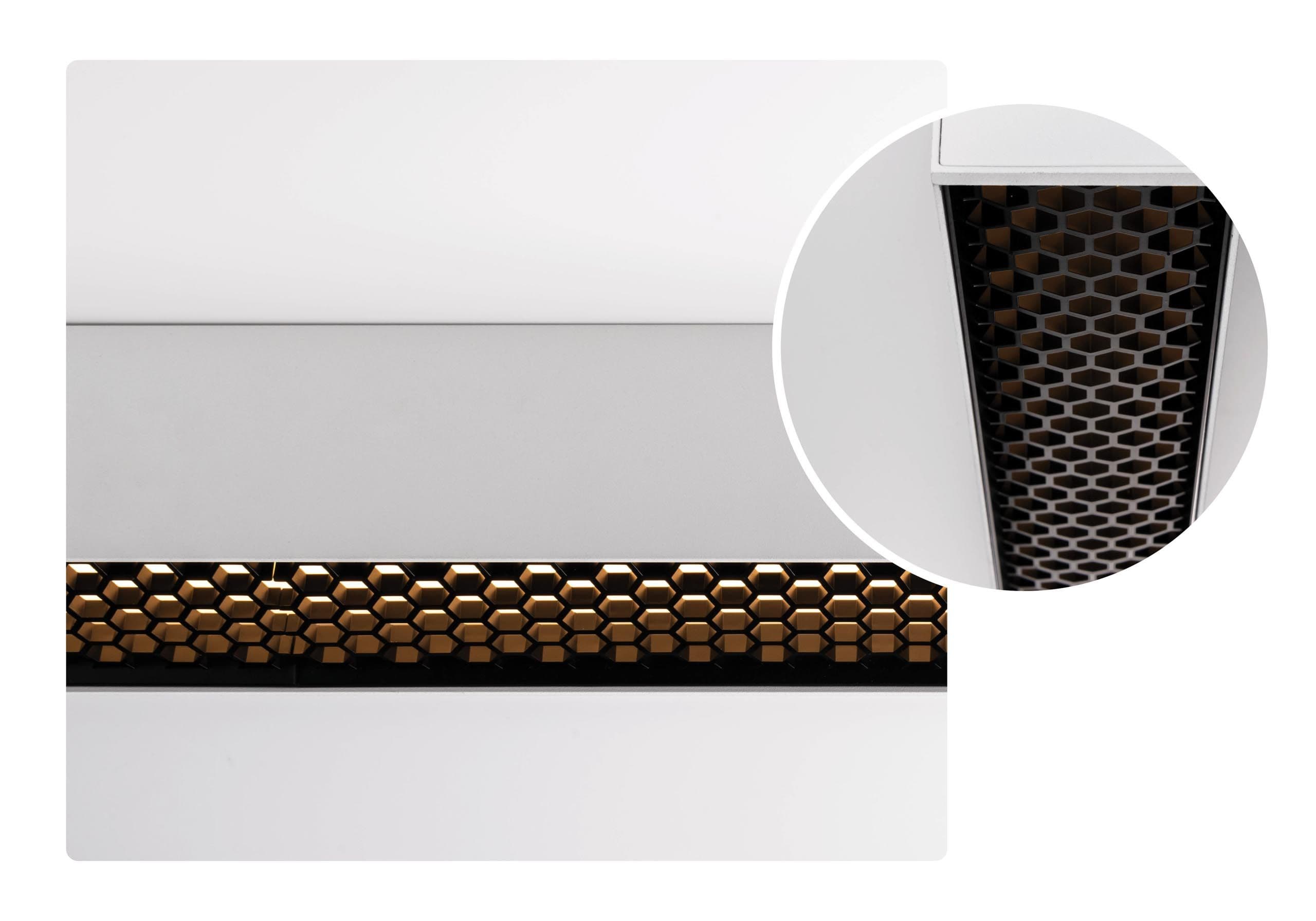

Honeycomb

The distinctive honeycomb optics layer over an opal diffuser to provide a unique aesthetic and reduced glare from all angles.


Louvre

Moulded from polycarbonate, the Louvre optic features spaced louvres layer over an opal diffuser, allowing uninterrupted light distribution with minimised glare.

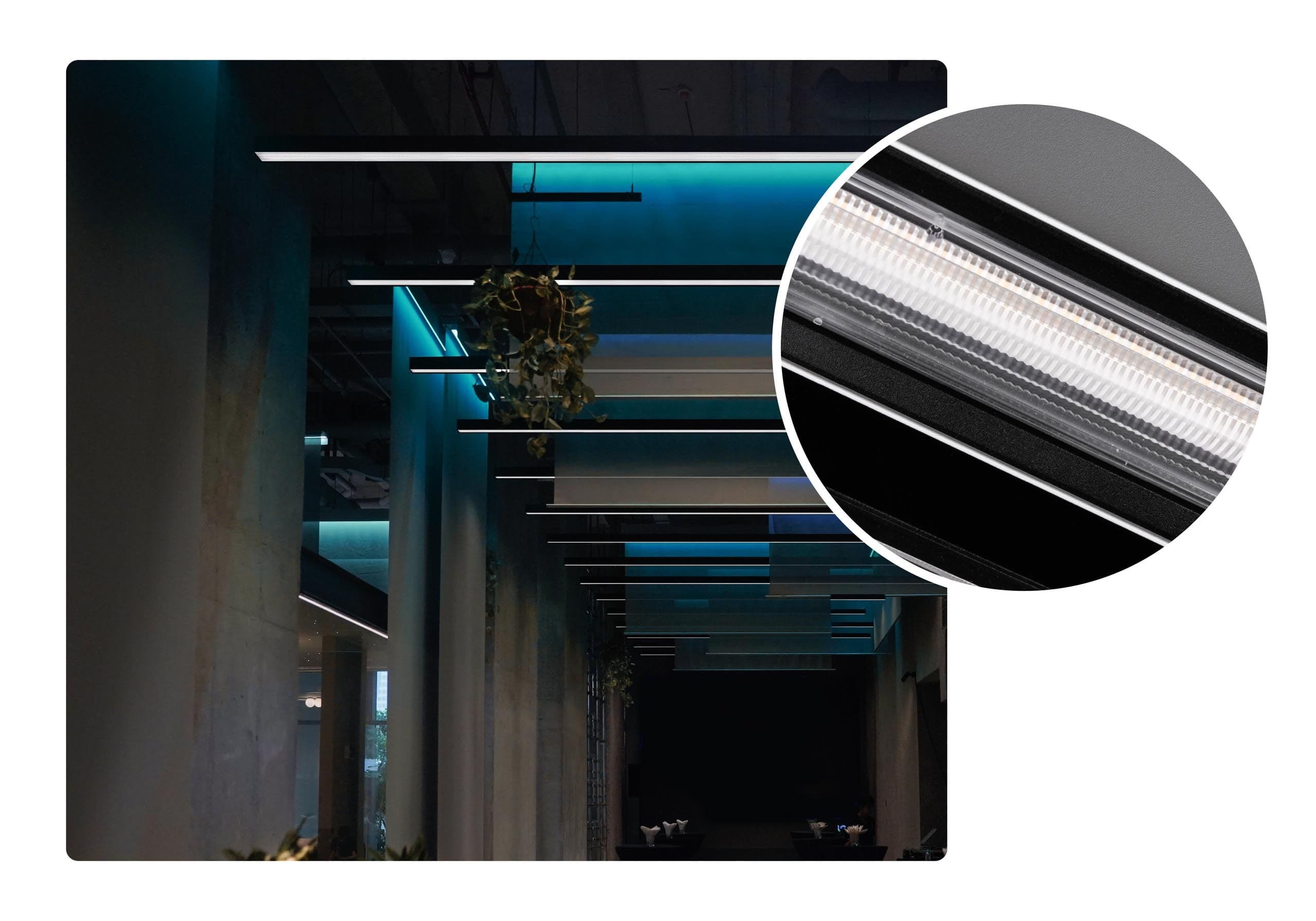

Direct Lens

The precise lens produces a 60° beam for a light source that maximises horizontal illuminance and minimises light spillage.

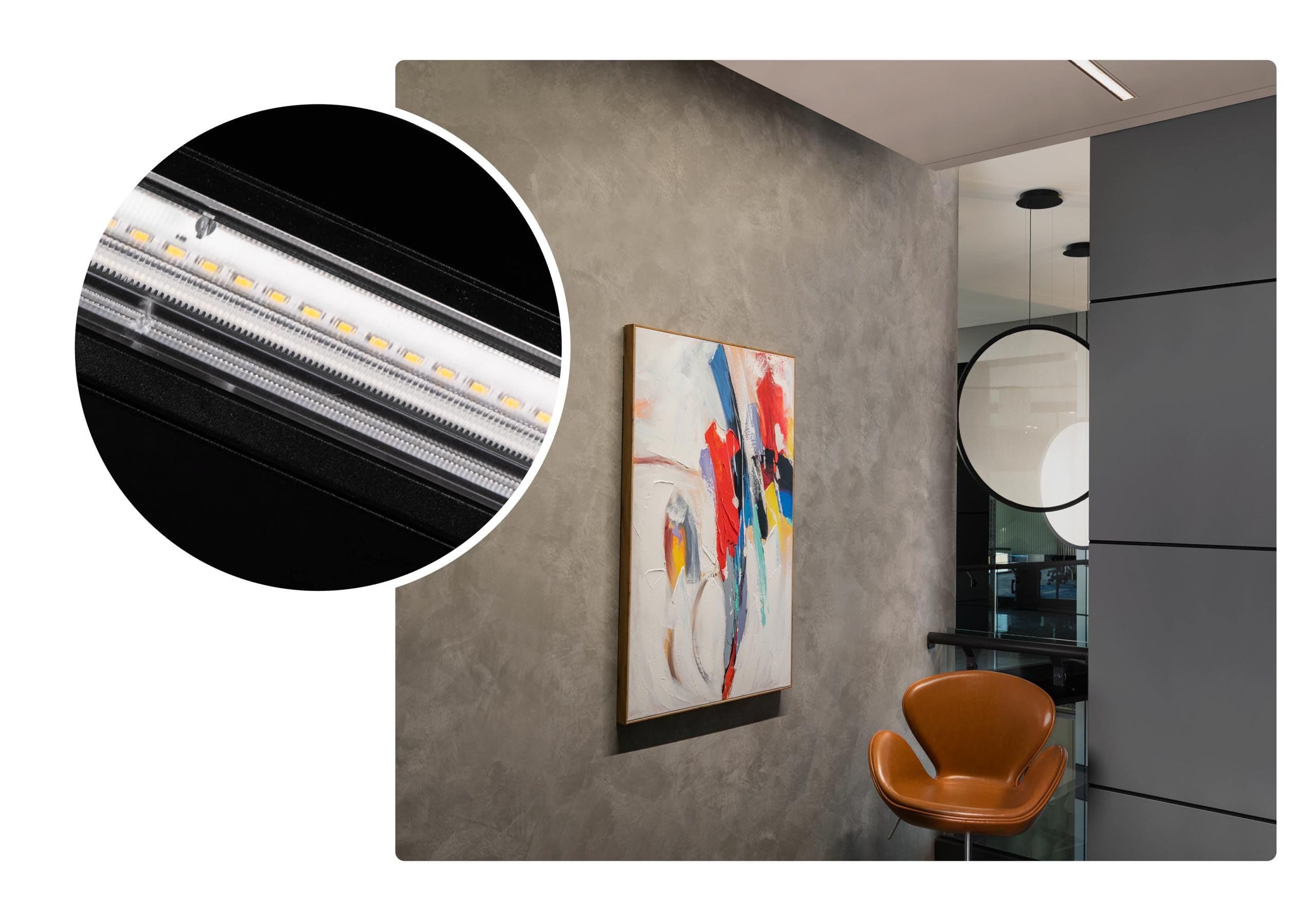

Wallwasher

The wallwasher lens allows the LX Infinity to produce an even and precise 50° beam of asymmetric light distribution when directed toward a wall.

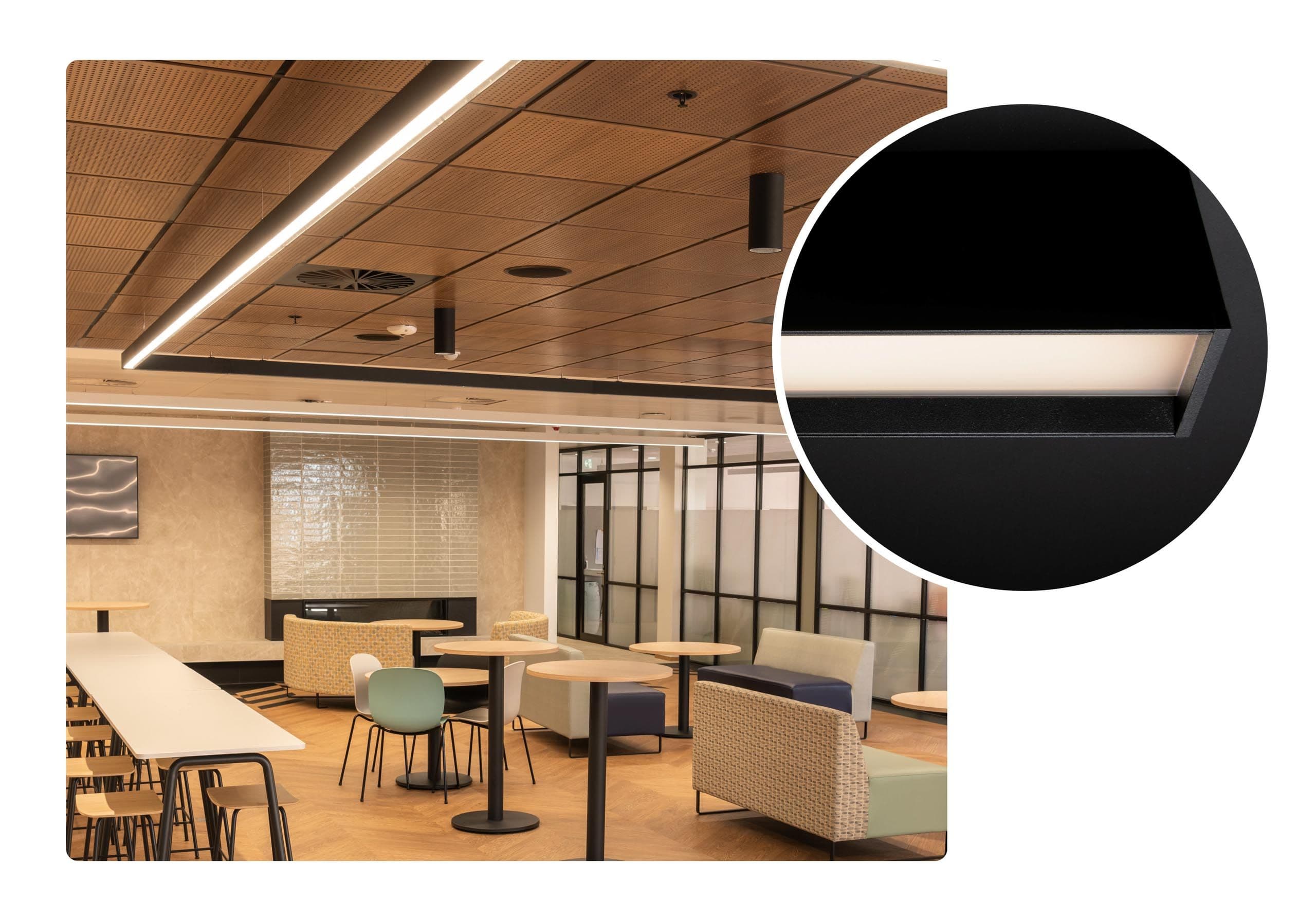

Baffle

As a Signature Optic, the opal diffuser is recessed into the baffle trim, reducing glare by removing direct line of sight.

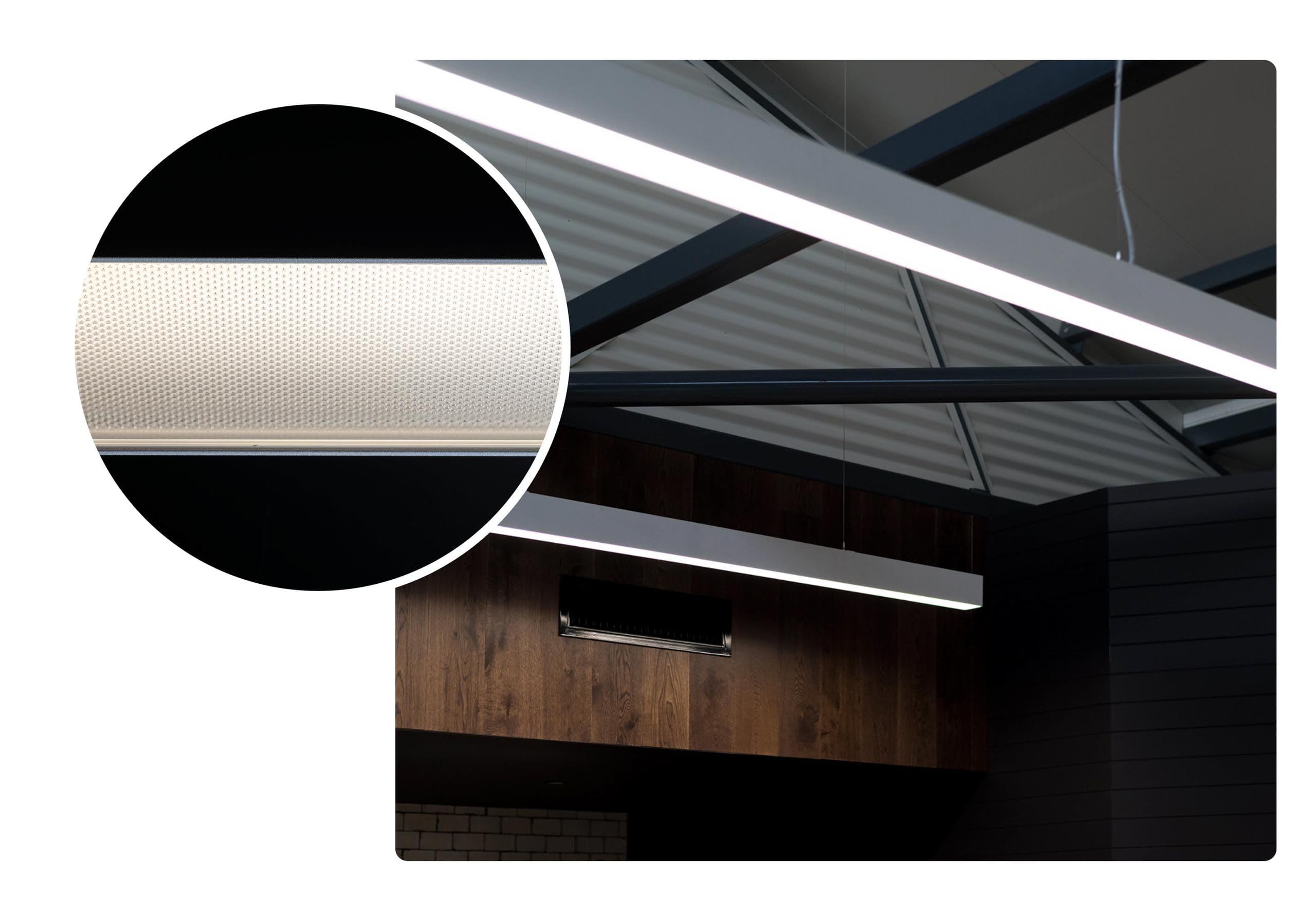

Prismatic

As one of seven optic options, the prismatic optic is a unique three-layer construction that reduces glare and creates a dot-free appearance while providing visual comfort.

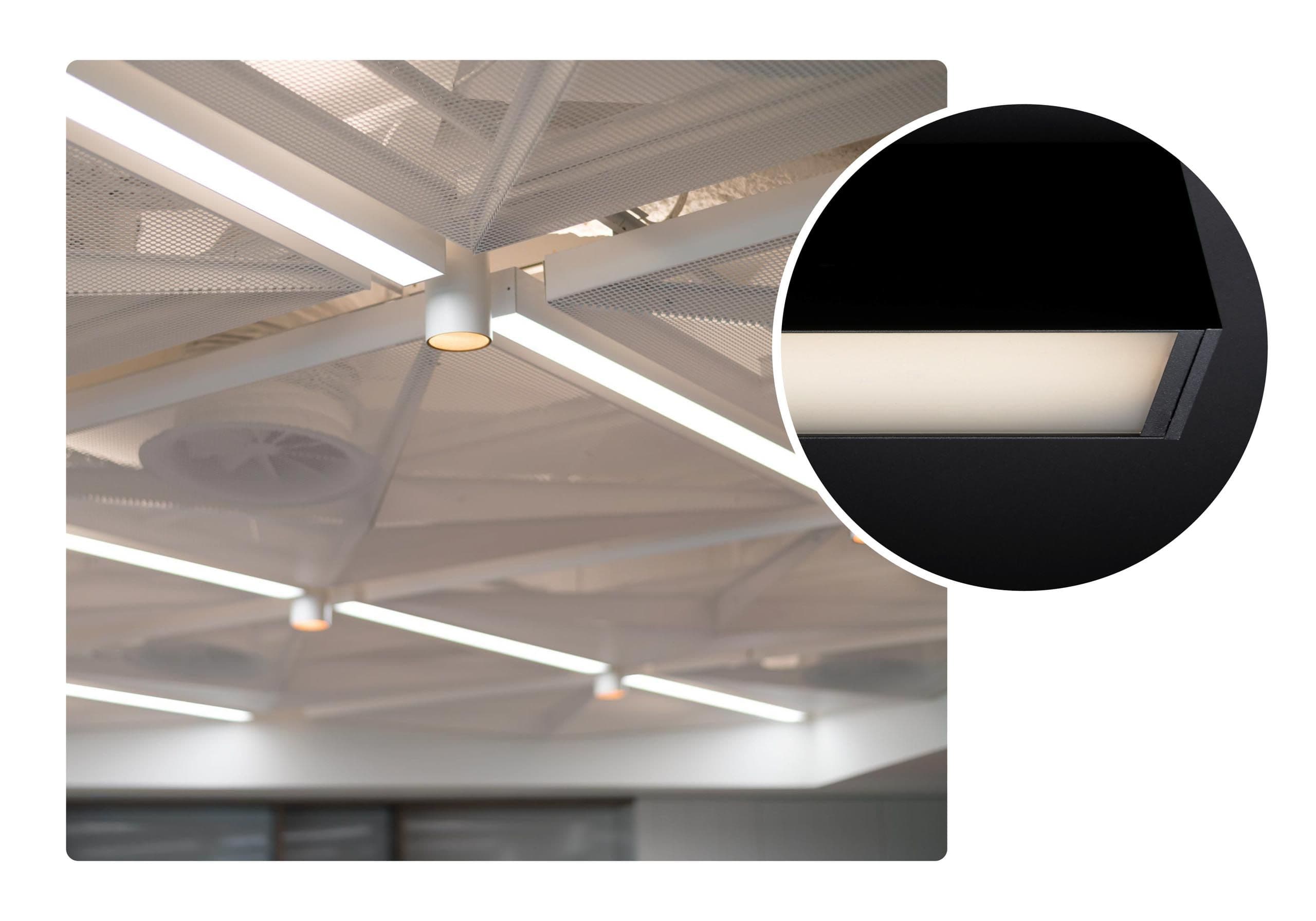

Opal

As one of seven optic options, the classic opal diffuser is recessed into the baffle trim, reducing glare by removing the direct line of sight.


Crafted in Australia

The linear profile is precisely cut to your specification and fabricated with LED strips, optics and leads in our Perth-based facilities, allowing significantly shorter lead times.

Casambi

Pair the luminaire with Casambi Bluetooth for an effortless smart lighting system right in your smart devices.

Tunable white

Change colour temperatures throughout the day to assist the natural circadian rhythms with colour-tuning technology.

Perfect for

Perfect For - Education.jpeg
Education
